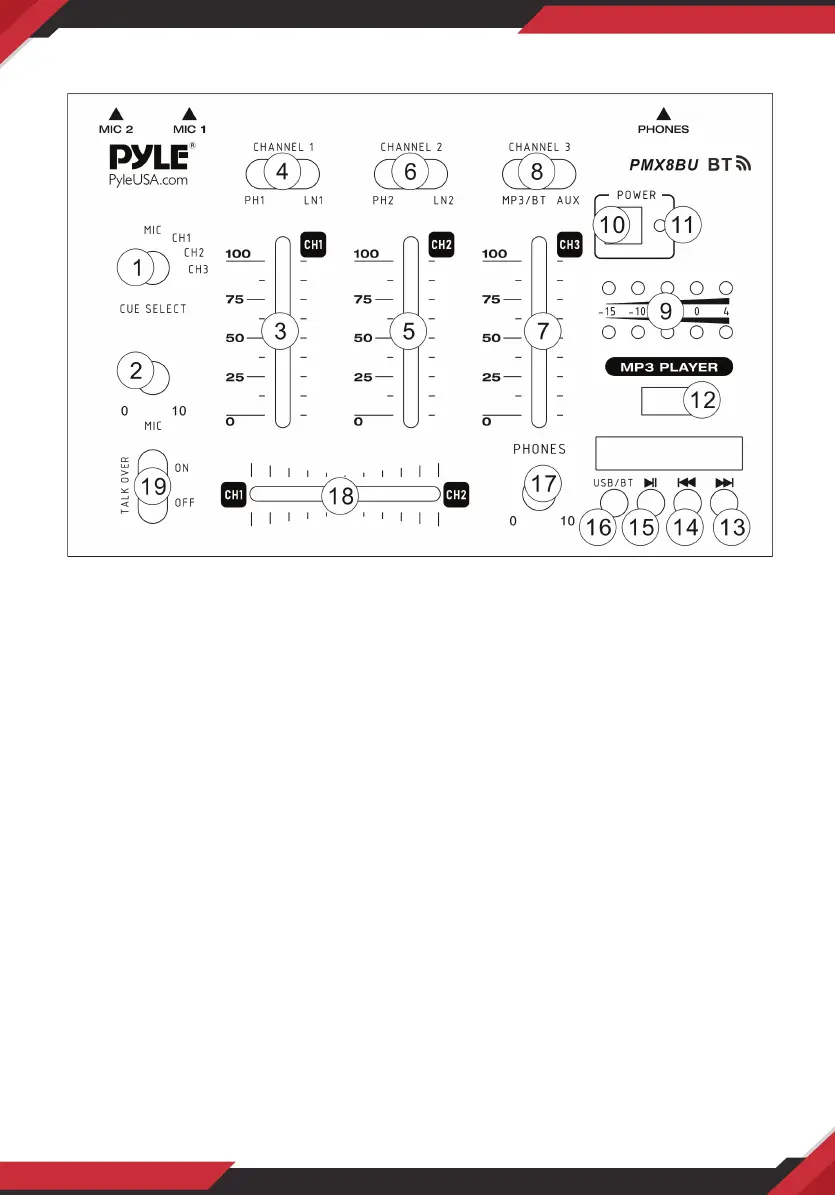

1. FRONT PANEL
1. The CUE SELECT monitoring each channel for MIC, Chanel 1, Channel 2 and
Channel 3.
2. The MIC LEVEL control adjusts the volume of the microphone signal.
3. The CHANNEL 1 fader adjusts the nal channel volume.
4. The PHONO/LINE switch selects one of the input pairs on the respective channel.
The “PH1” setting (and inputs) is intended for turntables; for all other signal sources,
i.e. a CD or MD player, use the “LN1” setting and inputs.
• Never connect line-level equipment to the highly sensitive PHONO inputs!
The output levels of PHONO cartridge systems are in the millivolt range, whereas
CD and MD players, as well as tape decks, provide outputs levels in the volt range.
In other words, the level of line signals is up to 100 times higher than PHONO
output levels.
• Do not turn up the volume when no turntable is connected to the PHONO input
terminals. Doing so will cause humming or noise.
When not connecting a turntable, keeps the “LINE” setting.
5. The CHANNEL 2 fader adjusts the nal channel volume.
6. The PHONO/LINE switch.
7. The CHANNEL 3 fader adjusts the nal channel volume.
8. The USB/BT and AUX switch.
9. Output Meter: Indicate the levels of Left and Right Master channels.
10. The POWER ON switch turns on the unit
