7

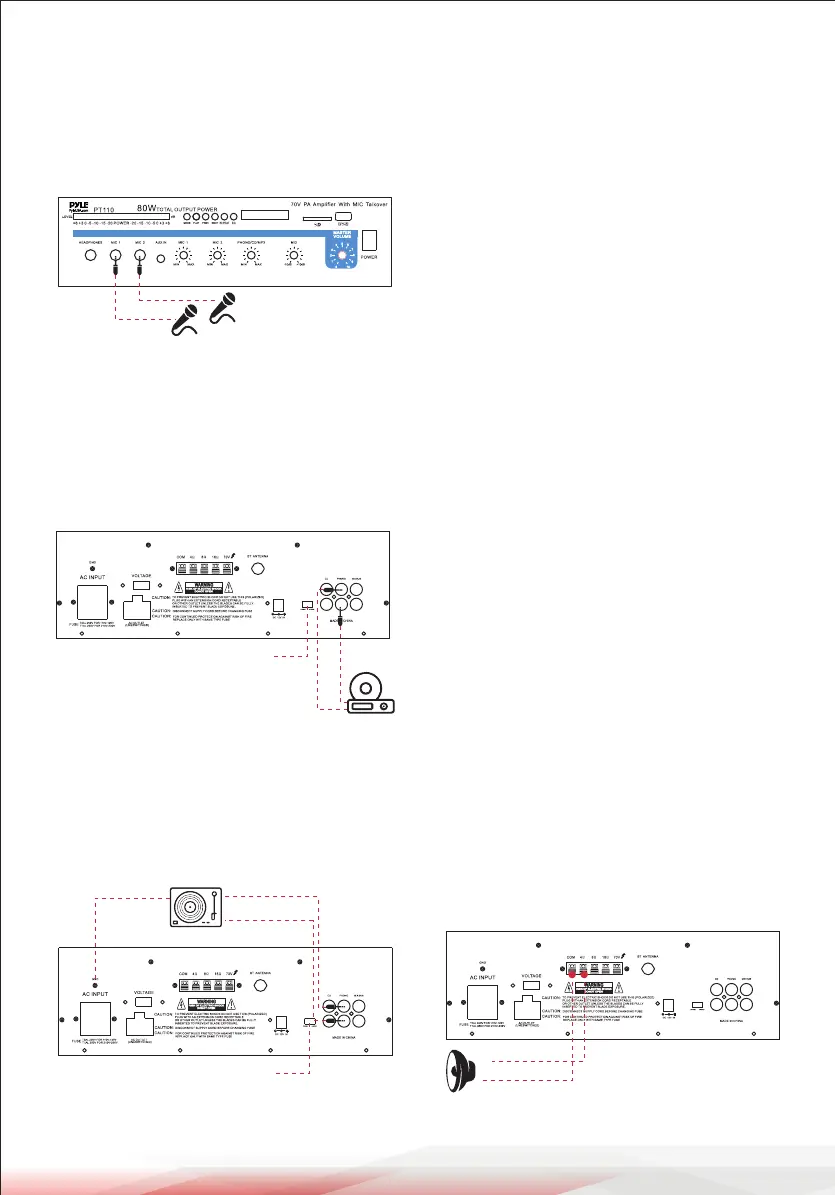

Connecting Microphones
The MIC 1 and MIC 2 jacks allow you to
connect two microphones with 6.35mm
plugs.
Connecting a CD or Tape Player, or
Tuner
In this situation, set the PHONO and
AUX/CD SELECTOR switch to AUX/CD.
Connecting a Turntable
In this situation, set the PHONO and
AUX/CD SELECTOR switch to PHONO.
Speaker Connections
One or more speakers (4, 8, or 16-Ohm)
speakers can be connected to the
amplier with or without transformers.
However, before you connect any
speaker to the amplier, the total speaker
impedance must be calculated in order
to avoid damage to the amplier.
A total speaker impedance greater than
16 Ohms or less than 4 Ohms can be
cause this damage to occur. To begin
with, in order to ensure equal volume
from each speaker, all connected speakers
should have the same impedance.
A proper total impedance with the 4 to
16 Ohms range can be achieved by
combining series and paralled speaker
connections. Please see the diagrams
which follow the same impedance.
Finally, always use the shortest length
of speaker wire possible of proper gauge.
Usually, 18-gauge wire is ade-
quate for lengths under 25 feet, while
16-gauge is used for greater lengths.
System 1: Single speaker system
1. Connect the speaker (-) terminal to
the amplier COMMON terminal.
2. Depending on the speaker being used,
connect the speaker (+) terminal to
the amplier's 4-Ohm, 8-Ohm, or
16-Ohm terminal.
mic 1
mic 2
Set the switch to AUX/CD
position
CD, Tape player or Tuner
R
L
Set the switch to PHONO
position
Turntable
R
L
+
-
This example shows a 4 Ohm Speaker
