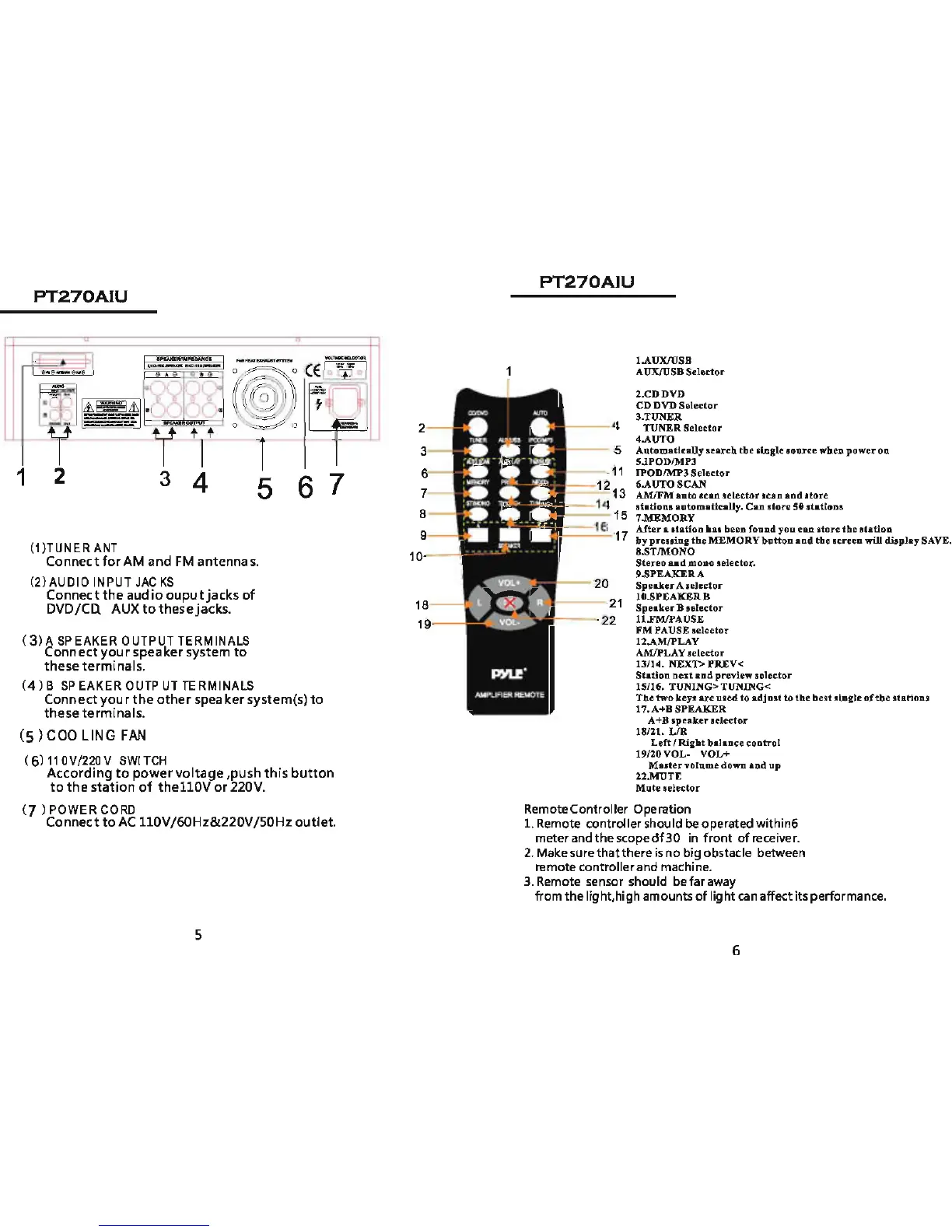

(1 )TUNER ANT
Connect for AM and FM antenna s.
(2) AUDIO INPUT JAC KS
Connect the aud io oupu tjacks of
DVD/Co. AUX to these jacks.
( 3) A SP EAKER OUTPUT TERM INALS
Conn ect you r spea ker system to
these terminals.
(4 )8 SPEAKEROUTPUTTERMINALS
6 7
Connect you r the other spea ker system(s) to
these terminals.
(5 ) COO LING FAN
( 6) 11 OV/220V SWITCH
According to power voltage ,push this button
to the station of thellOV or 220V.
(7 ) POWER CORD
Connect to AC llOV/60Hz&220V 150Hz outlet.
5
1
10 ---
PT270AIU
1.AUXlUSB
AUX/USB Selector
2.CDDVD
CD DVD Selector
3.TUNER
--- 4 TUNER Selector
-- 5
4.AUTO
Automatically search the single source when power on
5.IPOD/MP3
--- 11 IPODIMP3 Selector
=- --, 15
_----'- 6 :::....
17
)- -- 21
1-- -- 22
6.AUTOSCAN
AMlFM auto scan selector scan and store
stations automatically. Can store SO statioDS
7.MEMORY
After a station has been found you can store the station
by pressing the MEMORY button and the screen will display SAVE.
8.STIMONO
Stereo and mono selector.
9.SPEAKERA
Speaker A selector
10.SPEAKERB
Speaker B selector
1l.FMlPAUSE
FM PAUSE selector
12.AM/PLAY
AMIPLAY selector
13114. NEXT> PREV<
Station next and preview selector
15/16. TUNING> TUNING<
The two keys are used to adjust to the best single of the stations
17.A+BSPEAKER
A+B speaker selector
18/21. LIR
Left I Right balance control
19/20 VOL- VOL+
Mastervolume down and up
22.MUTE
Mute selector
Remote Controller Operation
1. Remote controller should be operated within6
meter
and the scopedf30 in front of receiver.
2. Make sure that there is no big obstacle between
remote controller and machine.
3. Remote sensor should be far away
from the light,high amounts of light can affect its performance.

Pyle PT270AIU Specifications

General

Receiver type	stereo
Frequency range	40 - 15000 Hz
RMS rated power	300 W
Input sensitivity	400 mV
Audio output channels	2.1 channels
Signal-to-Noise Ratio (SNR)	76 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	0
Line-in	Yes
Audio (L/R) in	1
Audio (L/R) out	5
Phono inputs (RCA)	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
Supported radio bands	AM, FM
Preset stations quantity	50
Compatible memory cards	SD
Display	-
Product color	Black
Volume control	Rotary
Apple docking compatibility	iPhone
AC input voltage	220 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	300 mm
Width	483 mm
Height	80 mm
Weight	7200 g
