Pyle PT270AIU Manual

PT270AIU

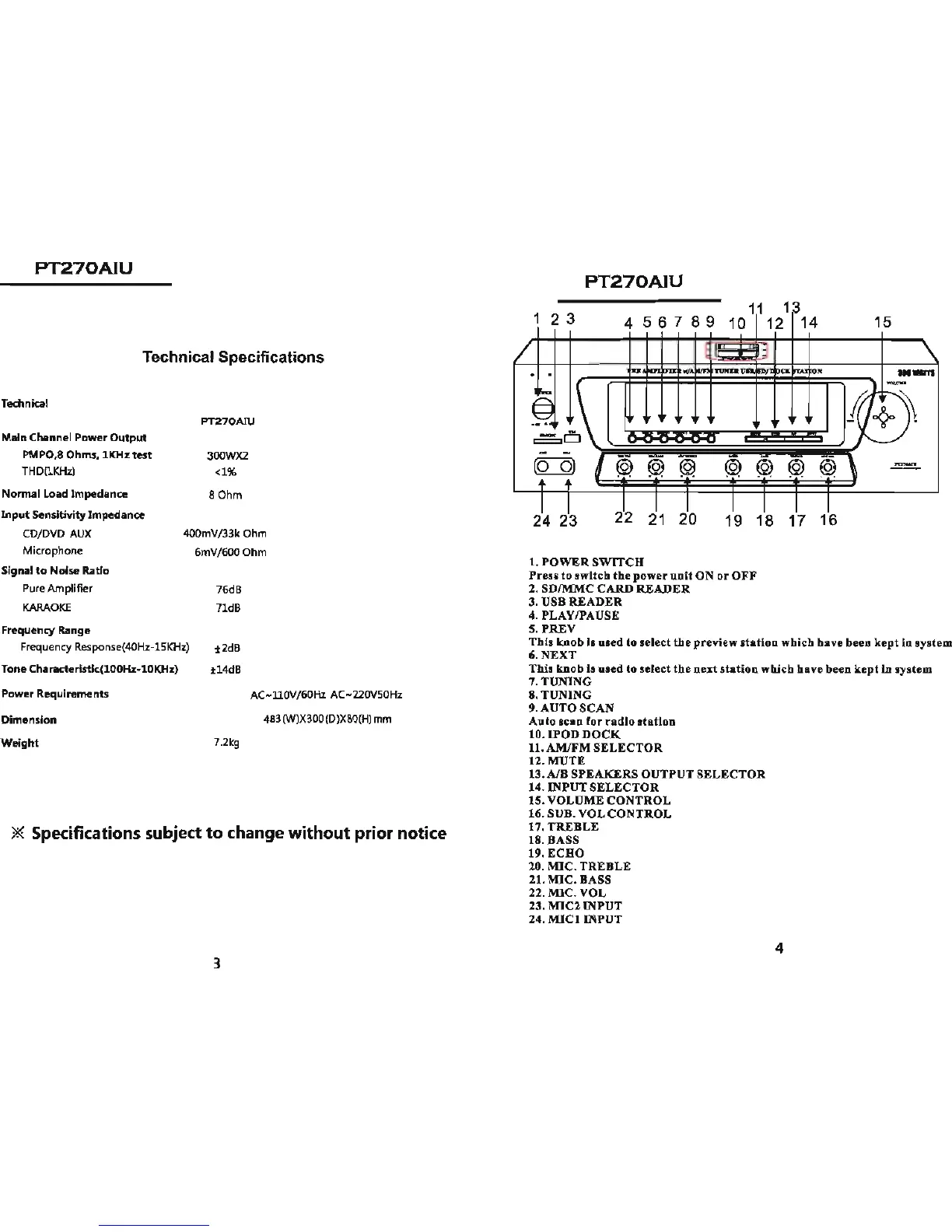

Technical Specifications
Technical
PT270AlU
Main Channel Power Output
PMPO.8 Ohms. 1KHz test
THD(1KHz)
300WX2
<1%
80hm
Normal Load Impedance
Input Sensitivity Impedance
CD/DVD
AUX
400mV/33k Ohm
Microphone 6mV/600 Ohm
Sign,1
to Noise Ratio
Pure Amplifier 76d8
KARAOKE 71d8
Frequency Range
Frequency Response(40Hz-lSKHz) ±2d8
Tone Ch,racteristlc(100Hz-IOKHz)
±14d8
Power Requirements
Dimension
Weight
7.2kg
AC-llOV/60Hz AC-220VSOHz
483 (W)X300 (D)X80(H) mm
* Specifications subject to change without prior notice
3
PT270AIU
1 23
4 56 7 89 10
1. POWER SWITCH
Pre •• to switch the power unit ON Dr OFF
2. SD/MMC CARD READER
3. USB READER
4. PLAY/PAUSE
S.PREV
15
.....
17 16
Thi. knoh Is used to select the preview station which have heen kept in system
6.
NEXT
This knob 10 used to select the neIt station which have been kept In system
7.
TUNING
8. TUNING
9. AUTO SCAN
Auto scan for radio station
10. IPOD DOCK
1l.AM/FM SELECTOR
12. MUTE
13. A/B
SPEAKERS OUTPUT SELECTOR
14. INPUT SELECTOR
15. VOLUME CONTROL
16. SUB. VOL CONTROL
17. TREBLE
18. BASS
19.
ECBO
20. M1C. TREBLE
21. MIC . BASS
22.
MIC . VOL
23.
MIC2 INPUT
24. MICIINPUT
4

Pyle PT270AIU Specifications

General

Receiver type	stereo
Frequency range	40 - 15000 Hz
RMS rated power	300 W
Input sensitivity	400 mV
Audio output channels	2.1 channels
Signal-to-Noise Ratio (SNR)	76 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@8 Ohm)	150 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	0
Line-in	Yes
Audio (L/R) in	1
Audio (L/R) out	5
Phono inputs (RCA)	2
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Ethernet LAN	No
Supported radio bands	AM, FM
Preset stations quantity	50
Compatible memory cards	SD
Display	-
Product color	Black
Volume control	Rotary
Apple docking compatibility	iPhone
AC input voltage	220 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	300 mm
Width	483 mm
Height	80 mm
Weight	7200 g
