Pyle PTA2 User Manual

FOREWORD
Your New Pyle Pro Amplier gives you the power and versatility you need in
a professional sound system. The amplier's wide frequency response makes
it suitable for amplifying music or vocal program material. It can be used
in meeting halls, house, restaurant, schools, stores, or for paging systems.
Please read this manual thoroughly before you attempt to set up and use
the amplier. It contains a range of installation suggestions as well as
instructions to ensure safe usage.
Installed properly, you can expect years of trouble-free service from this
product.

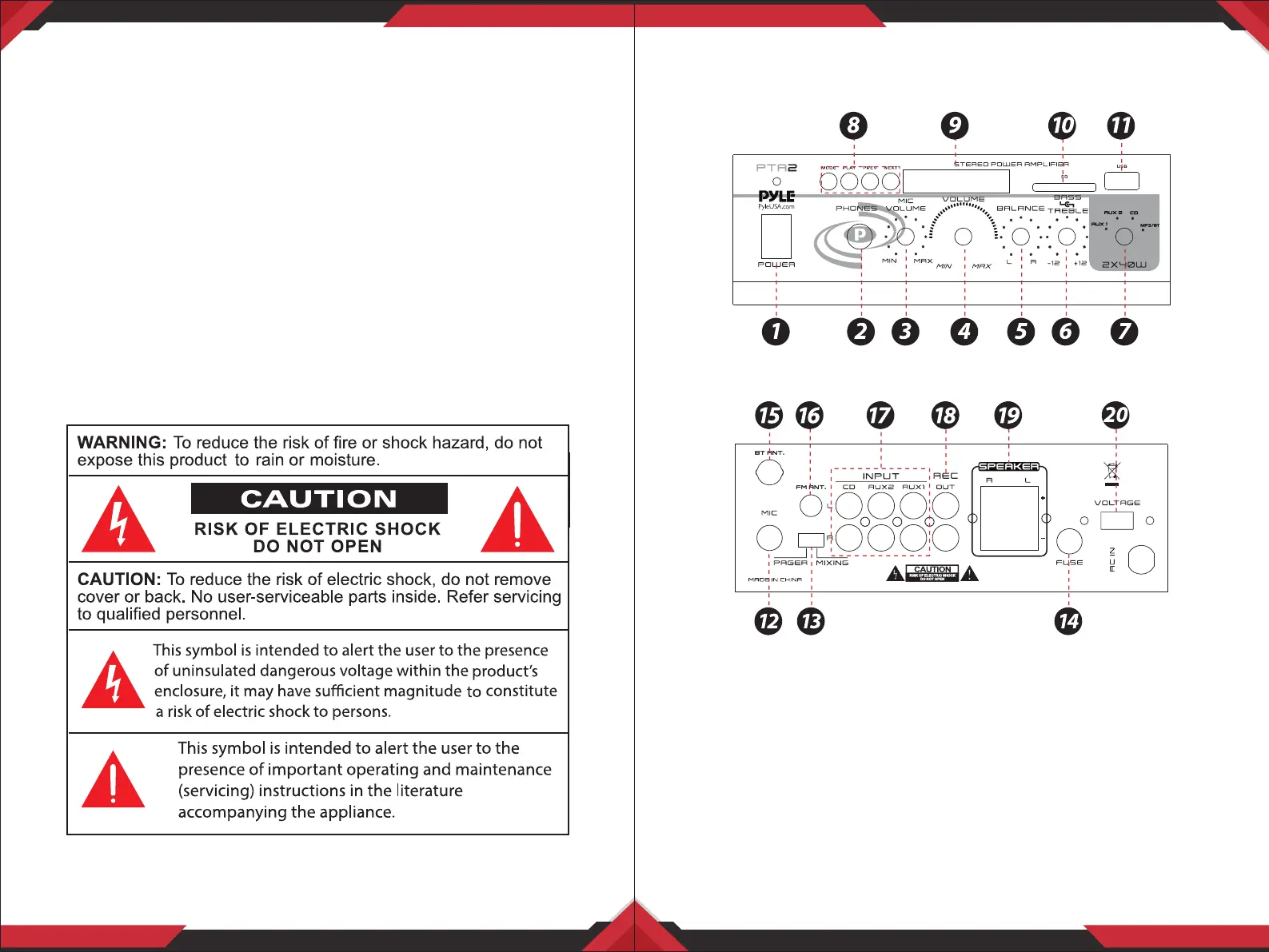

FEATURES AND CONTROLS
FRONT PANEL
BACK PANEL
1. Main Power ON Switch: Switch ON/OFF the amplier by using this switch.
2. 1/4” Phone Jack: Accepts headphones with 1/4” plug.
3. Mic Volume Control: Adjusts the volume of the connected MIC to proper
setting.
4. Music Volume Control: Adjusts the music volume output from AUX 1,
AUX 2, or CD source. It doesn’t aect the MIC volme.
5. Balance Control: Adjusts the balance of sound between left and right
amplier output.
6. Bass and Treble Tone Control: Lets you boost or attenuate your desired
bass and treble sound.
7. AUX 1/AUX 2/CD INPUT Selector: Select the desired music souce input.
www.PyleUSA.com
2
www.PyleUSA.com
3

Pyle PTA2 Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	80 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	110-220 V
Manual	Yes

Weight and Dimensions

Depth	1642 mm
Width	2279 mm
Height	841 mm
