Pyle PTA2 User Manual

IMPORTANT

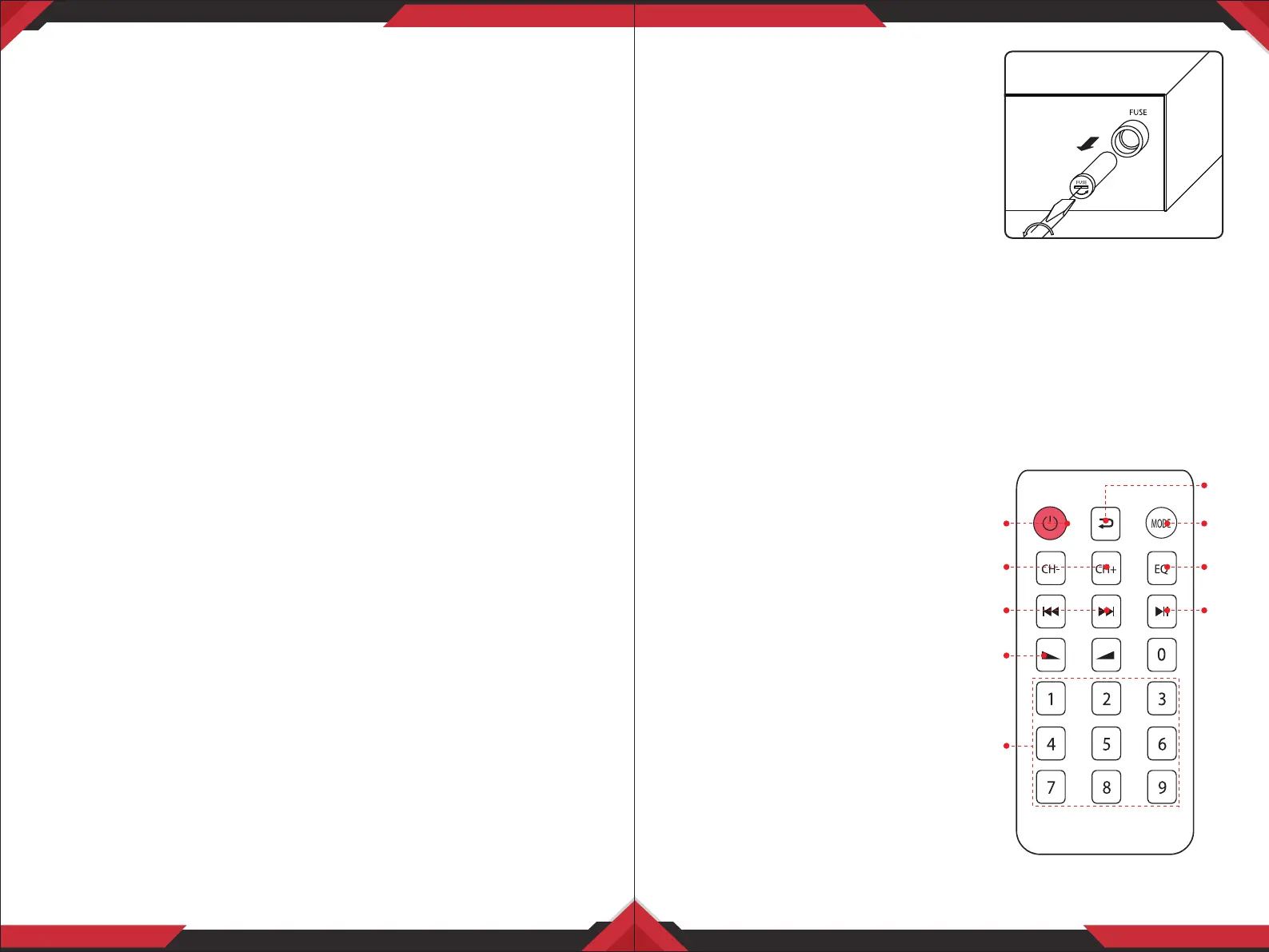

Replacing a fuse
This amplier requires fuse with the proper
rating for protection from power surges and
short circuits. If the amplier suddenly turns
o or would not turn on, the fuse is properly
blown.
• Let the amplier cool down and
see if it starts again before you assume a fuse needs to be replaced.
• Unplug the amplier from the AC outlet.
• Turn the fuse holder cap and pull out the cap.
• Remove the old fuse and replace it with an identical one.
CAUTION: Never use a fuse with a higher rating
Remote control
1. Press this button to turn on the MP3
2. In FM mode, press this two buttons
to select previous or next channel.
3. Press these two buttons to select the
previous or next track in USB or SD
or Wireless BT mode
4. Volume up or down
5. Press the numbers to select the tracks
directly. The unit takes 1-2 seconds to
response in USB or SD mode.
6. Press this button to select the dierent
repeat mode. Pressing this button for
more than 3 seconds will enter into
FOLDER searching
7. Press this button to select the playing
mode, such as USB/SD/FM/WIRELESS BT
8. EQ function, if the mp3 with EQ
9. Play and pause function for MP3
8. MODE, PLAY, PREV and NEXT Function Control buttons:
• MODE Button: For audio selection like WIRELESS BT/SD/LINE IN
• PLAY/PAUSE BUTTON: Play and Pause control button
• PREV/NEXT: Quick backward or next song
9. LED Display: Displays the output level and selected input
10. SD Card Input
11. USB Flash Drive Input
12. 1/4” Mic Input Jack: Lets you connect a microphone with a 1/4” plug.
13. Switchable Mic Pager and Mixing modes:
• Set to PAGER: allows a voice to be heard clearly through microphone by
attenuating automatically all the audio input sources. This is good to use
when paging a person in oce, store or restaurant.
• Set to MIXING: Both voices from microphone and music will exist at the
same time. Similar as singing in karaoke events.
14. Fuse: The amplier uses fuse for protection against surges and short
circuit. If the amplier suddenly turns o and will not turn on, check the
fuse. If necessary, replace it with a 1-amp, 250-volt, fast-acting, 5x20mm
fuse (not supplied).
15. Wireless BT Antenna: Wireless BT Streaming receiver
16. FM ANTENNA CONNECTOR
17. AUX 1/AUX 2/CD RCA INPUT: Connect your most high-level audio
sources such as CD player, tape deck, tuner, camcorder or VCR.
18. REC RCA Output: Connect the amplier to a tape deck for recording.
19. Speaker L/R Terminals: Lets you easily connect speaker wires
directly to the Amplifer. Speaker impedance can range from 8 to 4 ohms
for general stereo output. Please see the next instruction for using four
8-ohm speakers for stereo mode connection.
20. Voltage Selector: Select the voltage of AC power input source. The amplifer
has selectable input voltage from 110V/60Hz which is the standard in USA
and CANADA. You can also switch the input voltage to 230V/50Hz for
EUROPEAN operation. Please make sure the switch is in the proper position
before operating otherwise severe damage will result which is not covered
by the warranty. Please also replace the fuse with proper rating in this
situation.
www.PyleUSA.com
4
www.PyleUSA.com
5
1
2
3
4
5
6
7
8
9

Pyle PTA2 Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	80 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Headphone connectivity	3.5 mm
Speakers connectivity type	RCA
Purpose	Home
Product color	Black
Connectivity technology	Wired
AC input voltage	110-220 V
Manual	Yes

Weight and Dimensions

Depth	1642 mm
Width	2279 mm
Height	841 mm
