Pyle PTA24BT - Back Panel and System Controls; Main Power ON Switch; Echo and Microphone Volume Controls; Input Jacks and Tone Controls

www.PyleUSA.com www.PyleUSA.com
1. Main Power ON Switch
• Switch ON or OFF The amplier by using this switch.
2. ECHO CONTROL
• Turn the knob to adjust the MIC echo level.
3. MIC 1 VOL & MIC 2 VOL
• Turn the knob clockwise to increase the MIC volume.
4. MIC 1 & MIC 2 Input Jack
• KARAOKE MIC connected to these jacks.
5/6. BASS AND TREBLE TONE CONTROL
• Lets you boost or attenuate bass and treble for the desired sound.
7. Master Volume
• Adjusts main audio system volume level.
8. Audio Source Switch
• Audio Source Switches between AUX1 input, AUX2 input,
BT/FM/USB/SD
9. Independent Channel Volume Controls
• Adjusts audio volume levels for connected input(s).
10. SD/MMC Socket for playing SD/MMC cards
11. USB Charge Port & USB Reader Function
• USB port for smartphone charging and USB reader function.
12. Buttons for Bluetooth/MP3 (USB and SD) Function Control
• MODE Button: For audio selection like BLUETOOTH/USB/SD/LINE IN
• PLAY/PAUSE BUTTON: Play and Pause control button
• PREV/NEXT: Quick backward or next song

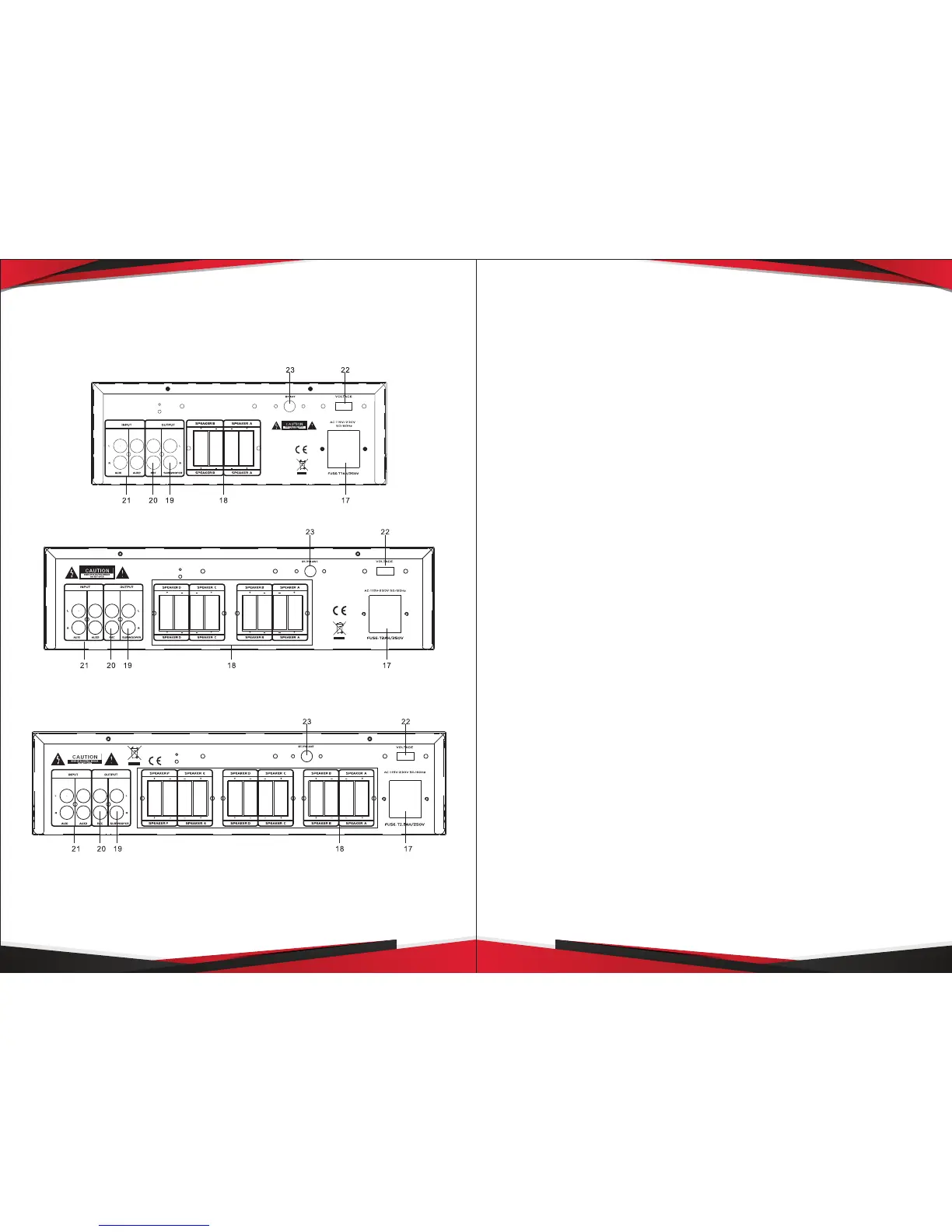

BACK PANEL
PTA24BT
PTA42BT
PTA62BT
2 3
