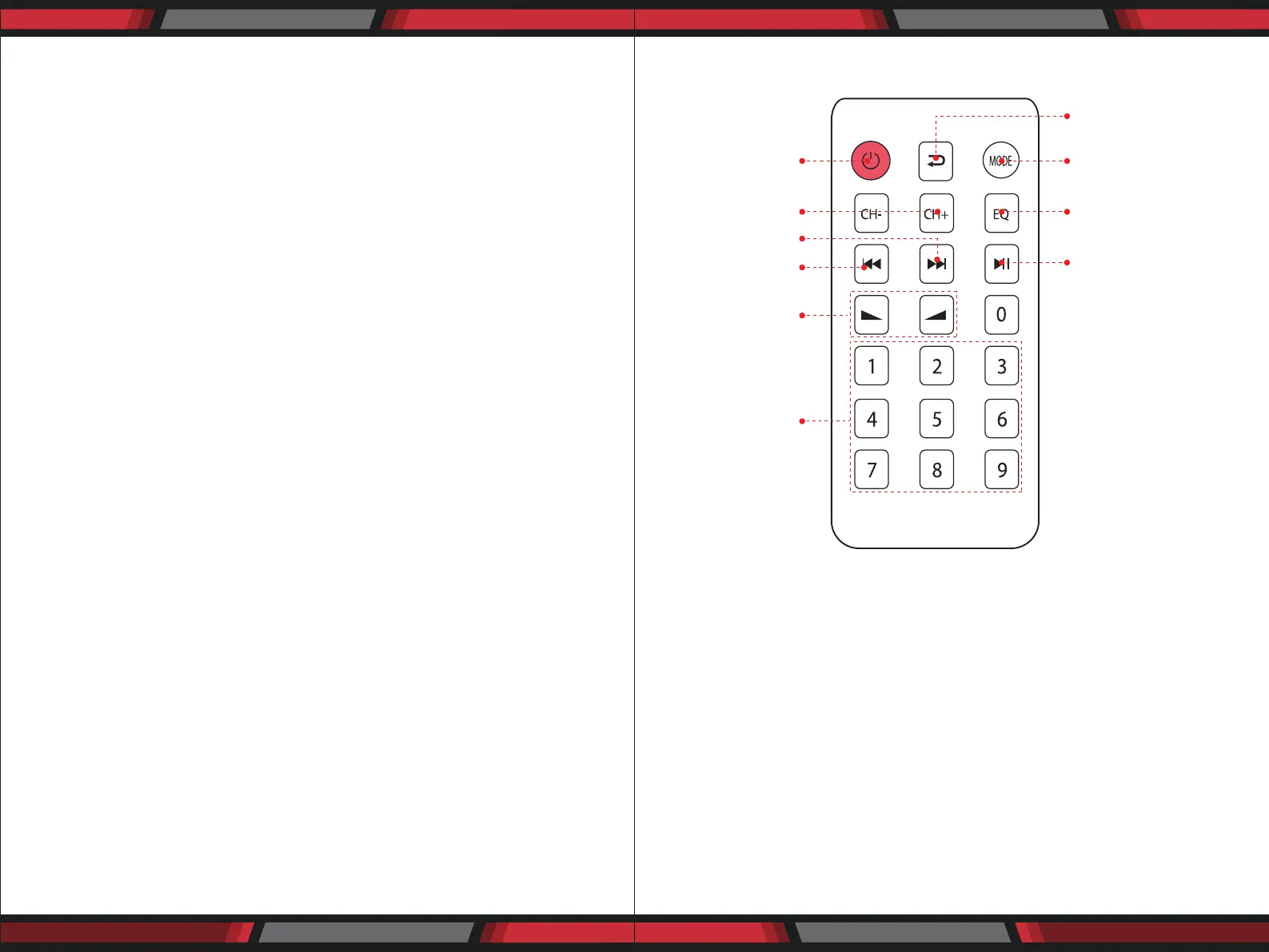

REMOTE CONTROL FUNCTION
1. Power ON/OFF Button, OPEN/CLOSE MP3 Player
2. FM scan and select memory frequency
3. Next Song Button
4. Previous Song Button
5. Volume Increase/Decrease
6. Repeat Song Button
7. MODE: Menu Control Button
Press to select USB/BT/FM/LINE IN etc. audio input
8. Equalizer Button
9. PLAY/PAUSE Button
10. Number Buttons for Song Selection
8. Audio Source Switch
• Audio Source Switches between AUX1 input, AUX2 input,
BT/FM/USB/SD
9. Independent Channel Volume Controls
• Adjusts audio volume levels for connected input(s).
10. SD/MMC Socket for playing SD/MMC cards
11. USB Charge Port & USB Reader Function
• USB port for smartphone charging and USB reader function.
12. Buttons for Bluetooth/MP3 (USB and SD) Function Control
• MODE Button: For audio selection like BLUETOOTH/USB/SD/LINE IN
• PLAY/PAUSE BUTTON: Play and Pause control button
• PREV/NEXT: Quick backward or next song
13. Blue LED DIsplay WIndow for MP3/Bluetooth Function
14. Headphone Control
• 3.5mm headphone input jack with independent rotary volume control.
15. Line Input AUX/CD IN
• Connect the MP3 Device (player) sources such as PC (CD ROM),
laptop, walkman, iPod and mobile phone
16. Microphone Talk-Over
• Switch-activated function allows for direct audio integration with
connected microphone (MIC1).
17. AC IN Power Cord
• Connect to AC 110V/60Hz or 220V/50Hz
18. Push Type Speaker L/R Terminals
• Connect the speaker wires directly to the amplier
19. Stereo Subwoofer Output
• Connect to subwoofer system from these terminals
20. Stereo Recording Function Output
21. RCA L/R LINE Input
• Connect to desired LINE input sources.
22. 110V/220V Switch
• According to power voltage, push this button to the 110V or 220V
correct station.
23. Wireless BT Antenna/FM Antenna
• Wireless BT Streaming and FM receiver
1
2
4
5
10
6
7
8
9
3
