Pyle PUCWM11 User Manual

Connected patch
with ground
Yellow & Green
White
Black
Grey
Grey
Grey
Purple
Purple
Knob of choice
Capacitor
Main Circular Resistance CircularSub- Resistance
Motor
Blue
Yellow
Yellow
Red
Red
Soft
Timer of Washing
PROBLEM POSSIBLE CAUSE REPAIR
PULSATOR Power Failure (Blackout) Insert Plug
STOP Plug is loosely connected Call service technician to put back the V-Belt
RUNNING V-Belt drops off Call service technician to tighten pulley screw
Loose pulley Remove foreign object immediately
Jammed pulsator due to foreign matter Call service technician to adjust gap between
them
ABNORMAL Friction between pulsator and wash tub Remove foreign object immediately
NOISE Pulsator is jammed due to foreign matter Call service technician to put back the V-Belt
VIBRATION V-Belt too tight Call service technician to put back the V-Belt
PULSATOR Slackened of worn-out V-Belt Replace V-Belt
RUNS AT ABNORMAL Call service technician to tighten the V-Belt and
screws
SPEED Loose motor xing screws Call service technician to x the machine
MAINTENANCE AFTER USE

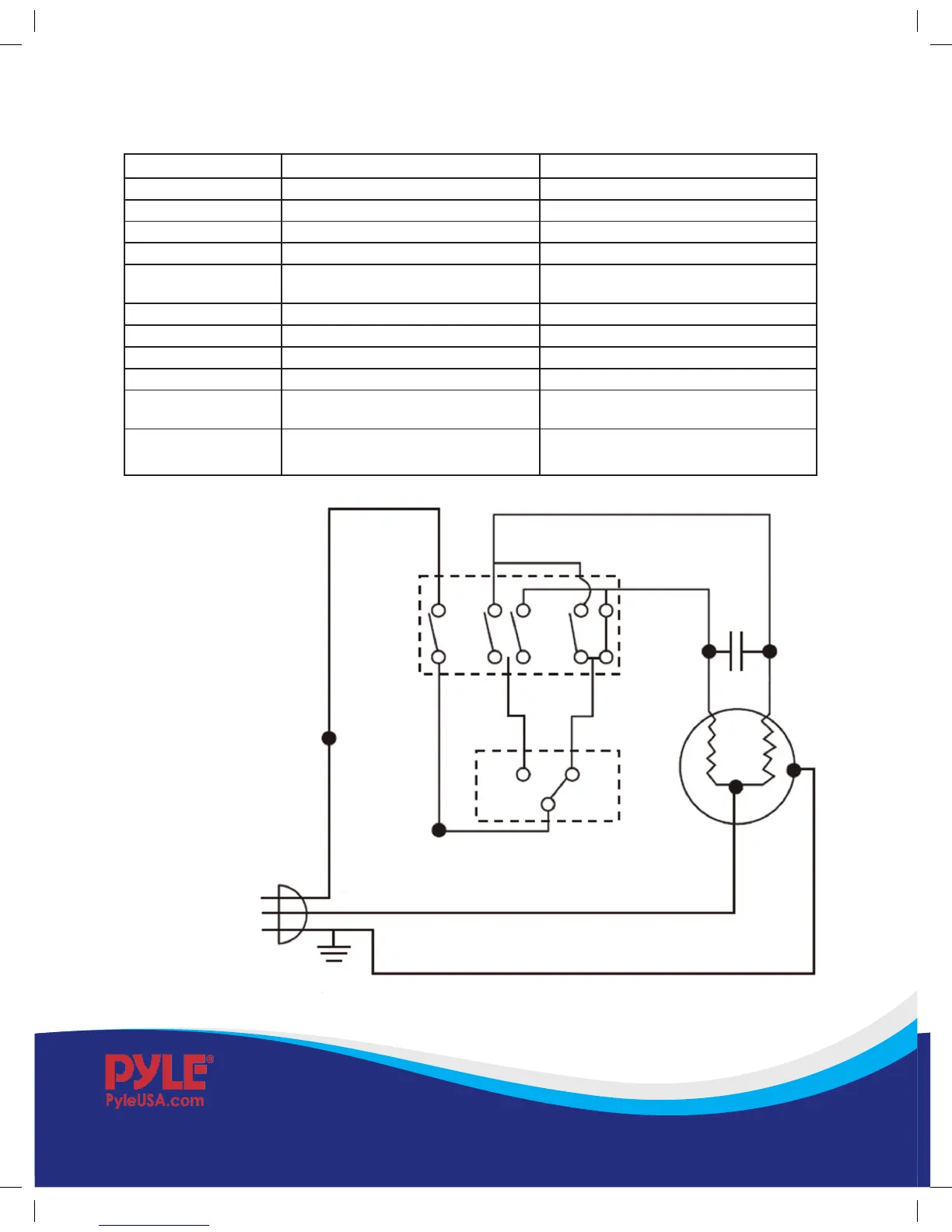

CIRCUIT
DIAGRAM
*Specication & appearance are subject to change without notice.

Pyle PUCWM11 Specifications

General

Brand	Pyle
Model	PUCWM11
Category	Washer
Language	English
