Pyramid CDR45DX - Wiring for 2 x7 W System

6

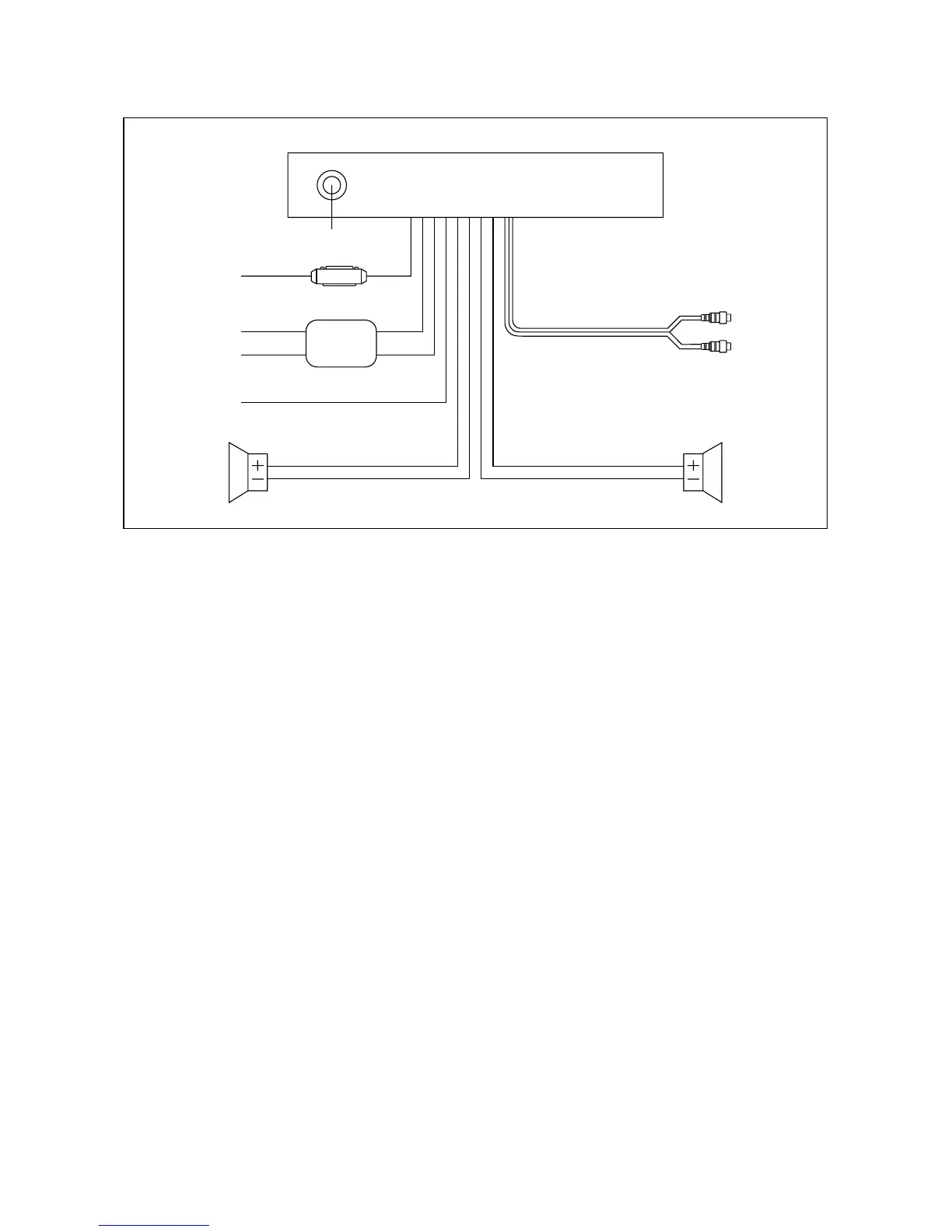

WIRING CONNECTION FOR 2 X 7W SYSTEM
ANTENNA CONNECTOR
GROUND (B–)
LEFT
SPEAKER
GREEN
GREEN/BLACK
MAIN UNIT
Rch RED
(FOR RCA LINE OUT VERSION ONLY)
RCA CABLE
RIGHT
SPEAKER
POWER
ANTENNA
Lch WHITE
(GREY)
GREY
GREY/BLACK
BLACK
RED
YELLOW
(FOR POWER ANT. VERSION ONLY)
IGNITION
SWITCH (B+)
PINK
MEMORY
BACK-UP
CHOKE BOX
