pyromaster H33BDVRRN - Fireplace Dimensions

4
Pyromaster© H33BDVRRN/P
10004798
Fireplace Dimensions

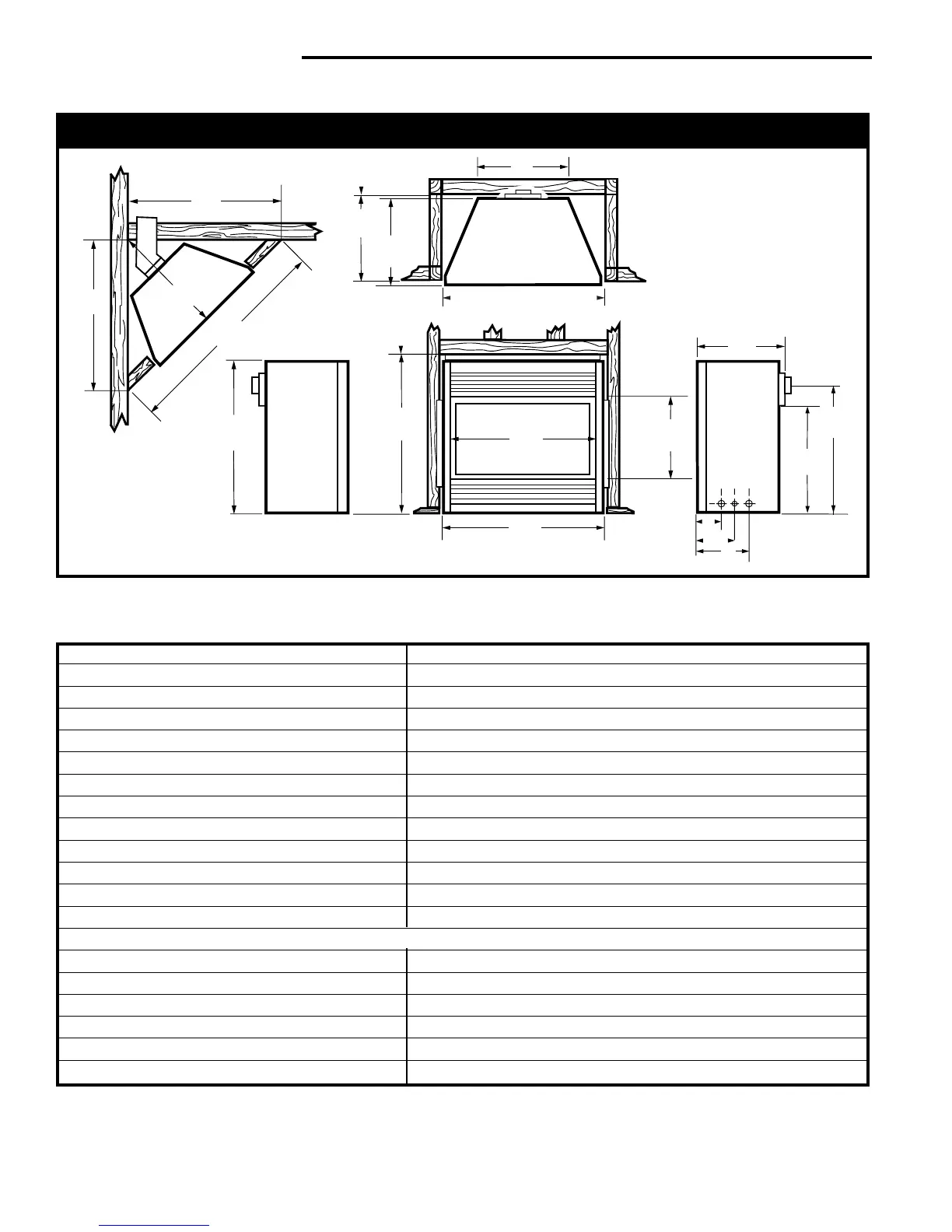

Fig. 2 Fireplace specifications and framing dimensions.
F
Q - Rough Opening Width
Rough
Opening
Height
Rough
Opening
Depth
M
M
O
N
P
E
I
H
J
C
A
D
R
B
K
L
G
4758
Ref. H33BDVRRN/P
A 33” (838mm)
B28⁷⁄₈” (733mm)
C16³⁄₈” (416mm)
D 31” (787mm)
E 22” (559mm)
F11¹⁄₂” (292mm)
G 14” (355mm)
H20¹⁄₄” (515mm)
I24¹⁄₂” (622mm)
J 5” (127mm)
K7¹⁄₂” (297mm)
L8¹⁄₂” (216mm)
Framing Dimensions
M 36” (914mm)
N 51” (1294mm)
O25¹⁄₂” (648mm)
P 12” (305mm)
Q33¹⁄₂” (851mm)
R 29” (737mm)
