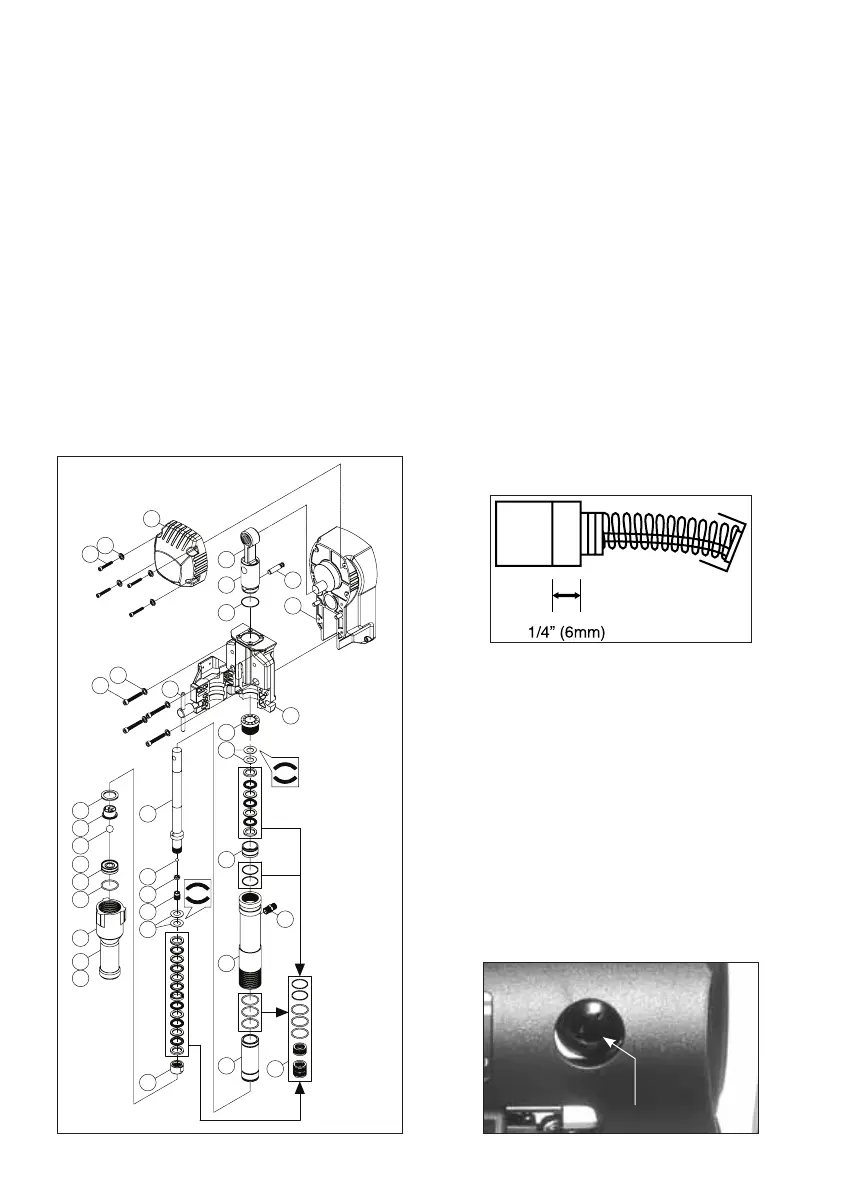

7. Loosen the Packing nut (24) from Pump
Housing(19).
8. Pull the Displacement Piston (17) out
from Pump Housing (19).
9. Remove the Packing set seat (22),
release Intake disc seat (08) and
remove and discard all old packings.
10. Soak the new leather packings in
W30 oil for at least one hour before
assembling.
11. Replace the packings, glands, o-rings
and check balls with the new parts form
the rebuild kit. Strictly follow the exact
order and orientation.
MOTOR MAINTENANCE
LUBRICATION – The gear case grease may
be changed every 200 hours of operation.
This is best entrusted to a qualified repair
technician.
THE CARBON BRUSHES (Only motors with
carbon brush system)
The carbon brushes are a normal wearing
part and must be replaced when they reach
their wear limit. When the brushes are worn
to a length of 1/4", they should be replaced
as a set.
TO CHANGE THE BRUSHES
1. Unplug the machine.
2. Remove the brush cap with a slothead
screwdriver
3. Remove the brush.
4. Install new brushes in reverse order and
replace covers
