4
Installation must be carried out by the procedure outlined. Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations. Connection to be carried
out by a registered electrician.
Duct direction (For all models except MT)
Before installing your rangehood check whether it has the fan mounted for back or top ducting.
For top ducting, the fan must be fixed to the back of the unit with the air outlet at the top, and for back
ducting, the fan must be fixed to the top of the unit with the air outlet at the back.
To change from top to back or back to top, proceed as follows:

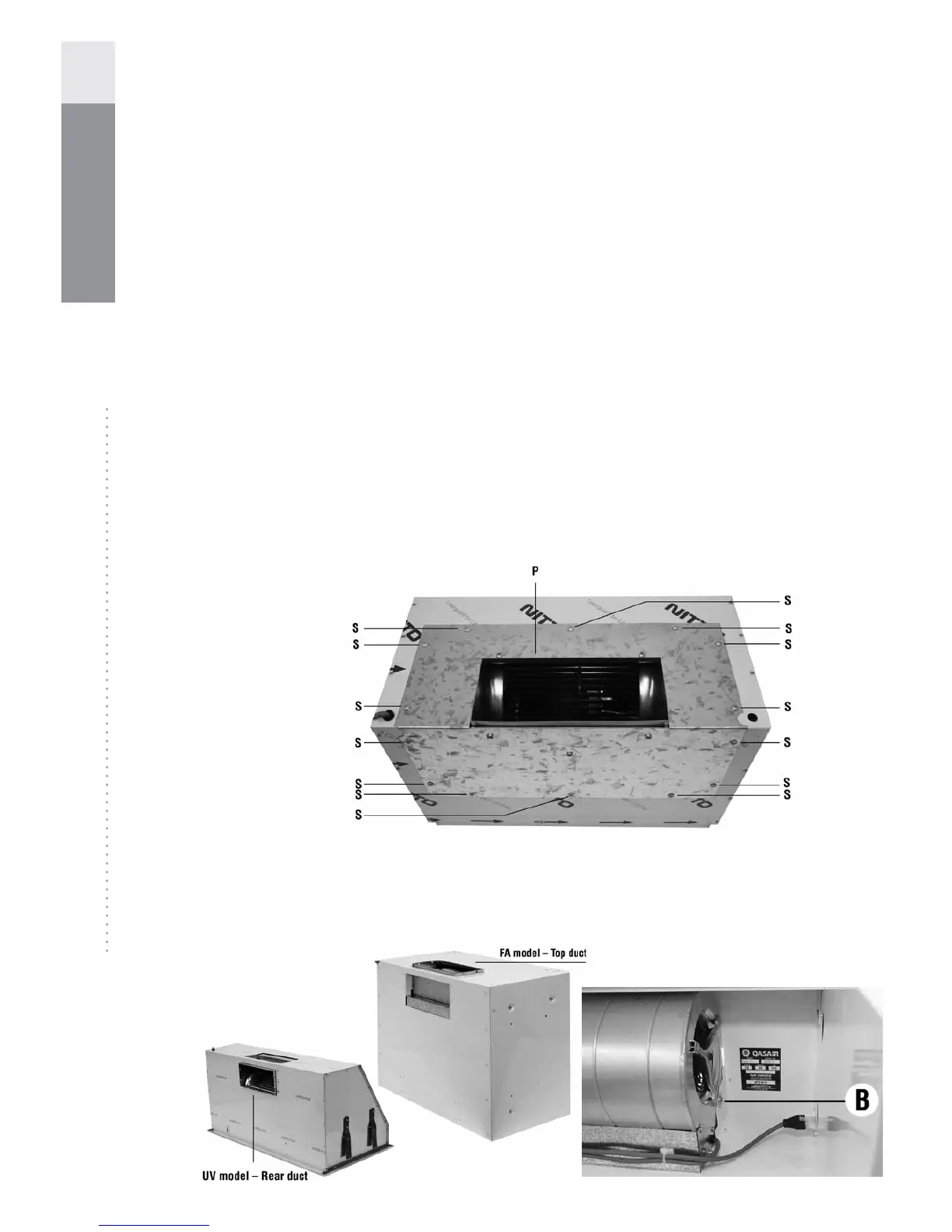

Duct direction for UCH models
The motor shown is fitted to the back plate (P) and this plate is attached to the hood by screws (S). To
change from top to back undo all the screw (S), 14 of them and remove the plate and turn it around so the
motor points out the way required. Fit all the screws again and tighten.
Duct direction for UV / FA models
The photo's show a UV rear ducted and a FA top ducted unit. To change the direction undo the motor bolts
(B) on both sides of the motor. The motor can then be changed to point in the direction required. Replace
the bolts and tighten.
INSTRUCTIONS
for models
FA 60F-1
FA 90F-1
FA 90F-2
MT 60L-1
MT 90L-1
MC 10L-2
UCH 50F-1
UCH 80H-1
UCH 80H-2
UCH 100H-2
UCH 120H-2
UV 500F-1
UV 800F-1
UV 800F-2
UV 1000F-2
UV 1200F-2
UV 1200F-3
UV 1500F-3
NDCH 60F-1
NDCH 80F-1
NDCH 80F-2
NDCH 90F-1
NDCH 90F-2
NDCH 100F-2
NDCH 120F-2
ECH 600F-1
ECH 800F-1
ECH 800F-2
ECH 900F-1
ECH 900F-2
ECH 1000F-2
ECH 1200F-2
