QASAIR Installation Instructions
6
Installation instructions
For Under cupboard and Universal model (UCH, UV, ECH & NDCH)
Make cut out to the following sizes.
MODEL HOOD SIZE BASE SIZE CUT OUT DIMENSION
UCH 50F 243 x 480 280 x 500 260 x 485
UCH 80H 243 x 780 280 x 800 260 x 785
UCH 100H 243 x 980 280 x 1000 260 x 985
UCH 120H 243 x 1180 280 x 1200 260 x 1185
UV 500F 390 x 480 430 x 500 398 x 485
UV 800F 390 x 780 430 x 800 398 x 785
UV 1000F 390 x 980 430 x 1000 398 x 985
UV 1200F 390 x 1180 430 x 1200 398 x 1185
UV 1500F 390 x 1480 430 x 1500 398 x 1485
NDCH 60F 243 x 580 280 x 600 260 x 585
NDCH 90F 243 x 880 280 x 900 260 x 885
NDCH 100F 243 x 980 280 x 1000 260 x 985
NDCH 120F 243 x 1180 280 x 1200 260 x 1185
ECH 600F 340 x 580 380 x 600 348 x 585
ECH 800F 340 x 780 380 x 800 348 x 785
ECH 900F 340 x 880 380 x 900 348 x 885
ECH 1000F 340 x 980 380 x 1000 348 x 985
ECH 1200F 340 x 1180 380 x 1200 348 x 1185

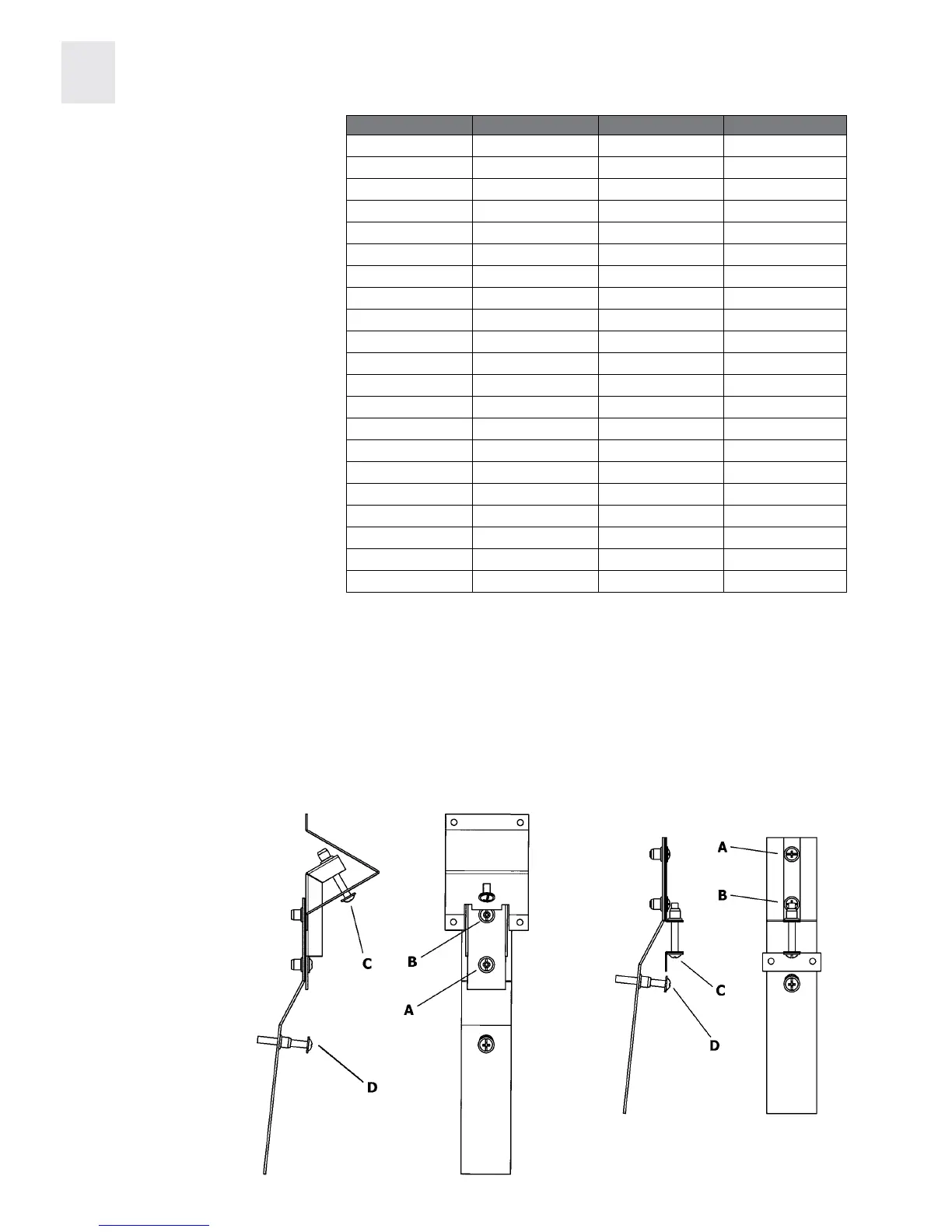

Loosen screws A and B by turning anti-clockwise.
Insert rangehood into cut out and turn screw ‘C’ clockwise to align rangehood with cupboard base.
Do not over tighten.
Tighten screw ‘A’ by turning clockwise to lock fixing bracket.
Fit off ductwork as required.
To remove rangehood, turn screw ‘D’ clockwise.
Models ECH
NDCH90
NDCH 100
NDCH 120
Models UCH
UV
NDCH60
