7. Installation of the ceiling fan

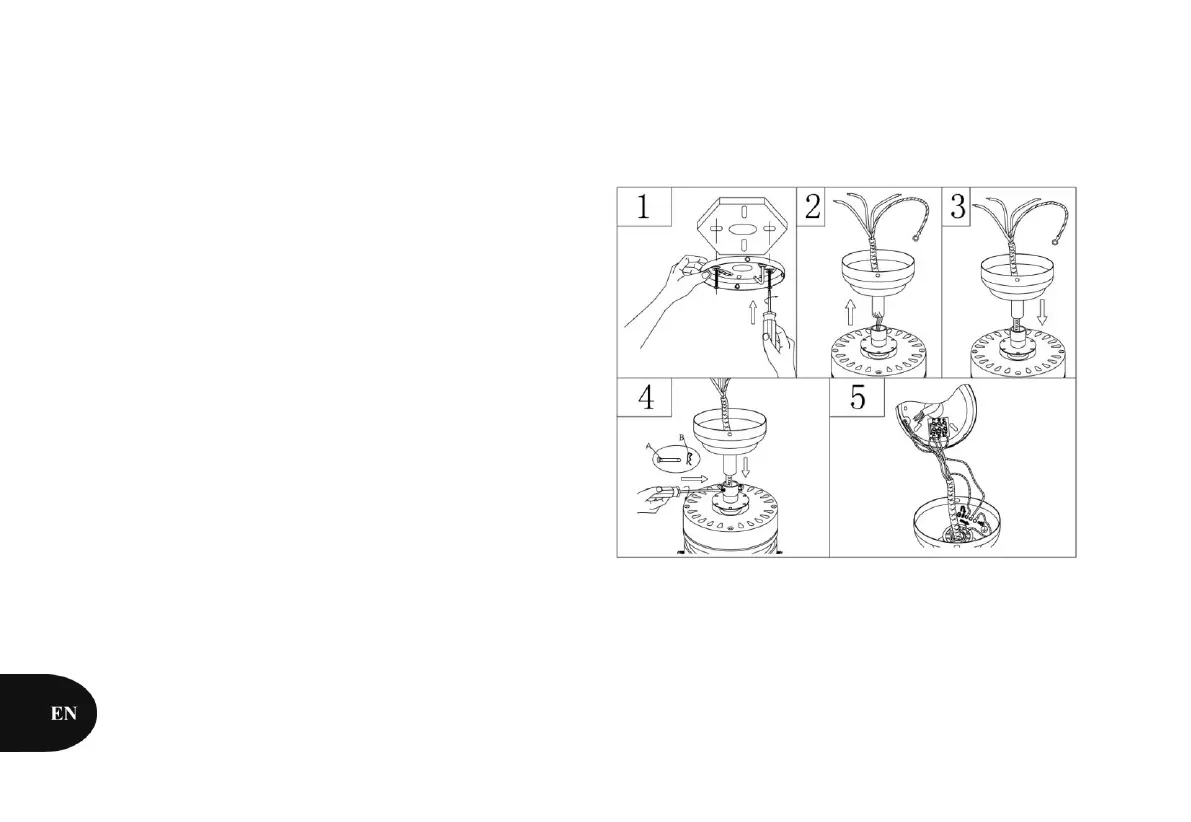

1. Install the mounting
plate by screw (Fig.1)
2. Insert downrod over
upper canopy (Fig 2 3)
3. Then, insert the cross
pin over yoke and
Cotter pin(Fig 4)
4. Connect the wire as the
fig show (Fig 5)
P.6
