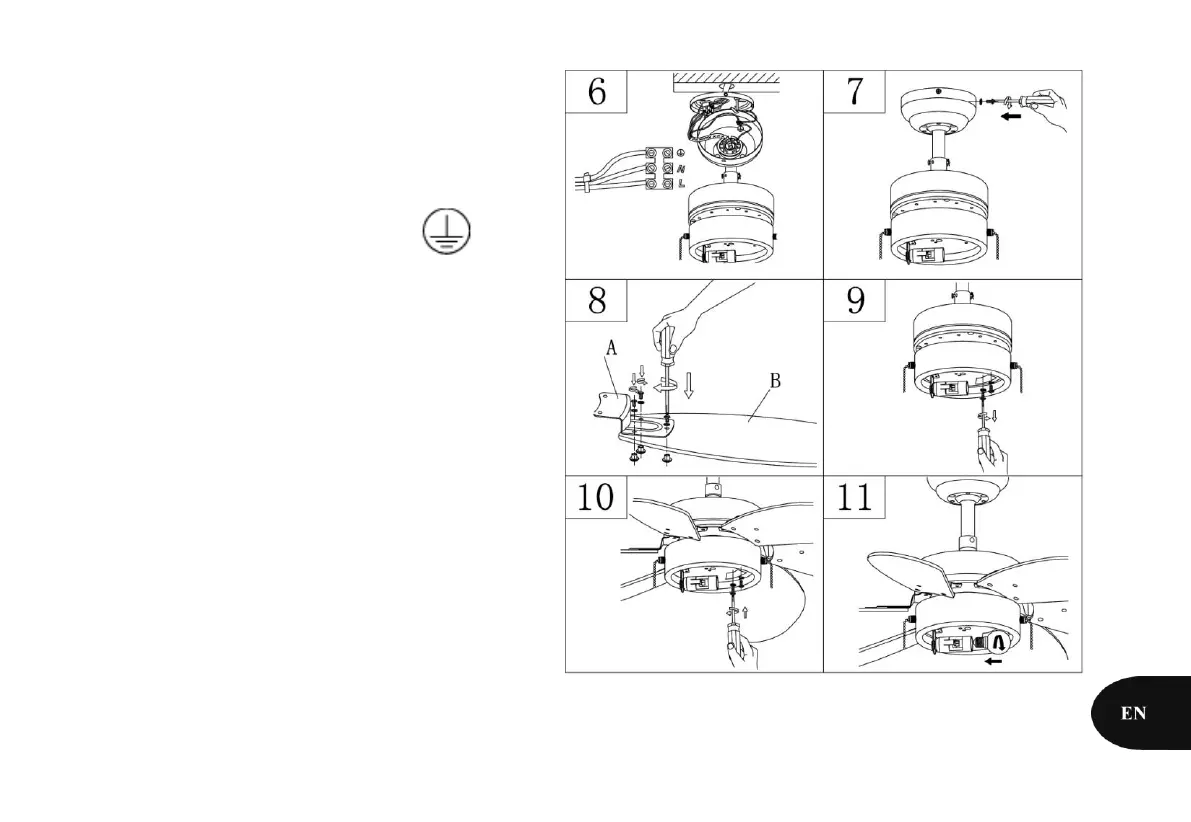

5. Make sure the wiring correct, if
you are not sure, pls consult qualified
electrician (Fig.6)
Black +Brown wire “L”
Blue wire “N”
Green & yellow wire
6. Hang up the fan and assembly
the mounting plate with the
motor set by 4 side screws
(Fig 7)
7. Assembly the blades to blade
holders (Fig 8)
8. Loose the screw before install the
blade (Fig 9)
9. Tighted up the screws after install the
blade.(Fig 10)
10. Install the light bulb (not
provided), .(Fig 11)
