10
Step 3
Insert the Bottom Spindle Housing with the AccuInstall
Indicator™ into the bottom bar on the locking side of the
gate. Repeat the same for the Bottom Spindle Housing
without the pressure indicator on the hinge side of the
gate.

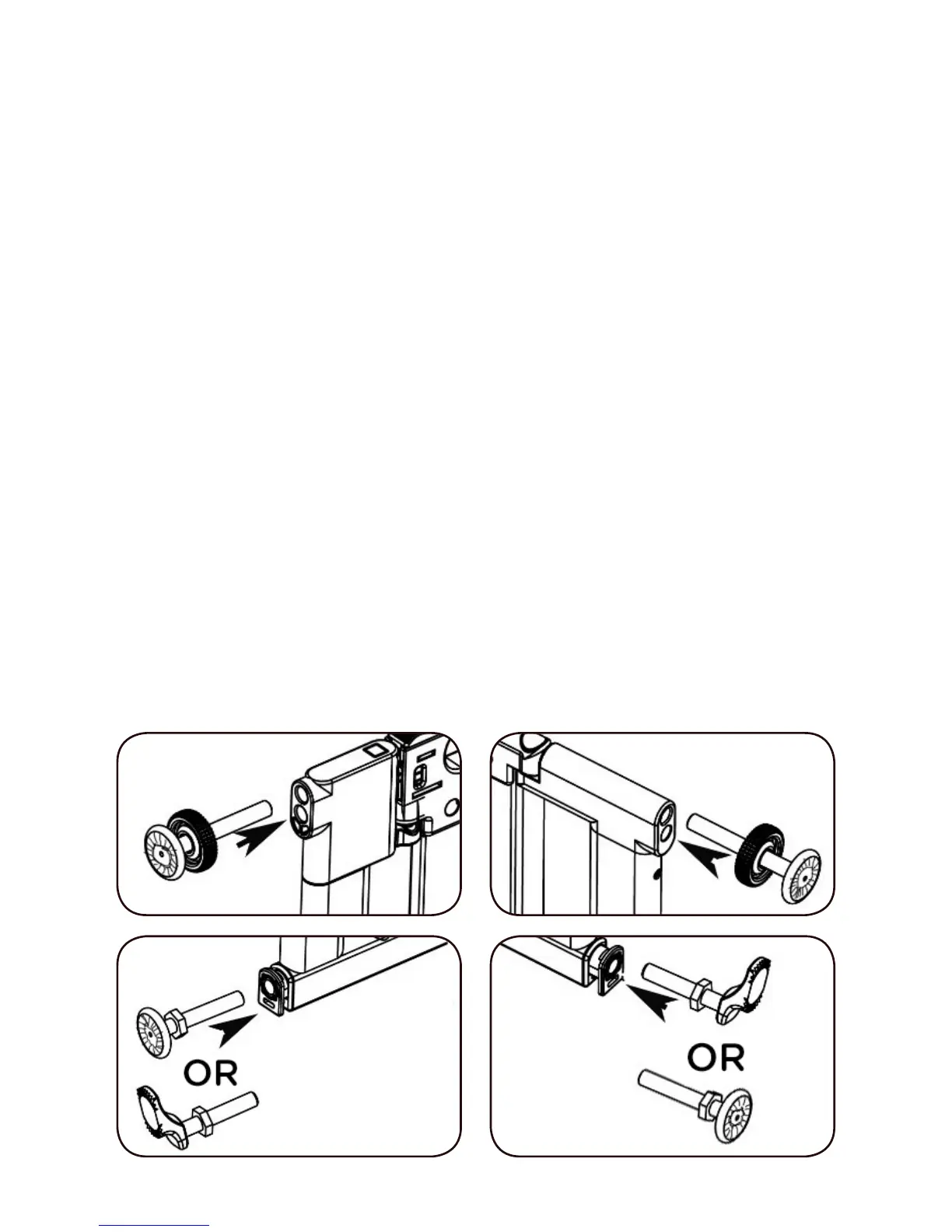

Step 4
Slide the Bottom Spindles with nuts (or QRF Spindles™
with nuts if you have quarter round molding present)
into the Bottom Spindle Housings. Slide the Top Spindles
with hand wheels into the upper hole of the Top Spindle
Housings .
Note: If using Extensions, insert extensions into the gate
(with Spindle Housings inserted in the gate) as needed for
proper fit, and put the Spindles into the last extensions.
HINT – It is easier to complete the following steps if you
have a helper, one holding the gate in place while the
other installs the gate.
