Chapter 4: Equipment
Unpacking
During the unpacking procedure, check for the following:
The equipment list will vary depending on site specifications, but the following list is a typical configuration
• All parts on the packing list have been included in the box
• All fitting openings are unobstructed
• The equipment has not been damaged in shipment
Equipment List
1. Top-Loading or Bottom-Loading AP-4 with support harness
2. Single stage filter/regulator with:
•
5 Micron filter with auto drain tap
A single stage 5 Micron particulate air filter/regulator has a manual or an optional automatic drain and is installed
on the system air supply line. The filter/regulator removes particles and water droplets from the
air passing to the AP4+.
NOTE: Too much air pressure can result in low pump efficiency
•
Pressure regulator with gauge
•
Maximum operating pressure 120 P.S.I. (8.4 Kg/cm²)
3. Pump Cycle Counter (PCC)
4. Pump support system:
• pac lleW
• epor eriw SS ro ylbmessa knil-kciuq htiw epor troppus enelyporpyloP
(Alternate materials as required)
Single Stage Filter/Regulator
8
Maximum operating pressure 120 P.S.I. (8.4 Kg/cm²)
Part # 302468
For Standard Systems
Part # 302470
For Systems with Pump Cycle Counter

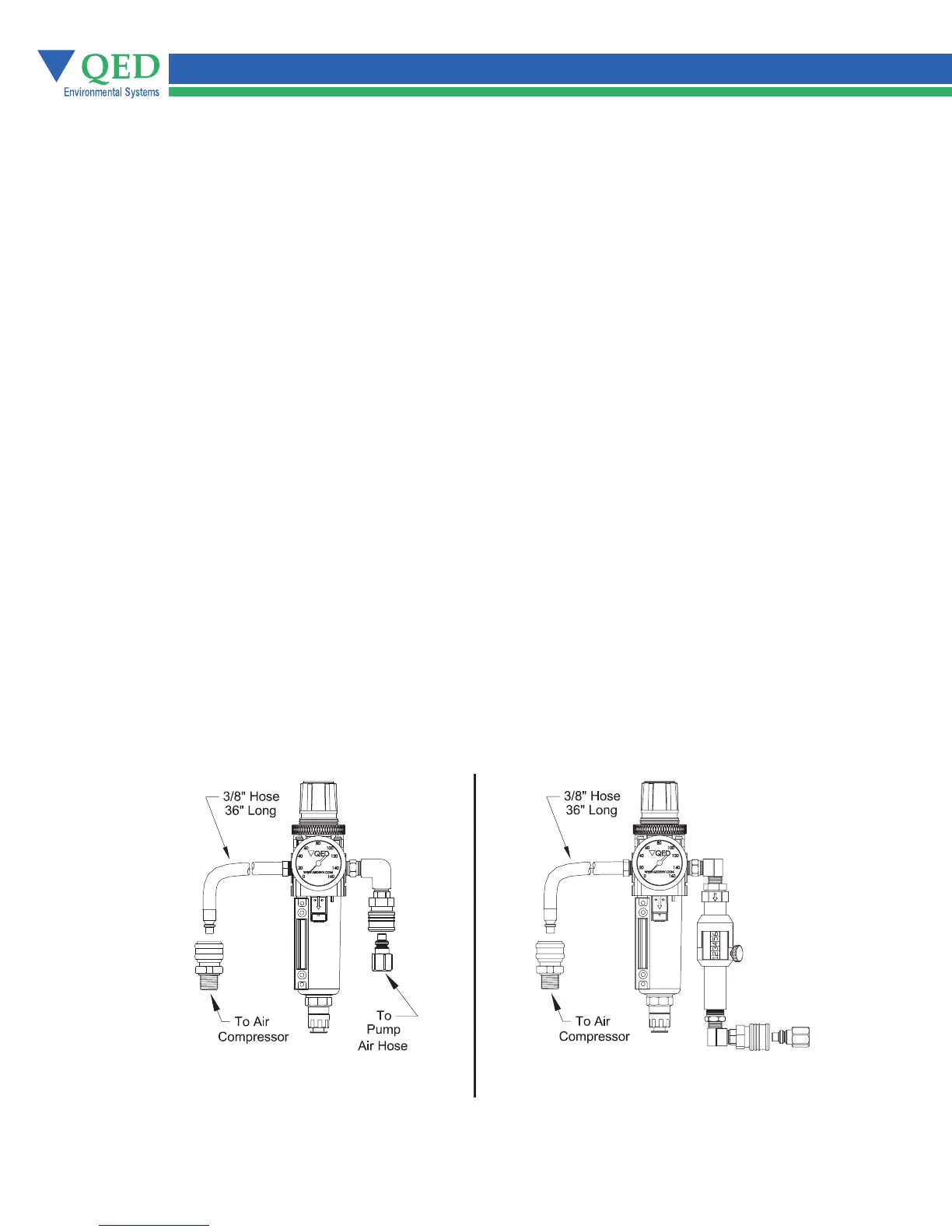

Figure 5 - Single Stage Filter/Regulator with Quick-Connects
