BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
3
7/24

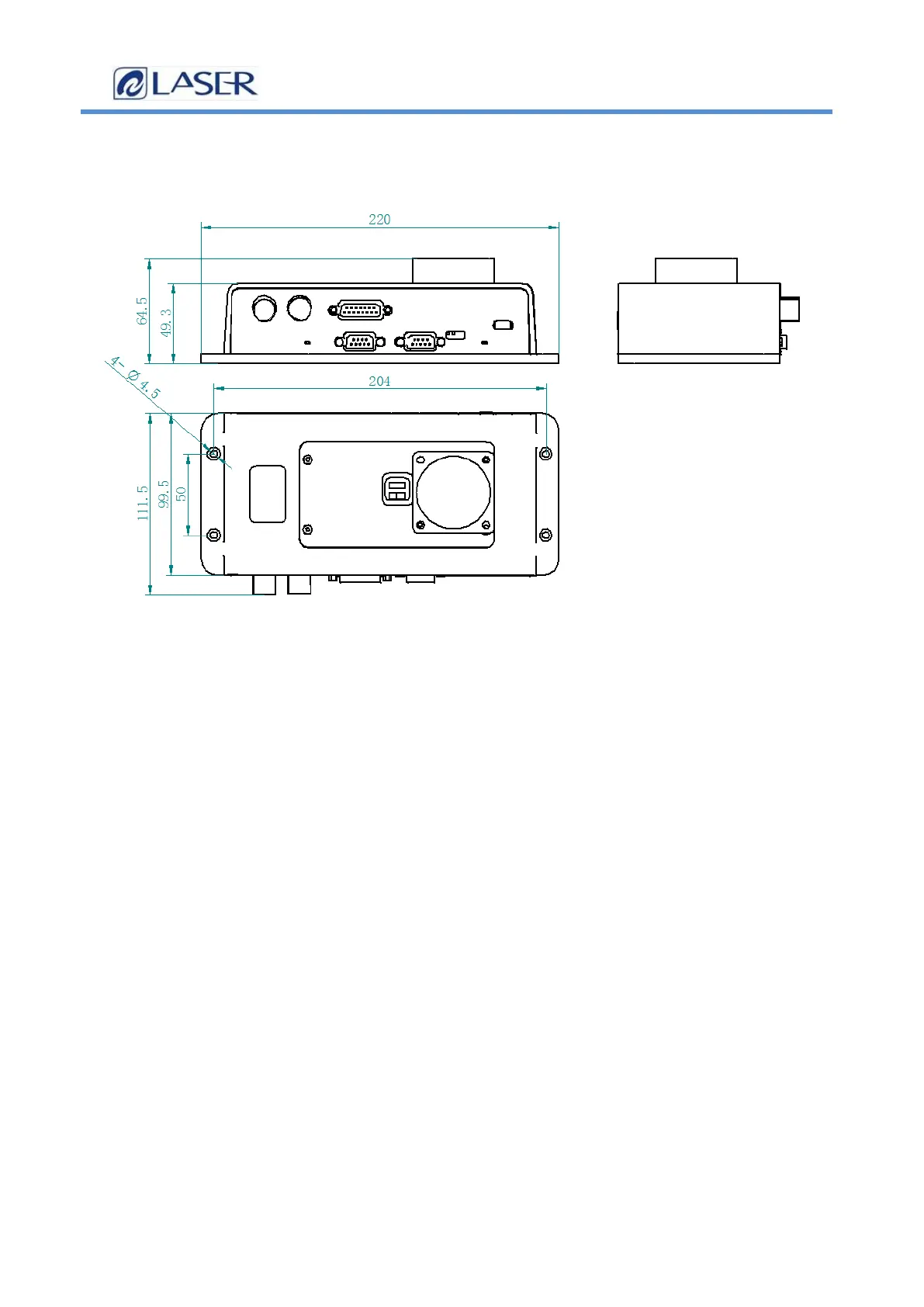

1.2.2 The installation size of the control box is as
shown in the following figure
1.2.3 Installation size of 15 V switching power supply
is shown in the following figure
