Qilin Laser Application Technology BWT20 - Fan and Wire Feeder Interfaces

BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
147/24
Table 2.7
pin signal defi
niti
on
expl
ain
1 CF trigger signal
The light condition is met when
triggered
2 DT Guide communication number
The light condition are
achieved when on
2.8 Introduction of the fan interface
The control box provides a dedicated 24V fan port interface position, independent socket,
not easy to insert wrong.

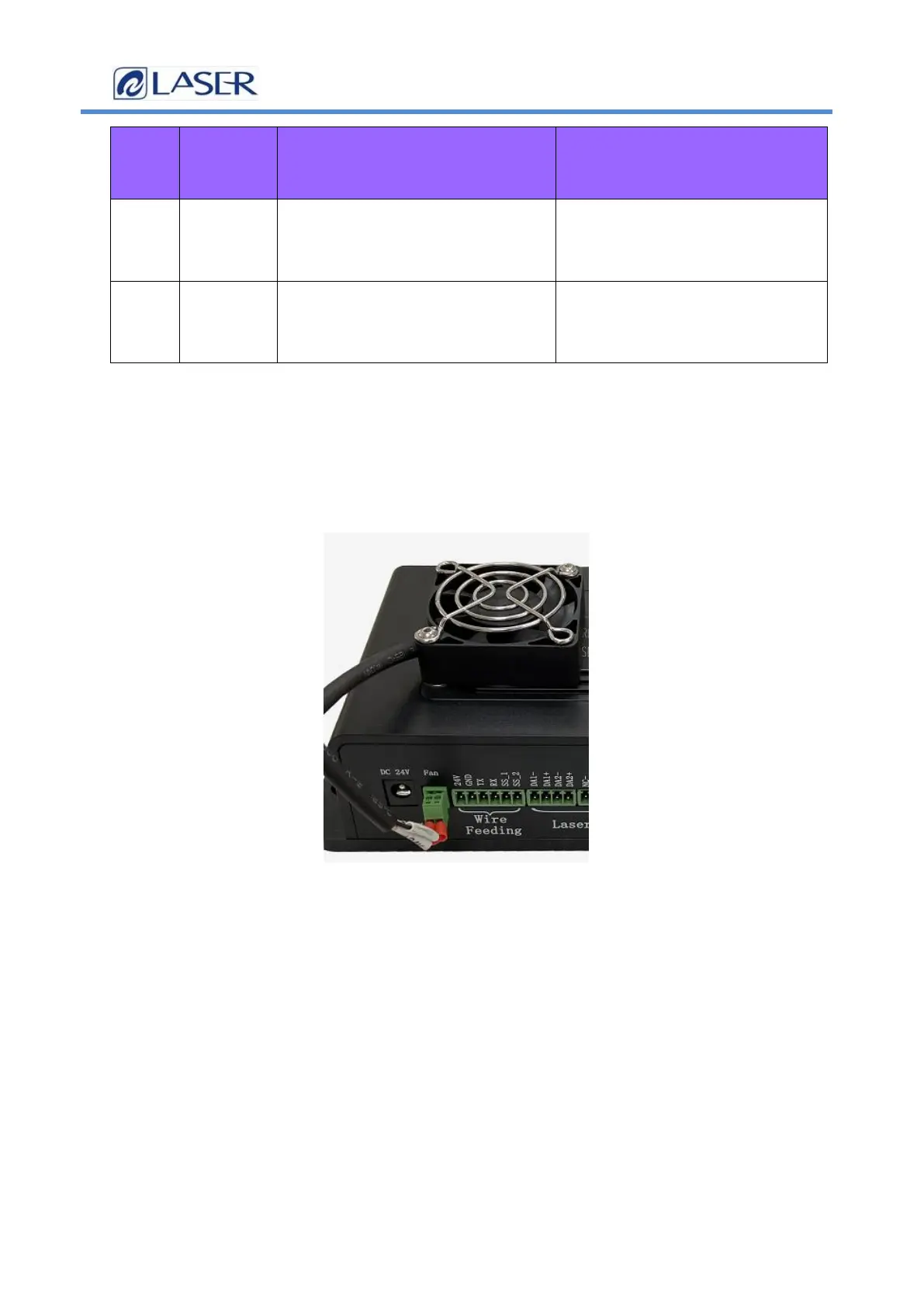

Figure 2.8 Schematic diagram of the fan interface
2.9 Control interface of the wire feeder
The control box provides a special communication interface for the control wire
feeder, and the 24V power supply is directly connected to the power input end of the
control box and can be provided
3A Current, Table 2.9 defines the control interface of the wire feeder.
