BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
187/24
10 DA 1- Analog voltage
output-
Reference to the power source
11 DA 2+ Analog voltage
output
For proportional valve adjustment, 0-
10V analog voltage,
12 DA 2- GND Reference to the power source

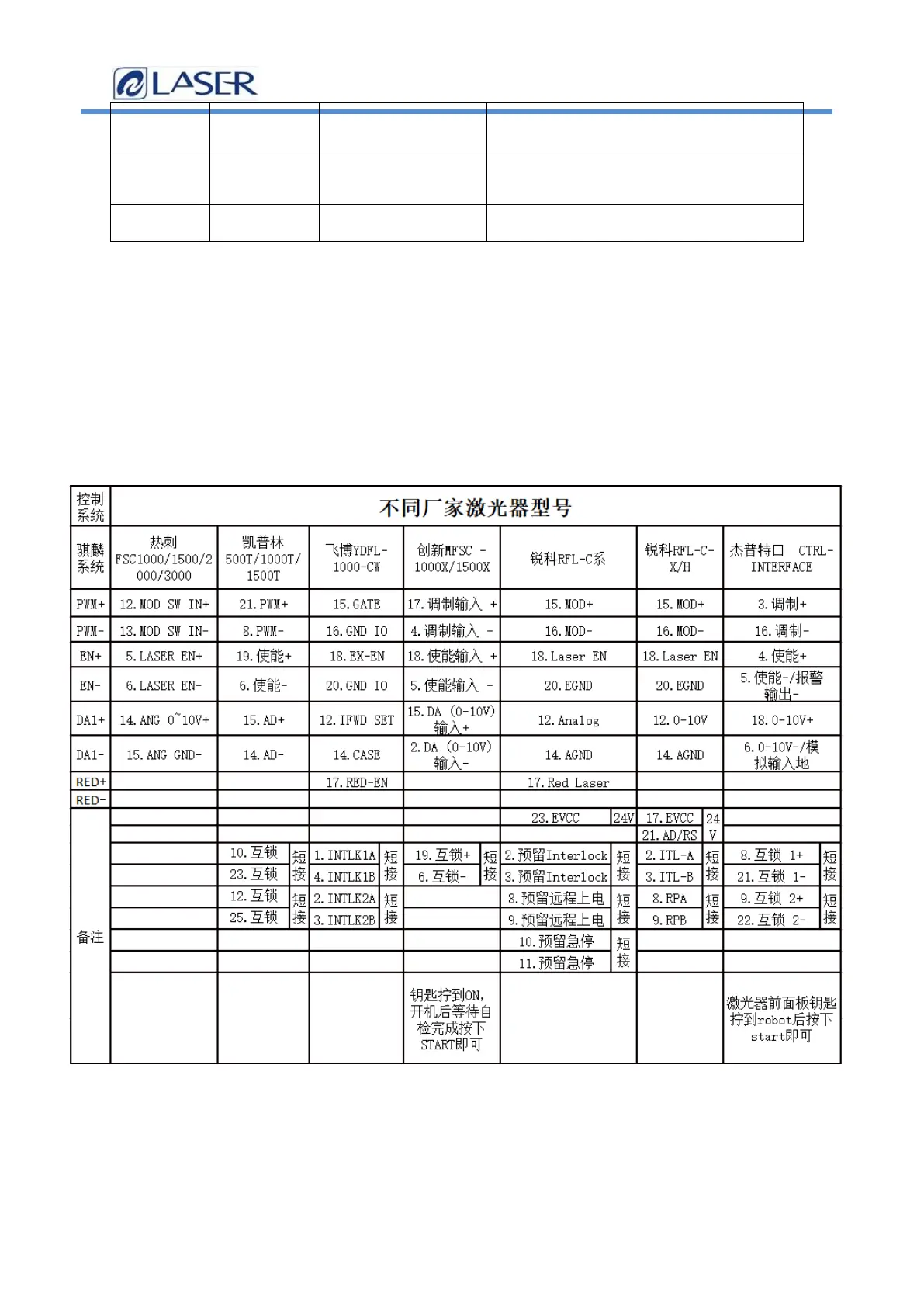

2.10, definition of laser wiring of different
manufacturers
Figure 2.10, Defindiagram of laser wiring of different manufacturers
