Qilin Laser Application Technology BWT20 - Dial Switch Configuration Settings

BWT20 Qilin double swing handheld laser
welding
system
user
manual
V1.0
217/24

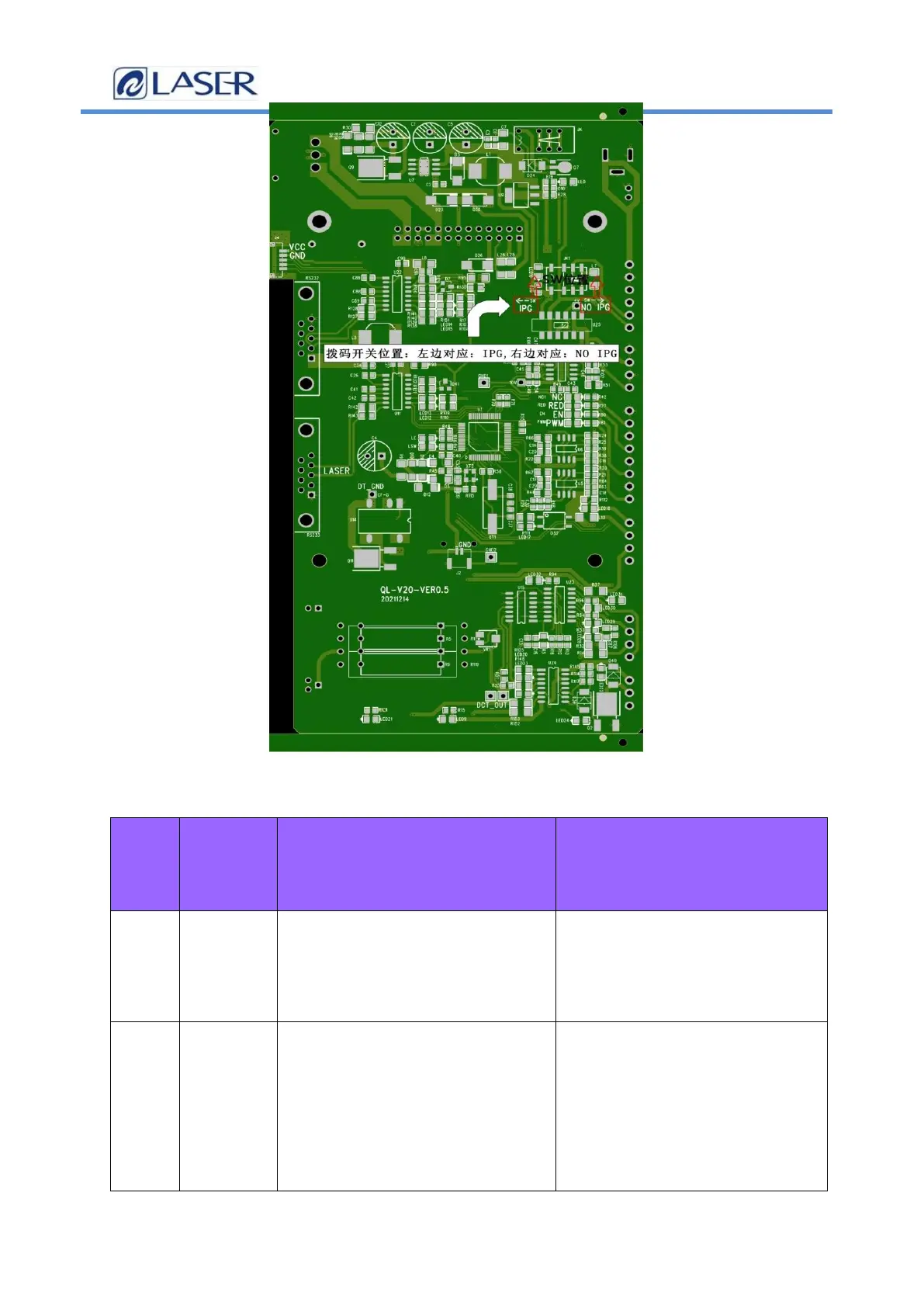

Figure 2.13, schematic diagram of dial switch
orde
r
numb
er
charact
eristic
defi
niti
on
expl
ain
1 IPG Laser control signal
PWM, EN, RED, NC output 5V
Power adjustment: 0-4V analog
voltage adjustable section
2 NO IPG Laser control signal
PWM, EN, RED, and NC with an
output of 24V
Power adjustment: analog
voltage adjustable section 0-
10V
