2 – Using QuickTools
QuickTools User Interface
59264-01 A 2-3
A

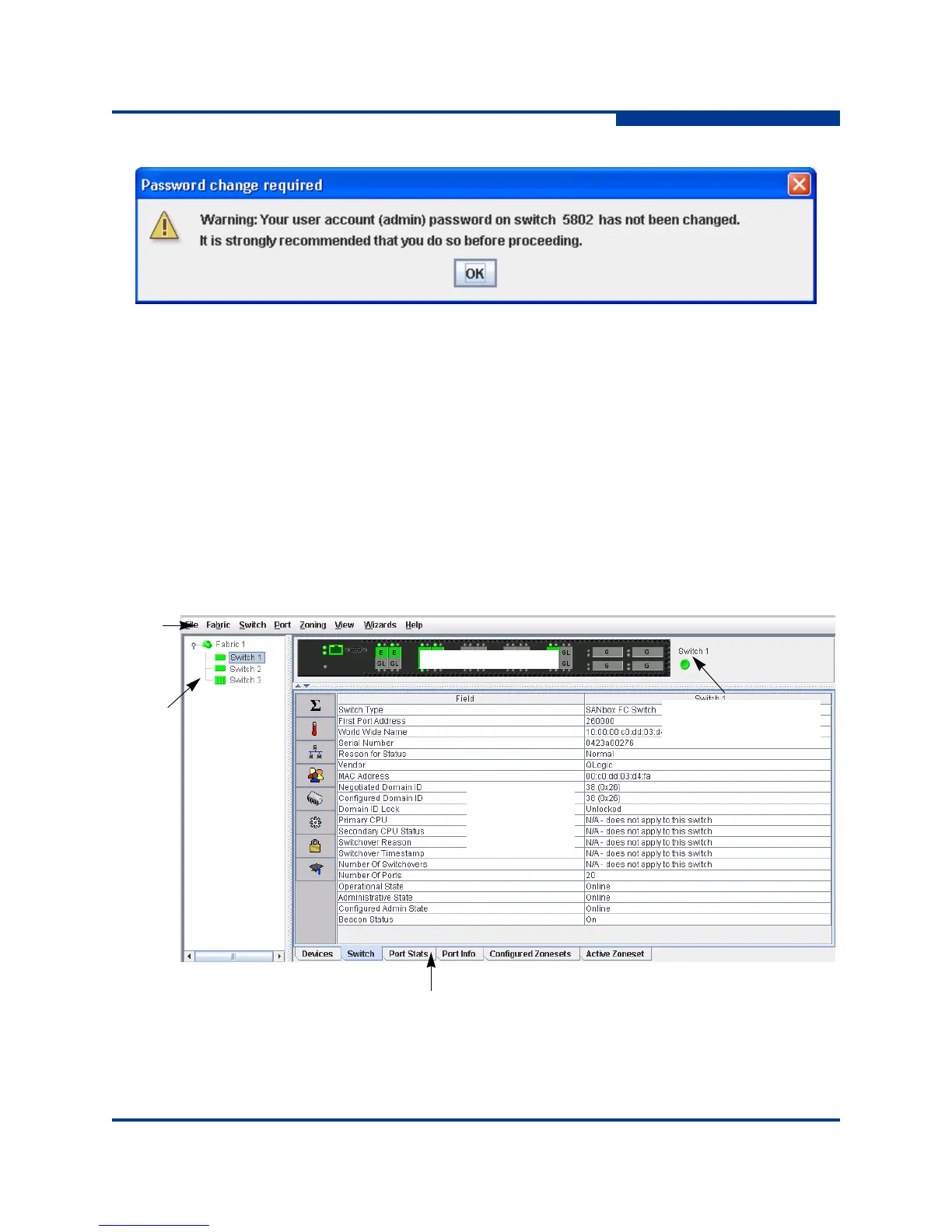

Figure 2-2 Password Change Required Dialog
QuickTools User Interface
The QuickTools web applet uses the faceplate and backplate displays to manage
the switches in a fabric. The interface (Figure 2-3) consists of a menu bar, fabric
tree, graphic window, data windows (some with buttons), and data window tabs.
The switch faceplate is displayed in the graphic window and shows the front of a
single switch and its ports. While there is no topology display, the fabric name is
displayed for reference in the fabric tree above the switch names. Click a switch
name or icon to display a different switch faceplate in the graphic window.
Information displayed in the data windows corresponds to the data window tab
selected.
Figure 2-3 QuickTools Interface
Data Window Tabs
Graphic Window
Fabric
Tree
M
enu
Bar
Data Window
Fabric/Switch Name
and Status
