10W HF Linear PA kit assembly 1.00 23

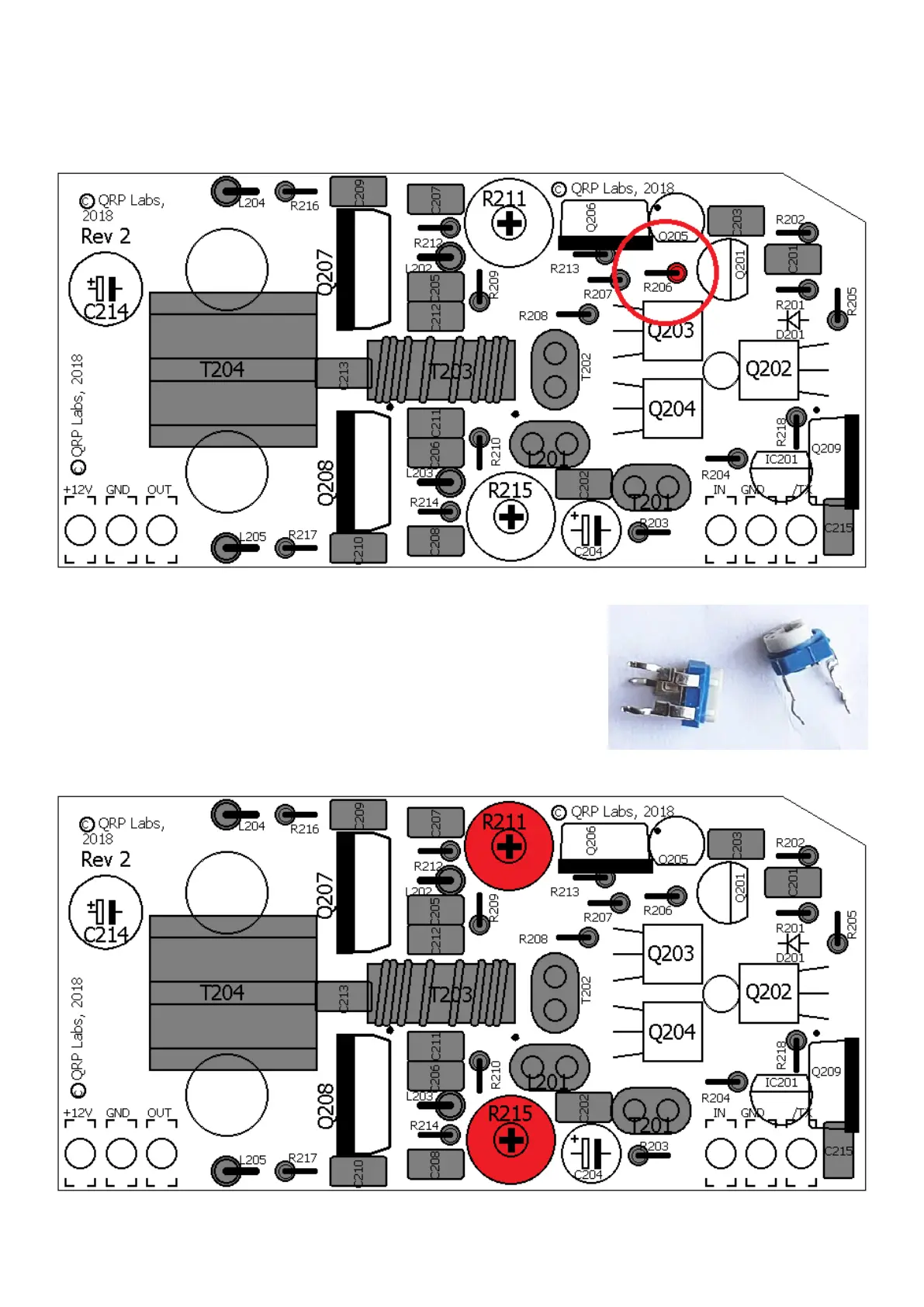

3.20 Install resistor R206
R206 is a 33-ohm resistor with colour code orange-orange-black-gold-brown.
3.21 Install trimmer resistors R211 and R215
These are trimmer resistors, with code “472”
Rotate the trimmer potentiometers all the way anticlockwise
at this time!
