EN
17

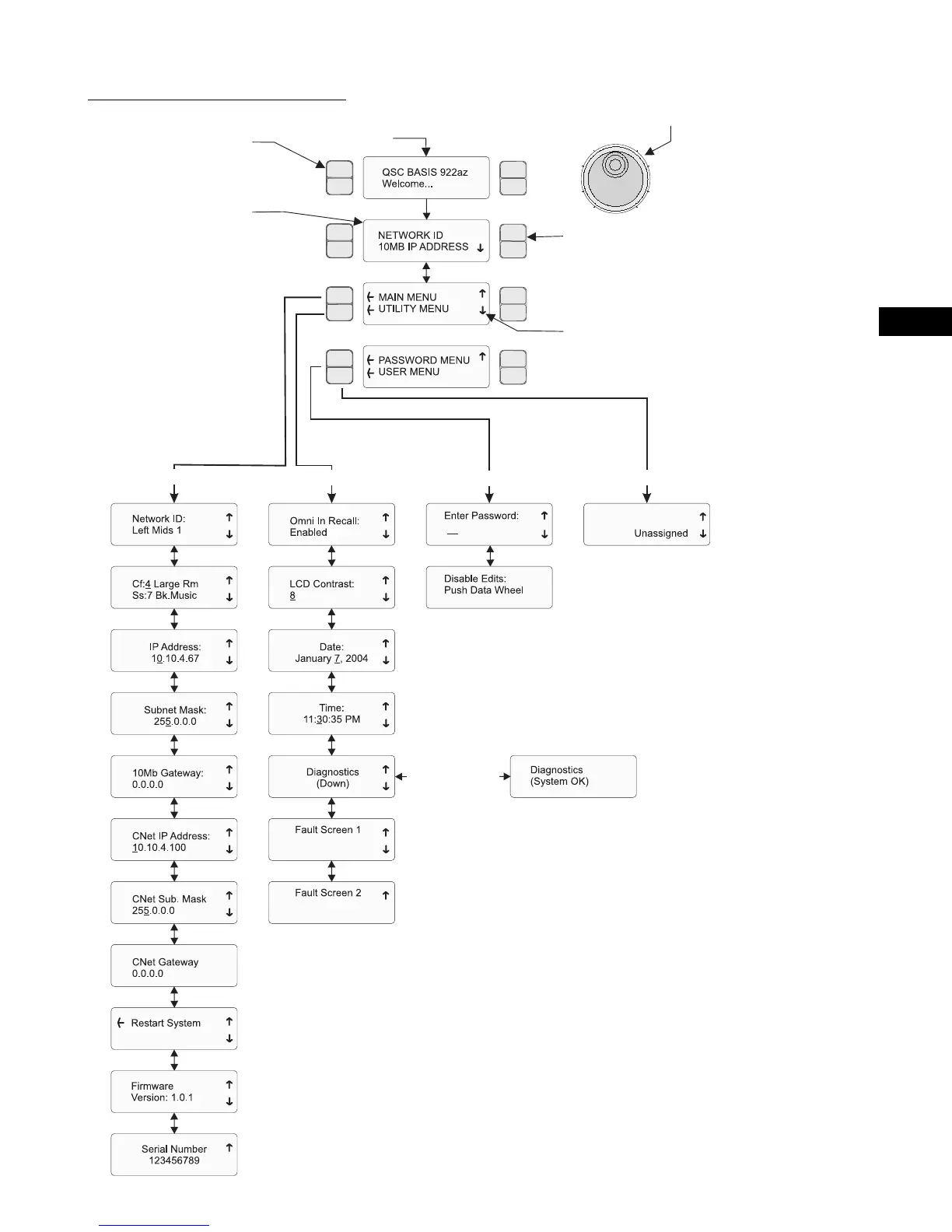

LCD Navigation Map (typical)
Left side buttons have screen
dependent functions.
This read-only screen is the
“out of the box” default dis-
play after power up. This is
the most desired information
when first setting up a net-
work system. Once user
moves to a different screen,
the last screen accessed
becomes the new power up
default.
Boot Screen
Right side buttons serve
as up/down navigation.
Arrow characters indi-
cate right side button
context. If additional
menus are available, the
arrow character will be
shown.
Main Menu Screens:
*Note: After successful pass-
word entry, all screens with edit-
able parameters will have read
write capability. Without pass-
word entry, these screens will
be read-only.
Utility Menu Screens:
Password Log-in Menu*:
Custom User Menus:
If no faults exist
Use rotary data wheel to edit data. Rotate to
move cursor and push to accept change.
To Next Page
