QSC Q-SYS Core 110f User Manual

7
TD-001541-01-B

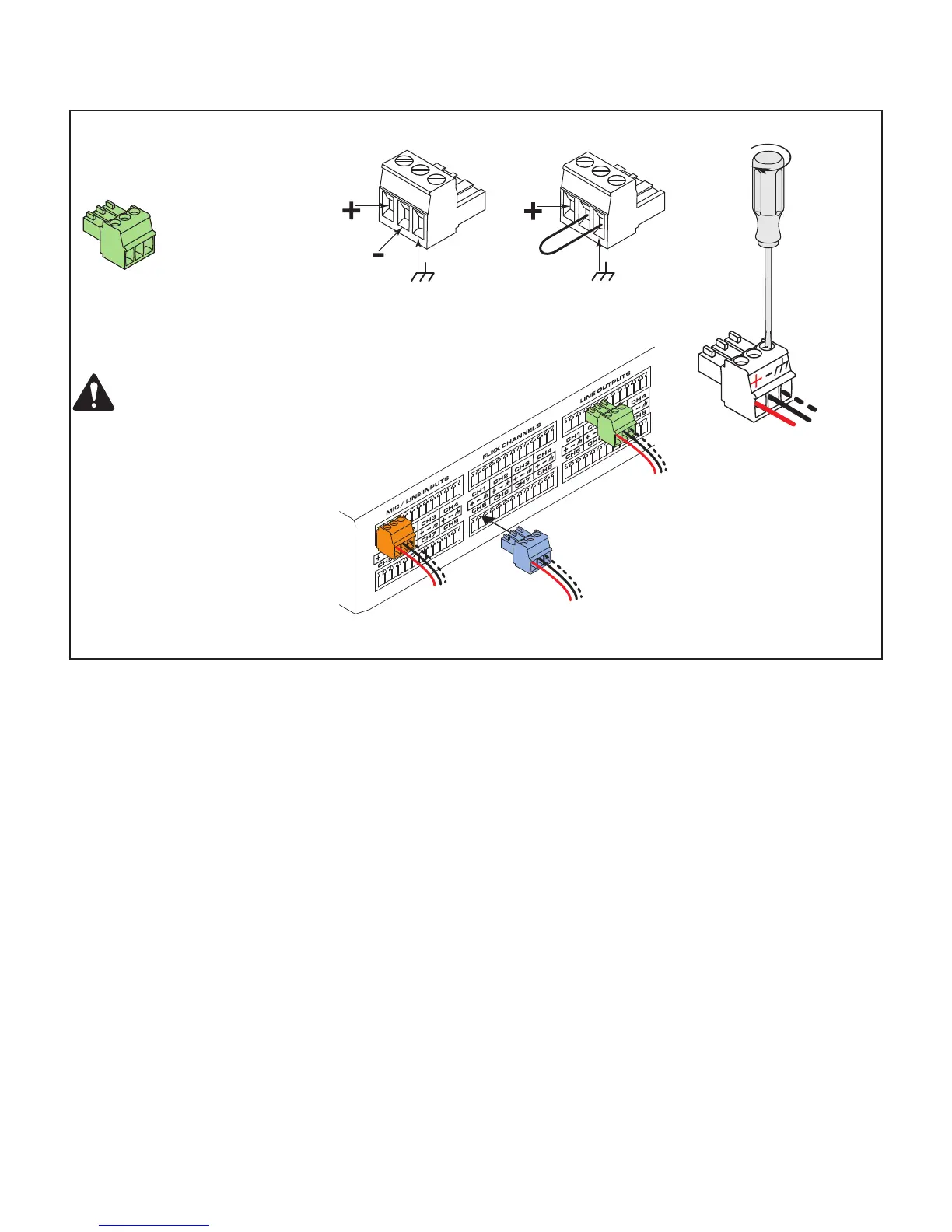

Connections
Input / Output Connectors
Figure 4 – Figure 7
3-Pin, color-coded, Euro Connectors
• Mic/Line Inputs (8 orange)
• Flex Channels (8 blue)
• Mic/Line Outputs (8 green)
CAUTION!: A single
channel consists of three
pins. It is possible to plug
in a connector that
straddles two channels. Be
sure that the plugs do not
straddle two channels.
— Figure 4 —
Balanced
— Figure 5 —
Unbalanced
— Figure 6 —
— Figure 7 —
