178.738UK User Manual

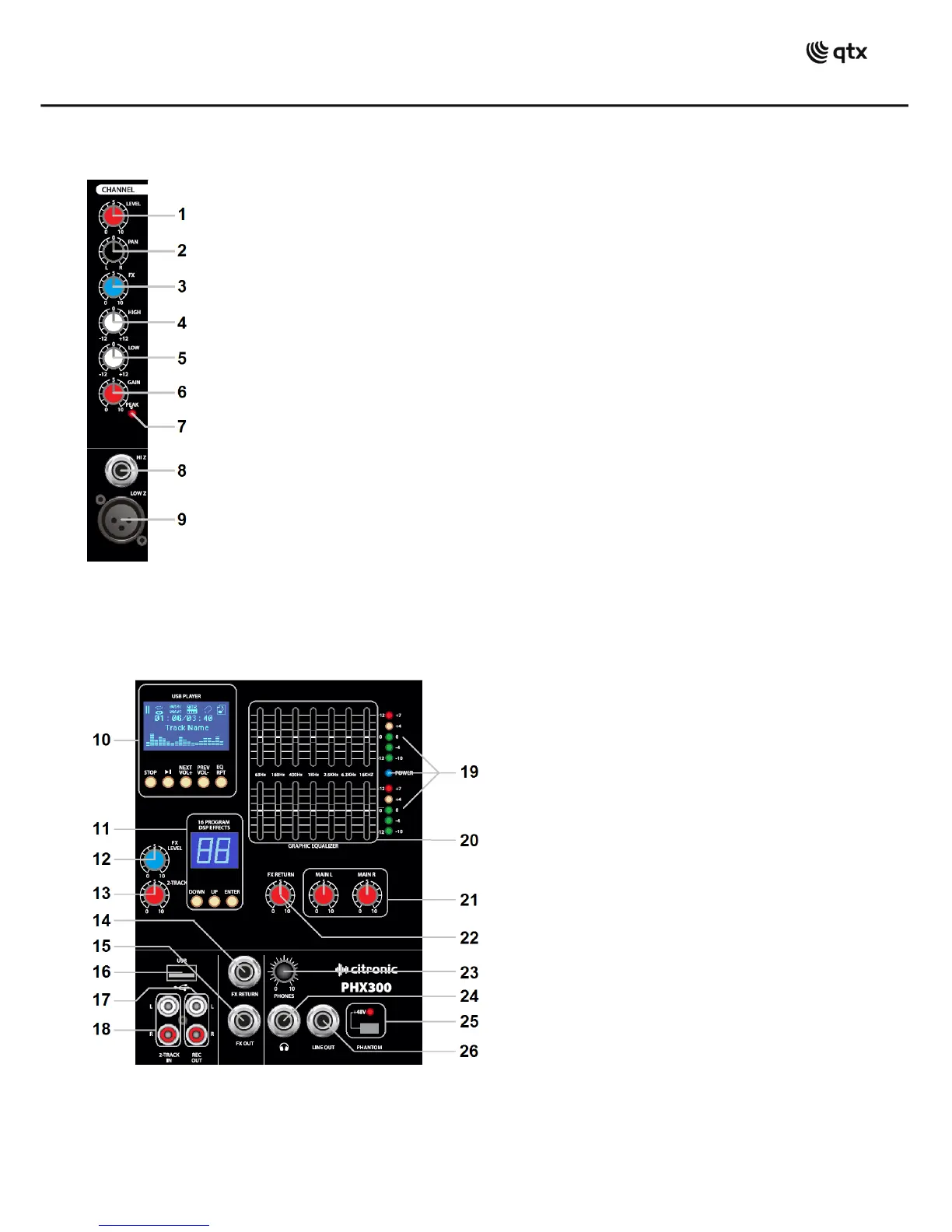

Input Channel
1. Channel output level (volume)
2. Pan control (left/right)
3. DSP Effects level
4. High frequency EQ control
5. Low frequency EQ control
6. Channel Gain level
7. Peak level LED indicator
8. High impedance input (e.g. Line / instrument) - unbalanced 6.3mm jack
9. Low impedance input (e.g. Microphone) - balanced XLRF
Master Section
10. USB player control & display
11. DSP effects (FX) section
12. FX send level
13. 2-track input level
14. FX return 6.3mm jack
15. FX out (send) 6.3mm jack
16. USB device input
17. REC output connectors (L+R RCA)
18. 2-track input connectors (L+R RCA)
19. Power and level meter LEDs
20. Graphic EQ frequency sliders
21. Main Left and Right output level
22. FX return level
23. Phones output level
24. Phones output - stereo 6.3mm jack
25. Phantom power switch (+48V)
26. Line out 6.3mm jack
