This initial fit up – HyperCut Mower to ATV - should take place on a flat hard surface that
has enough room to mount the mower to the ATV, and then manoeuvre the assembled unit!

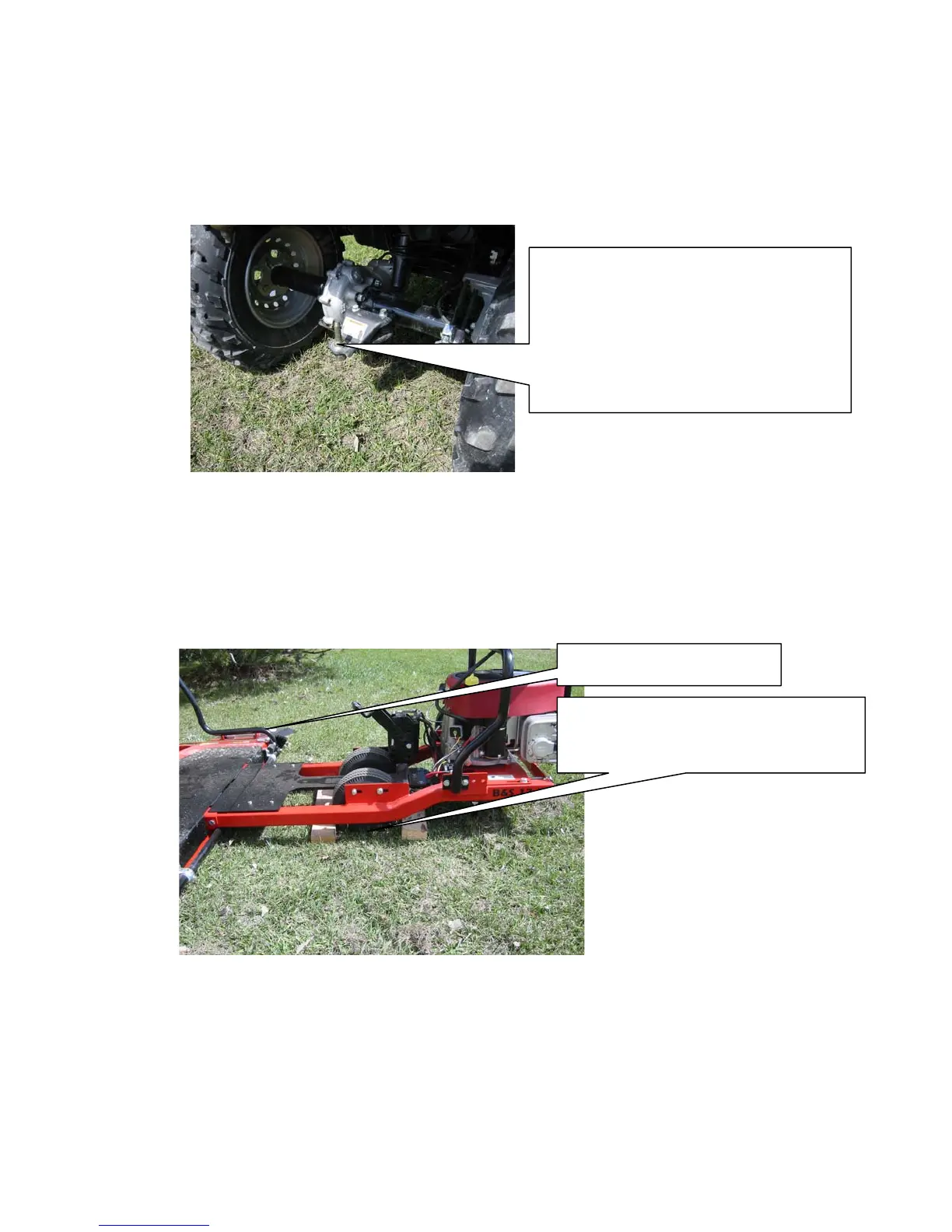

Step 1 - Install the supplied Pin – Part # 88652 in the ATV as shown – place the pin through the
top and the large washer on the top of the ATV hitch. Assemble the lock washer from the
bottom and tighten the nut with a wrench or socket.
NOTE – tighten the hitch pin securely – to
150 ft-lbs (230.5 Nm). The HyperCut is
pushed” by the ATV throu
h the hitch pin,
this must be secure as instructed - failure
to do so will result in dama
e to the ATV
or the mower and/or both – or personal
injury to the operator.
INFORMATION – the HyperCut Mower has a universal mount system that accommodates a 7.5”
or taller ground to hitch height. If your mower has a hitch height that is between 7.0” to 7.5”
(measured from the ground on hard surface - to the top of the ATV hitch) it is still possible to
mount the mower to your ATV, but it will require some additional care in mounting and
dismounting the ATV from the mower.
Step 2 - Block the pneumatic wheels of the mower with two wooden 2” x 4”s.
NOTE – ALWAYS Block the Wheels on
your HyperCut Mower when attaching or
detaching the mower from your ATV!
Mower Hei
ht Control Lever
Step 3 - Pull inwards and push to the full forward position on the mower’s height control lever to
make the deck as low to the ground as possible to make it easier to reverse the ATV over the
mower deck.
Step 4 – Back the ATV up over the mower deck in REVERSE - SLOWLY!
IMPORTANT - Hold your hand over the brake lever to assist in making quick unanticipated
stops when driving over the mower deck.
To Next Page
