Quadra-Fire 3100 Series Operating & Maintenance Instructions

3100 ACT Wood Stove Series
Page 26
250-6103C December 6, 2004
R
Item Part Name
1 Air Control Rods
2 Ash Removal Grate
3 Ash Pan
4 Ash Removal Door
5 Baffle, Fiberboard
6 Blower Assembly
7 Ceramic Blanket
8 Door Assembly
9 Door Handle Assembly
10 Leg Mounting Brackets
11 Legs, Cast
12 Manifold Tubes (4)
13 Oak Trim for Pedestal (2)
14 Pedestal Base
1
11
2
3
4
5
6
7
8
9
10
12
13
14

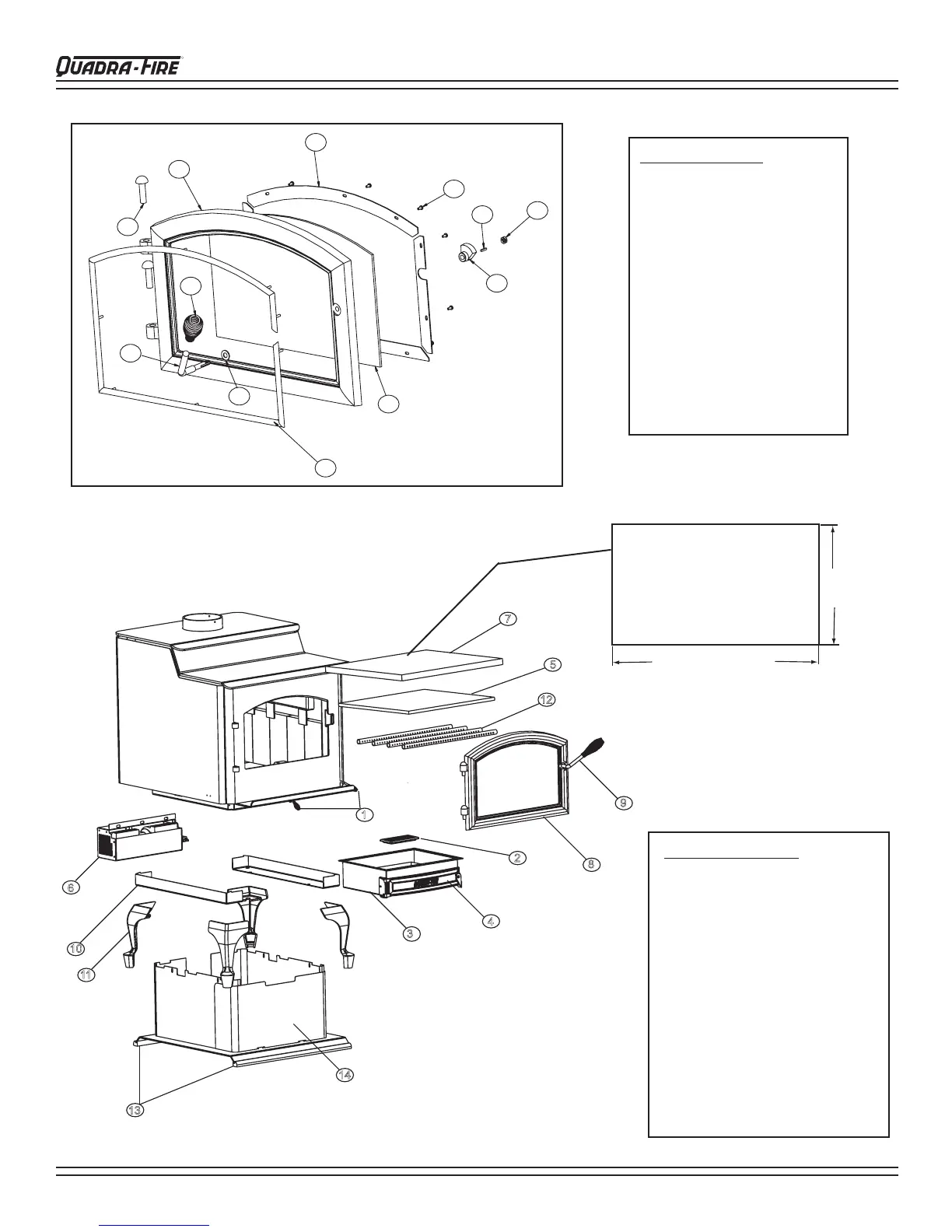

EXPLODED VIEWS
Item Part Name
1 Door, Cast
2 Door Handle
3 Glass, Replacement
4 Glass Frame Assembly
5 Glass Frame Screws (10)
6 Hinge Pins
7 Latch, Cam
8 Latch Cam key
9 Locking Nut
10 Spring Handle, 1/2”
11 Trim for Door
(Trim Door Assembly only)
12 Washer, Spacing
DOOR, GLASS AND DOOR HANDLE ASSEMBLY
MODEL SHOWN: STEP TOP UNI-BODY
1
2
3
4
5
6
7
8
9
10
11
12
14-1/4"
(362mm)
19-1/2" (495mm)
Ceramic Blanket

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
