Quadra-Fire 3100 Series User Manual

3100 PEDESTAL MODELS
1. Kit includes two 1” (25mm) rope gaskets to be tucked under pedestal to seal off both sides.
2. Floor installation: Cut a 4” (102mm) minimum hole in the floor to accommodate outside air piping. Use 4”
(102mm) minimum metal flex or rigid pipe to directly connect outside air to the unit or into vented crawl space.
Install rear cover over hole in rear of pedestal. Use the rodent screen supplied to cover the hole in the floor or at the
outside opening. Seal between the floor and the pipe with silicone to prevent moisture penetration.
3. Rear/wall installation: Cut a 4” (102mm) hole in outside wall to accommodate outside air piping. Install rear inlet
with four screws. Use a 4” (102mm) metal flex or rigid piping to directly connect outside air to stove intake. Use a
termination cap equipped with a rodent screen (obtain from venting manufacturer). Seal between the wall and the
pipe with silicone to prevent moisture penetration.
3100 LEG MODELS
1. Front cover plate attaches to firebox bottom below ash lip with two ¼”-20 mounting screws.
2. Mount rear air intake cover plate with two mounting screws.
3. Install each side cover with two 8-32 screws.
4. Floor installation: Cut a 3” (76mm) minimum hole in the floor to accommodate outside air piping. Use 3” (76mm)
metal flex or rigid piping to directly connect outside air to the unit or into vented crawl space. 4” (102mm) pipe is
recommended on a 10’ (3048m) run or longer. (Obtain an adapter from the venting manufacturer to change from 3”
to 4” pipe.) Use the rodent screen supplied to cover the hole in the floor or at the outside opening. Seal between the
floor and the pipe with silicone to prevent moisture penetration.
5. Rear/wall installation: Cut a 3” (76mm) hole in outside wall to accommodate outside air piping. Use 3” (76mm)
metal flex or rigid piping to directly connect outside air to stove intake. Use a termination cap equipped with a
rodent screen (obtain from venting manufacturer). Seal between the wall and the pipe with silicone to prevent
moisture penetration.
Part #831-1740
Part #831-1730
Front cover
Rear air intake
cover plate
Side cover
Front cover
Page 16
Rodent screen
Rear inlet (wall)
Rope gasket
Rear cover (floor)
Rope gasket

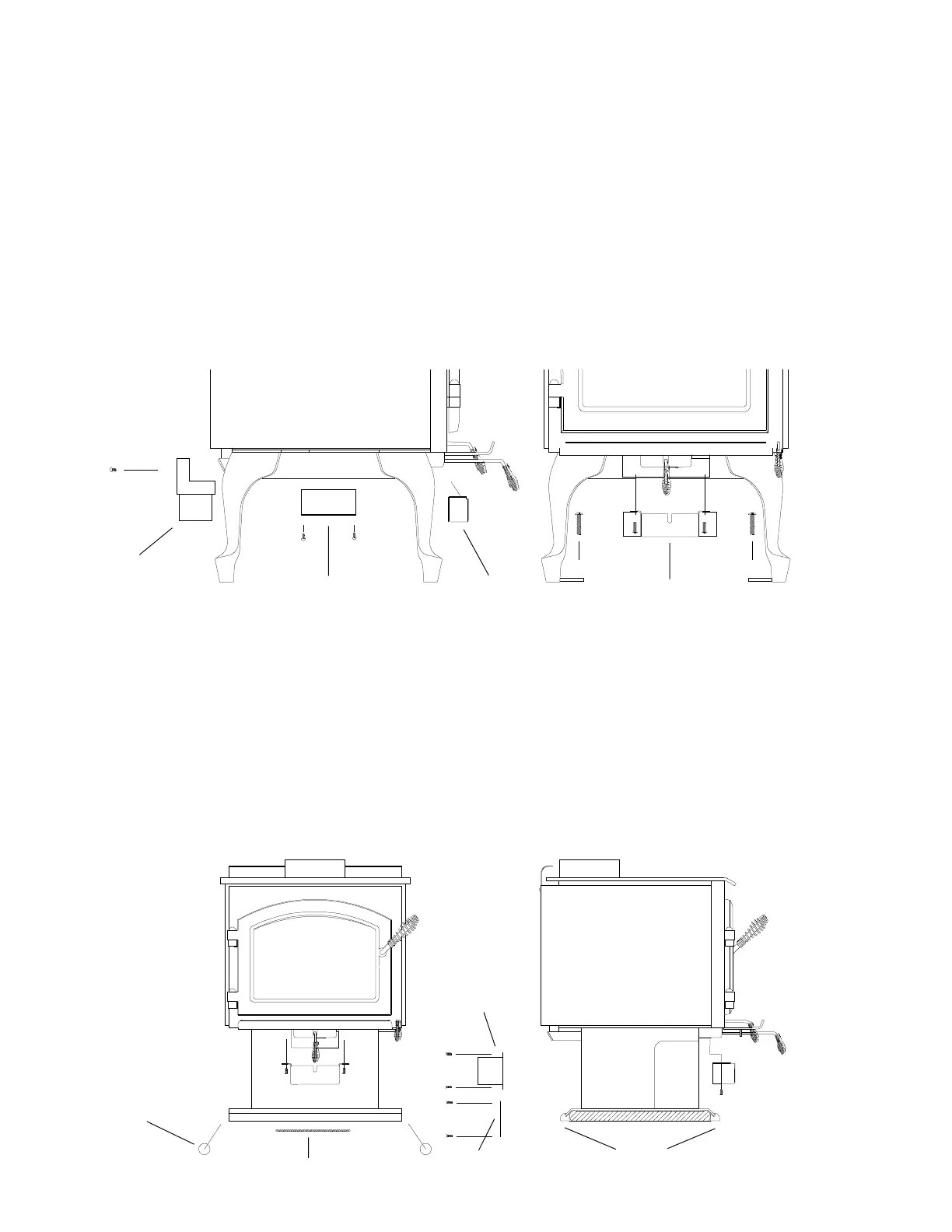

OUTSIDE AIR KIT INSTALLATION

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
