Quadra-Fire 3100 Series User Manual

24 1/2" (622mm)
9" (229mm)
21 1/2" (546mm)
2 1/4" (57mm)
23" (584mm)

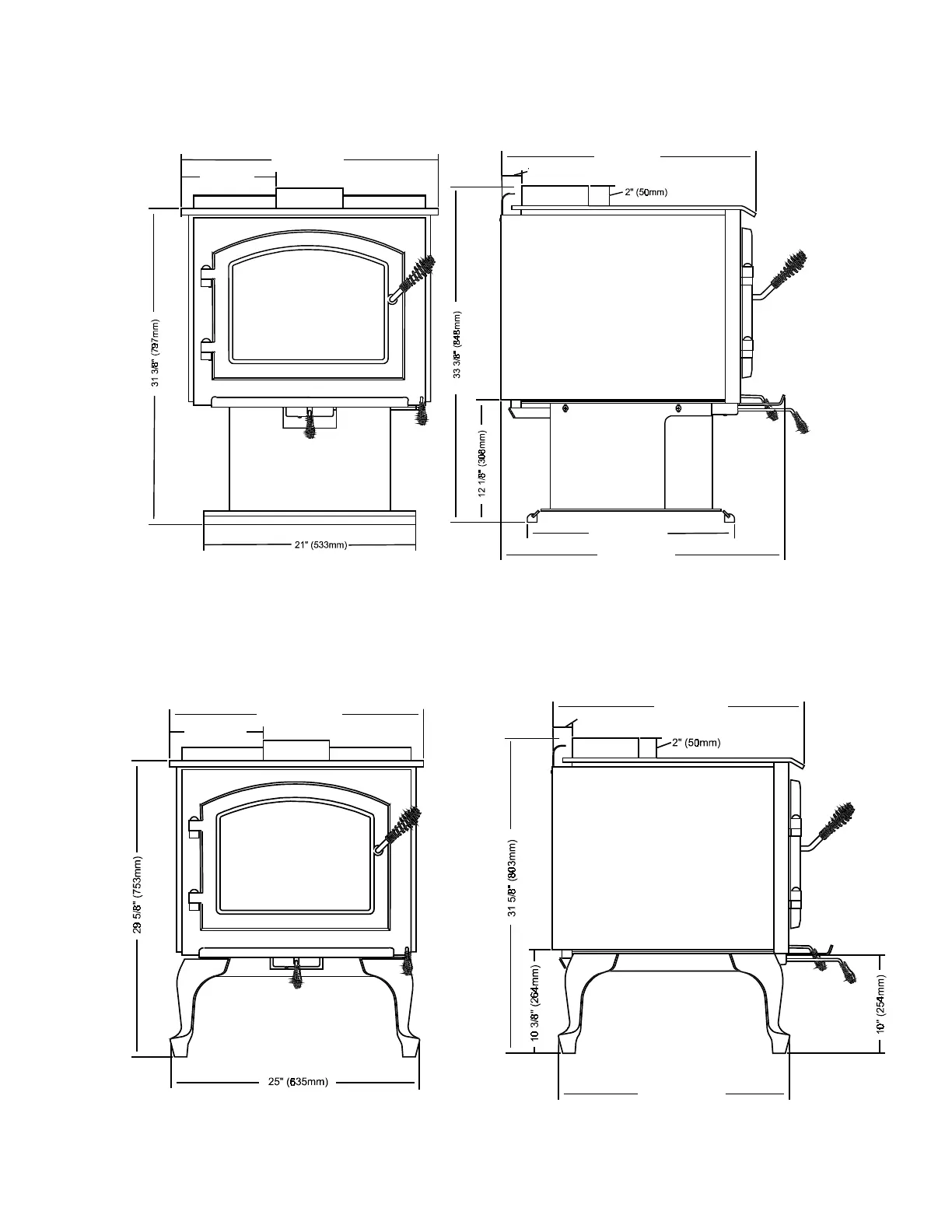

DIMENSIONS
Page 4
FIGURE 1b
FIGURE 1a
20 1/2" (521mm)
9" (229mm)
24 1/2" (622mm)
2 1/4" (57mm)
23" (584mm)
26 3/8" (670mm)
LEG MODEL
PEDESTAL MODEL

Quadra-Fire 3100 Series Specifications

General

EPA Certified	Yes
Flue Size	6 inches
Efficiency	78%
Firebox Size	2.0 cu ft
Log Length	18 inches
Depth	26.5 inches
Maximum Burn Time	10 hours
