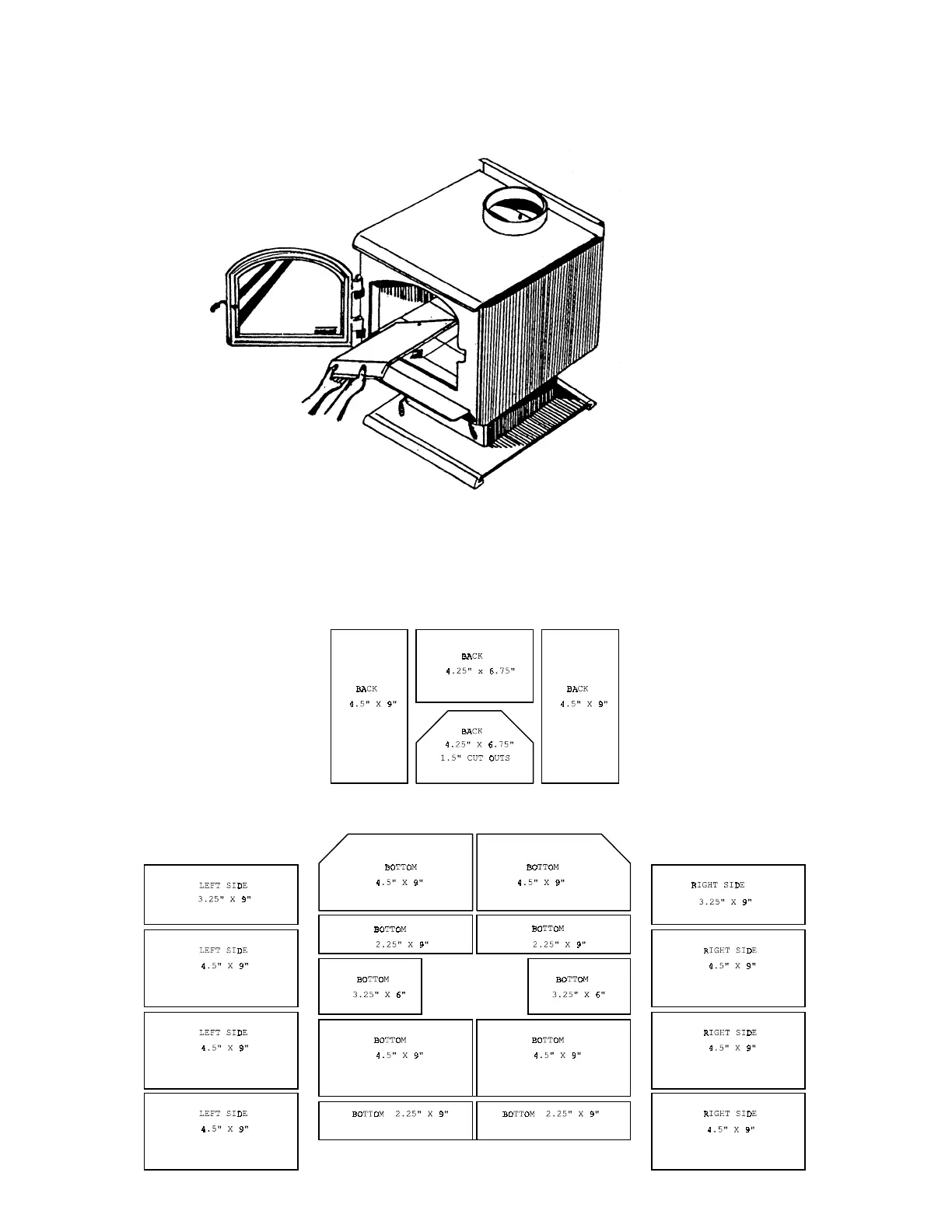

BRICK PATTERN

8. To install the baffle, repeat steps 2 through 7 in reverse. Be sure that the hole in the baffle is on its alignment

pin on the rear shelf.

7. Keep the baffle tilted as you lift it out the door.

BAFFLE REMOVAL AND INSTALLATION (cont.)

Page 26

Part #832-0550 Single brick

Part #832-3010 Brick set
