Page 8
7037-135G
August 31, 2010
R
4300 Wood Stove Series (ACC)
Floor
Protector
Chimney
Connector
Insulated " T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall
Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble
Floor
Protector
Thimble,
12" (305mm)
Of Brick
Ceiling Joist
Combustible Wall
Airtight
Cleanout Door
Fireclay Flue Liner
With Air Space
Sheathing
Eave
1" (25mm) Clearance
With Firestop
Rafter
Flashing
Concrete Cap
Outside Air
Termination Cap
Outside Air Rear Vent
Spark Arrestor Cap
Floor
Protector
Chimney
Connector
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing

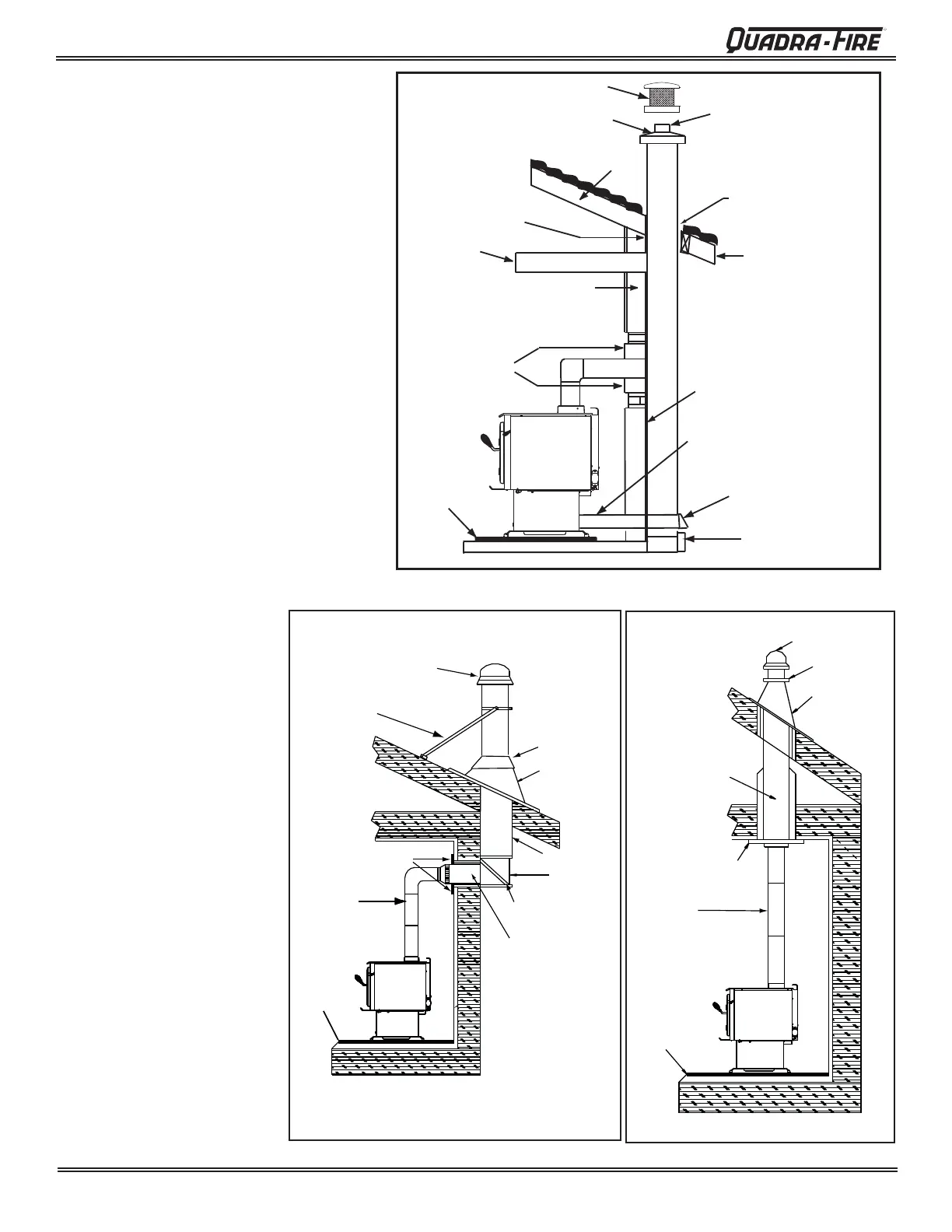

Figure 8.3 Interior Prefabricated ChimneyFigure 8.2 Exterior Prefabricated Chimney
Figure 8.1 Masonry Chimney
H. Typical Stove Systems
Stove system with masonry chimney
consists of:
• Stove
• Chimney Connector (stove pipe)
• Thimble
• Masonry Chimney
• Hearth Pad Floor Protection
• Stove
•
Chimney Connector
(stove pipe)
• Thimble (for exterior
chimney)
• Firestops
• Insulations Shields
• Storm Collar and Flashing
• Termination Cap
• Hearth Pad Floor Protec-
tion
Stove system with prefabricated
metal chimney consists of:
To Next Page
