4300 Wood Stove Series (ACC)
R
3
Dimensions and Clearances
28-11/16 in. (729mm)
26-5/16 in. (668mm)
6-11/16 in. (170mm)
16 in. (406mm)
11-1/2 in.
(292mm)
20-3/4 in. (527mm)
C
L
3-7/16 (87mm)
4-1/2 in
(108mm)
Outside Air
Connection
C
L

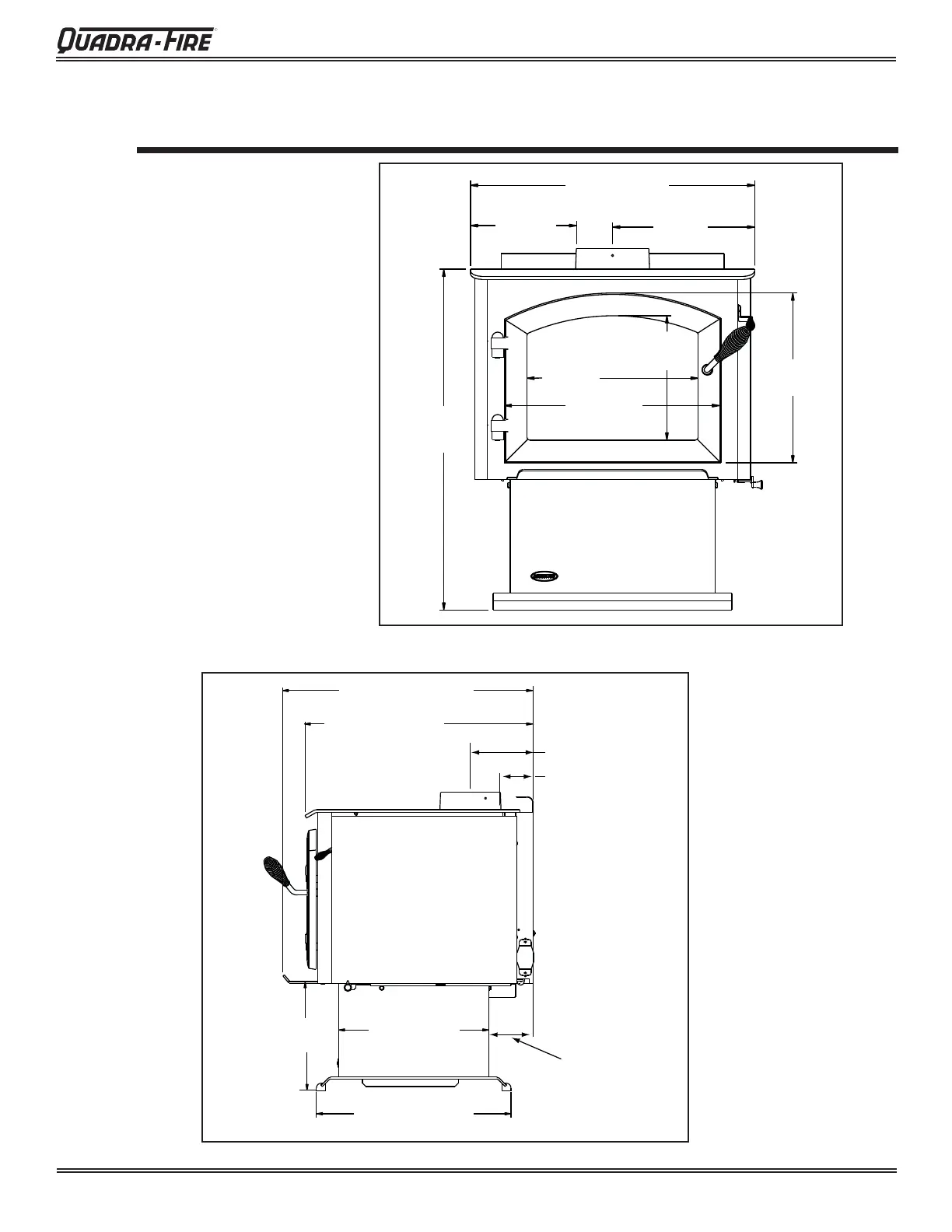

A. Appliance Dimensions
Figure 9.1 Front View
Figure 9.2 Side View
NOTE: Flue Collar size is 6 inch
(152mm) diameter (ID)
Millennium Model
14-15/16 in.
(373mm)
26 in. (660mm)
9-3/4 in.
(247mm)
13 in.
(330mm)
31 in.
(762mm)
15-1/16 in.
(383mm)
10-15/16 in.
(271mm)
19-1/16 in.
(475mm)
C
L
