Quadra-Fire PS35-C - Component Locations

30 04/217058-805F
Figure 30.2
Figure 30.1
Figure 30.3

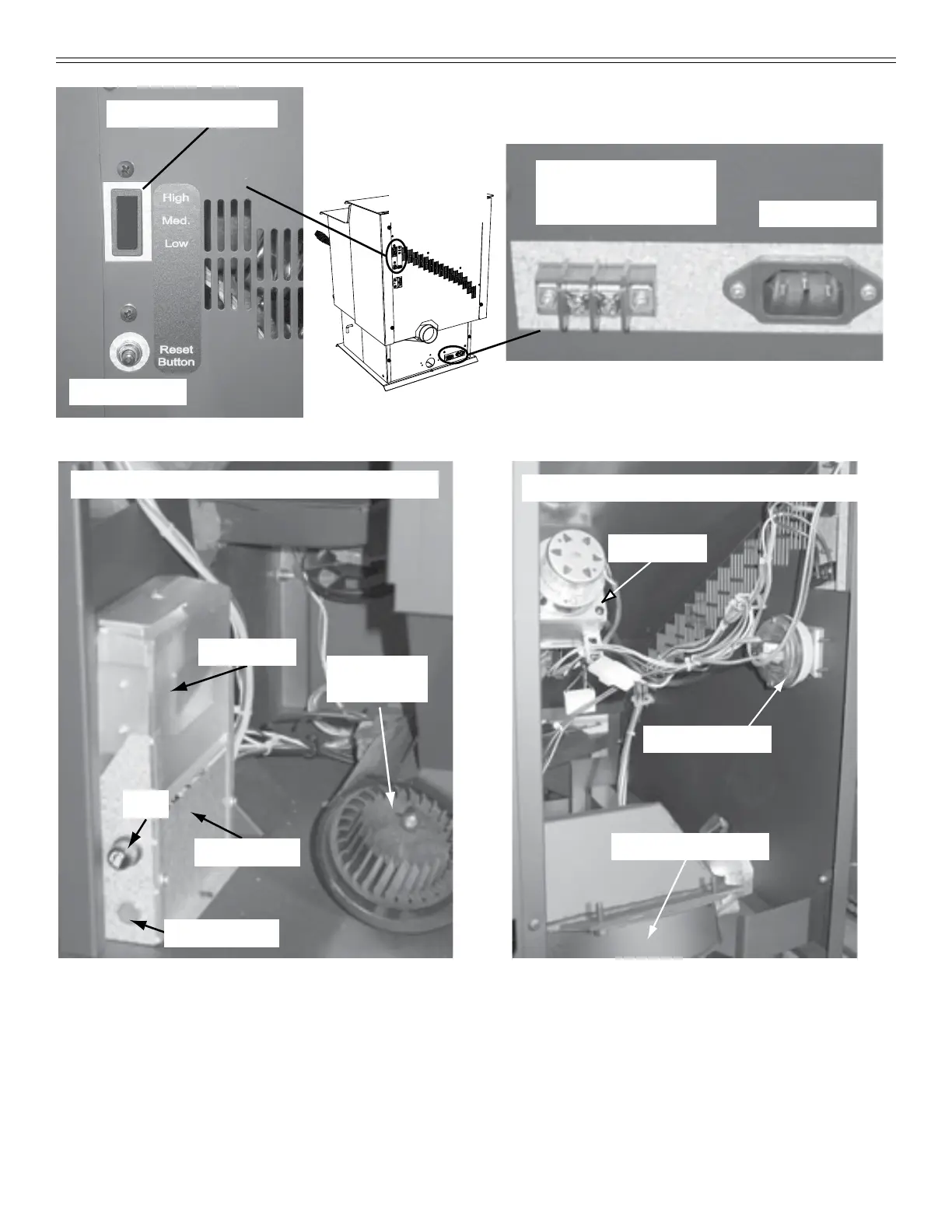

B. Component Locations
Convection
blower
LOCATED BEHIND LEFT SIDE PANELS
Control Box
Junction Box
Red Call Light
Fuse
LOCATED BEHIND RIGHT SIDE PANELS
Feed Motor
Vacuum Switch
Combustion Blower
Power Outlet
Terminal Block
Center 2 Screws for
Thermostat Wires
Back of
Appliance
Reset Button
Heat Output Switch
