Quadra-Fire QF130 - Install the Log Assembly

Quadra-Fire • QFI30, QFI35 • 2227-900 Rev. H • 1/1130

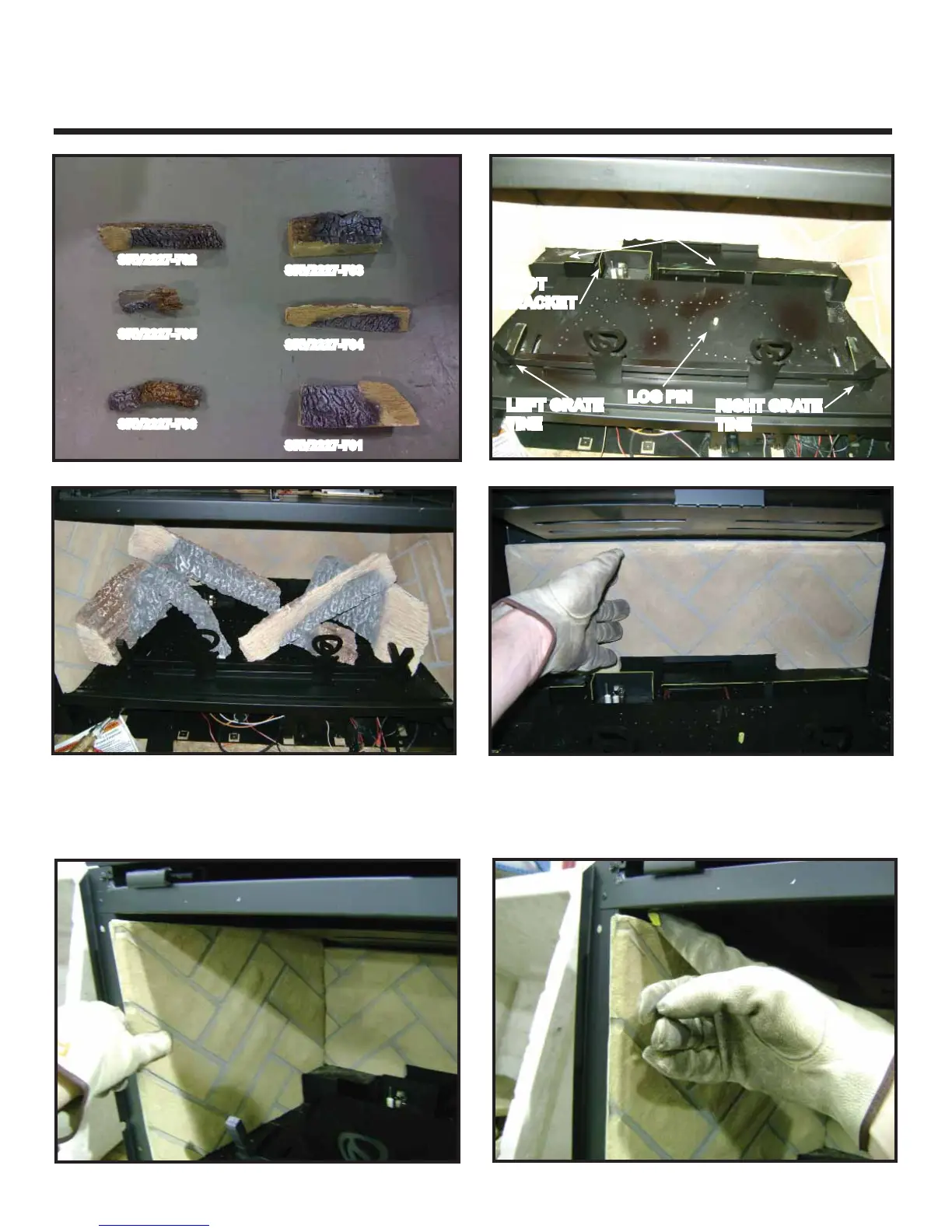

G. Install the Log Assembly
Log Set Assembly: LOGS-QFI30
Models: QFI30
CAUTION: Logs are fragile, handle with care. Install back refractory by placing it against the back of the fi rebox. See Figure
3. The back refractory must be held in the upright position until the side refractory is installed. Install the left side refractory
as shown in Figure 4. Bend the refractory tab down as shown in Figure 5. Repeat this step for the right refractory panel.
Figure 2. Refractory and Logs Installed
Figure 3. Install Back Refractory
Figure 4. Install Side Refractory
Figure 5. Bend Refractory Tab
SRV2227-702
SRV2227-703
SRV2227-705
SRV2227-704
SRV2227-706
SRV2227-701
Figure 1. Reference Points for Log Placement
LEFT GRATE
TINE
RIGHT GRATE
TINE
PILOT
BRACKET
LOG PIN
LOG SUPPORT
