33
Quadra-Fire • QFI30, QFI35 • 2227-900 Rev. H • 1/11

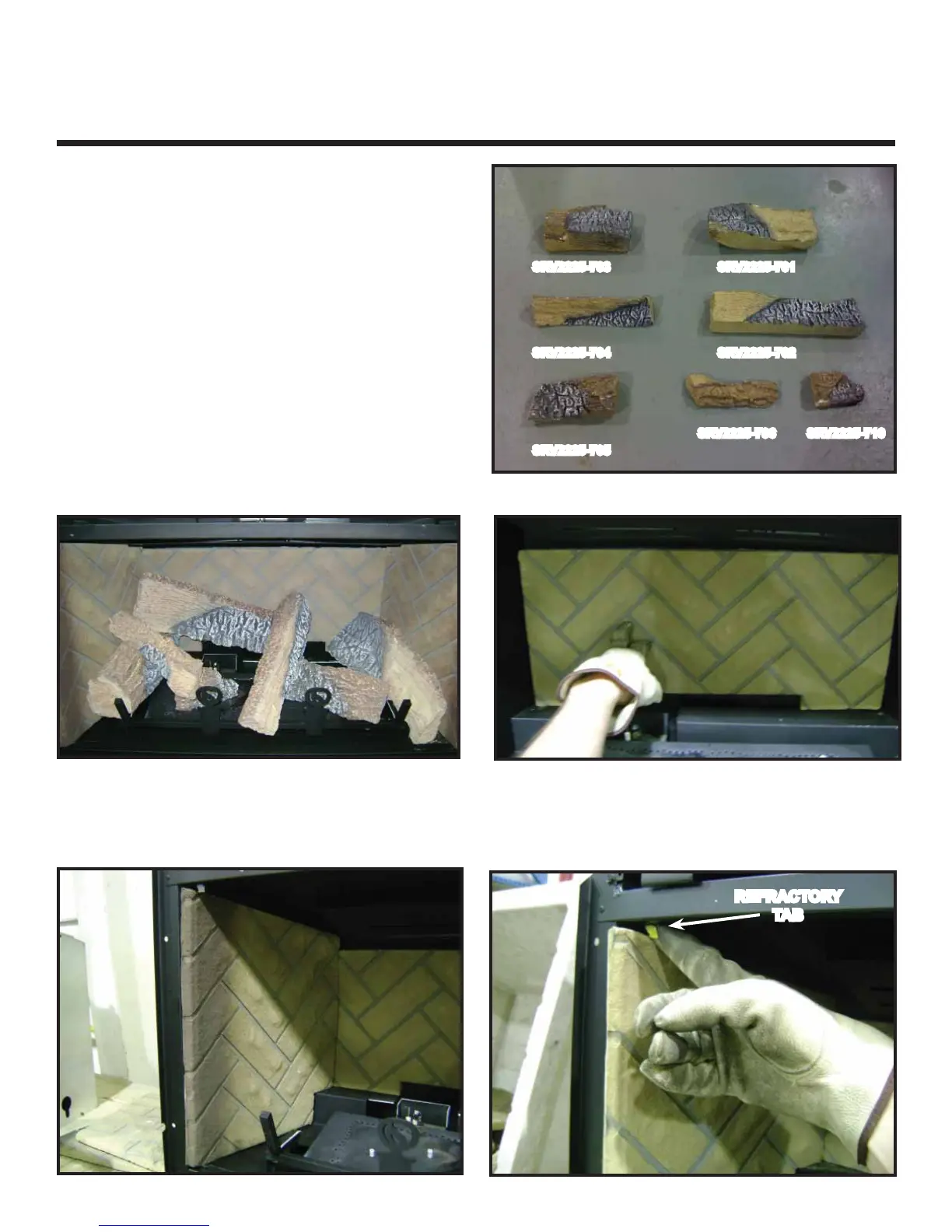

G. Install the Log Assembly
Log Set Assembly: LOGS-QFI35
Models: QFI35
Install back refractory by placing it against the back of the fi rebox. The back refractory must be held in the upright position
until the side refractory is installed. Install the left side refractory as shown in Figure 3. Bend the refractory tab down as
shown in Figure 4. Repeat this step for the right refractory panel.
Figure 1. Refractory and Logs Installed
Figure 2. Install Back Refractory
Figure 3. Install Side Refractory
Figure 4. Bend Refractory Tab
REFRACTORY
TAB
CAUTION: Logs are fragile, handle with care.
SRV2225-703
SRV2225-704
SRV2225-705
SRV2225-701
SRV2225-702
SRV2225-710SRV2225-706
