Quadra-Fire • QV36DB-A • 2018-900 Rev. F • 12/07 15
HORIZONTAL VENTING
Kit No. H Max. Run
DVP-TRAP 24" (610 mm)

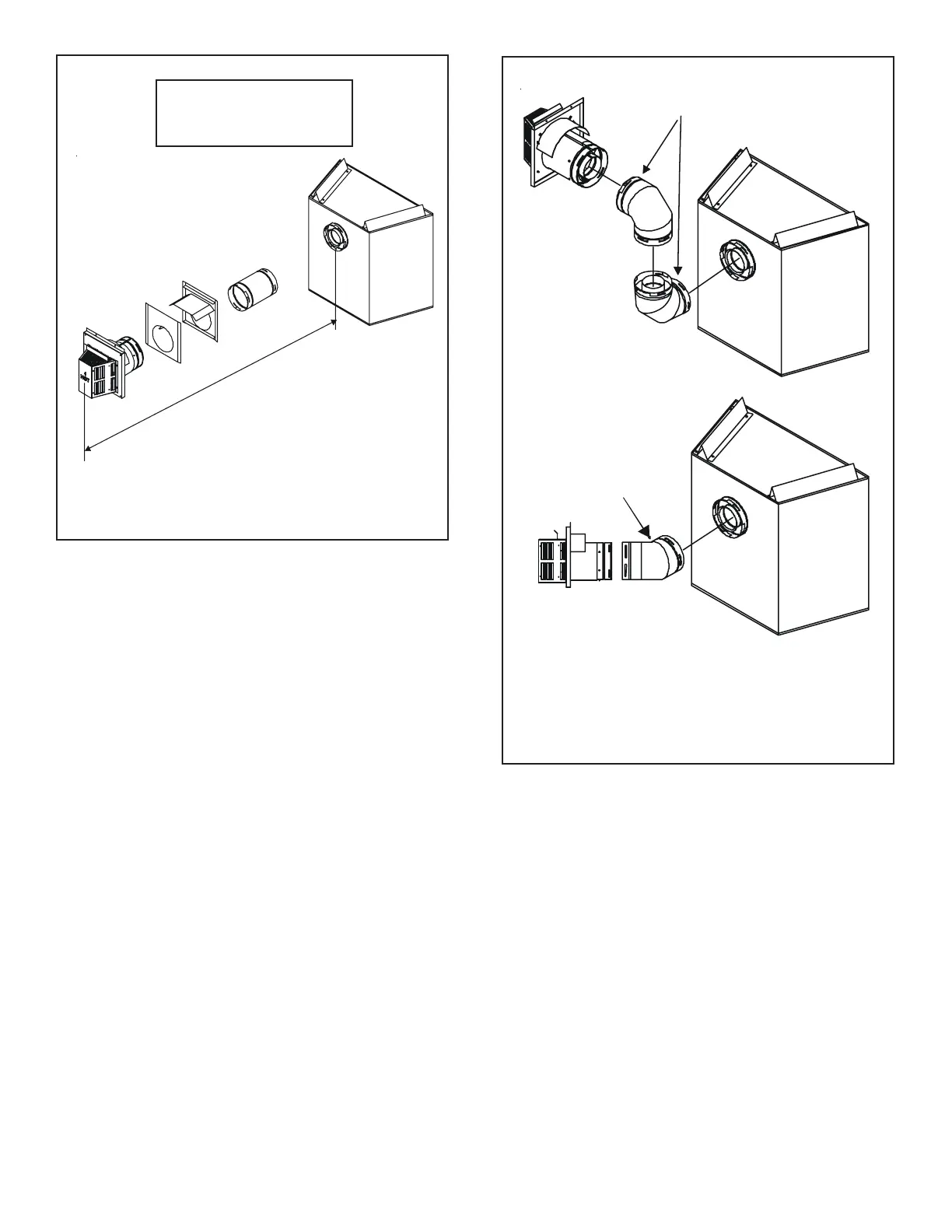

Figure 10. Corner Installation
NOTE: This model is tested and approved to use
45° elbows in corner installations. However, 90°
elbows will result in better performance.
Figure 9. Horizontal Installation
90-DEGREE
ELBOWS
45-DEGREE
ELBOW
H
To Next Page
