RC -I
Amplifier operation
1 SELECT button
2 ON / OFF button
3 MUTE
4 Volume - minus
5 Volume - plus
6 Left balance
7 Balance plus
8 Signal source downwards
9 Signal source upwards
14 Level setting (for each
input using buttons 4 & 5)
15 Display brilliance
CD operation
1 SELECT button
2 ON / OFF button
3 MUTE
4 Stop
5 Repeat / Pause
6 Search backwards
7 Search forwards
8 Scan backward through
the titles
9 Scan forward through
the titles
10 File down
11 File forward
12 Repeat (title / all)
13 Shuffle
15 Display brilliance
16 Unassigned (optional)
Repeat
RL
Select
AMP
CD
Prog.
Opt.
Random
Display
Select
AMP
CD
Select
AMP
CD
1
2
3
4
6
8
10
12
15
5
7
9
11
13
14
16
RC-II
RC 2 REMOTE CONTROL OPTIONAL
The AURUM amplifiers A8 / P8 / M8 / A5 / A3 and the AURUM CD players C8 / C3 / C5 / C5 DA may be
individually controlled using the RC-2 System Remote Control.
Important note:
If you want to remotely control the amplifier or CD player functions, you must use the SELECT button to
select the relevant operating mode beforehand.

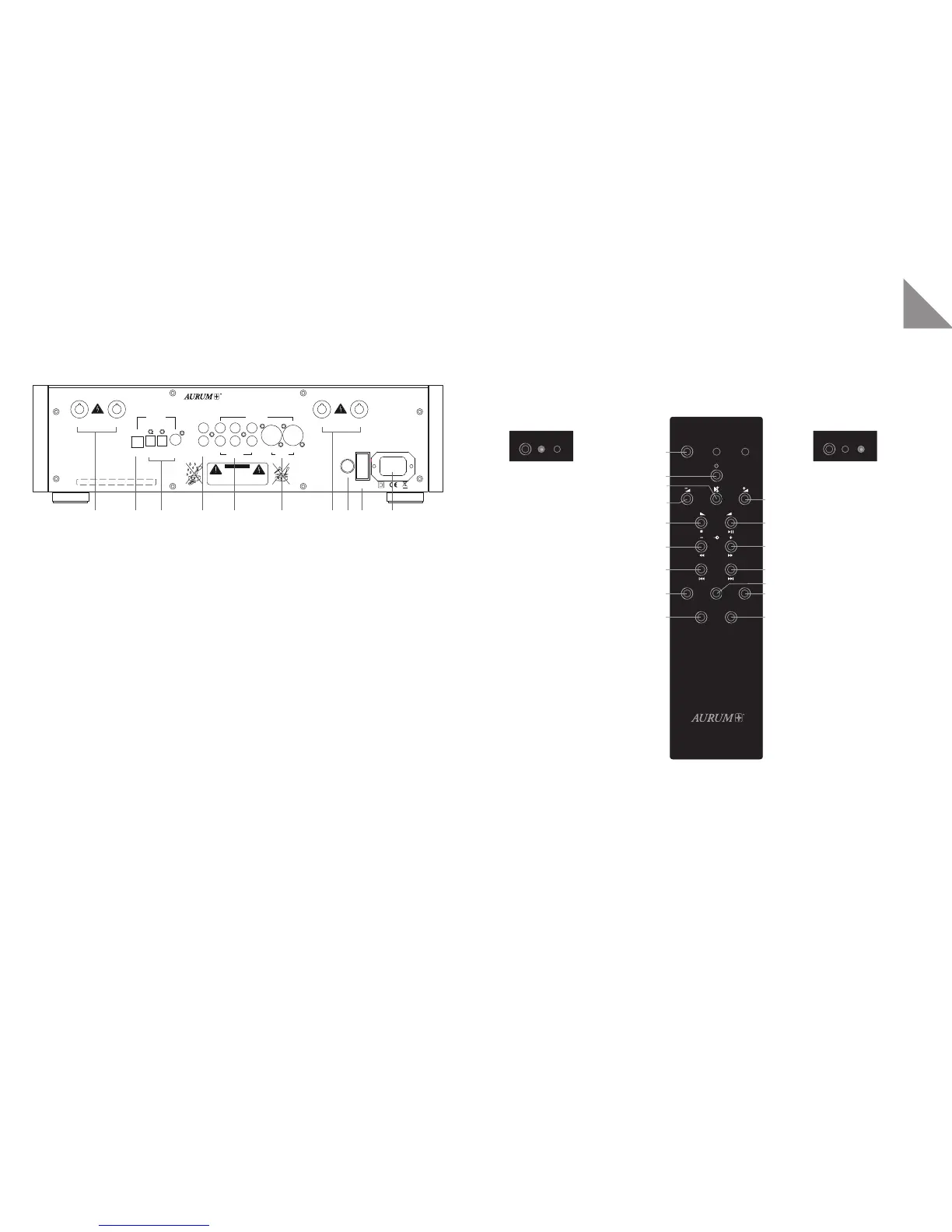

CONNECTIONS ON THE BACK OF THE UNIT
1 Right speaker output
2 USB port for connecting to a computer. Your computer installs the necessary driver the first time it is
connected.
3 TosLink SPDIF jack for digital signals
4 Pre OUT
5 RCA 1-3 stereo jacks for analogue signals
6 XLR stereo jack for symmetrical signals
7 Left speaker output
8 Voltage selection switch (115V/230V)
9 Power switch (completely disconnects the set from the power supply)
10 Power socket
