2.4 SAFETY DEVICES AND PROTECTIONS

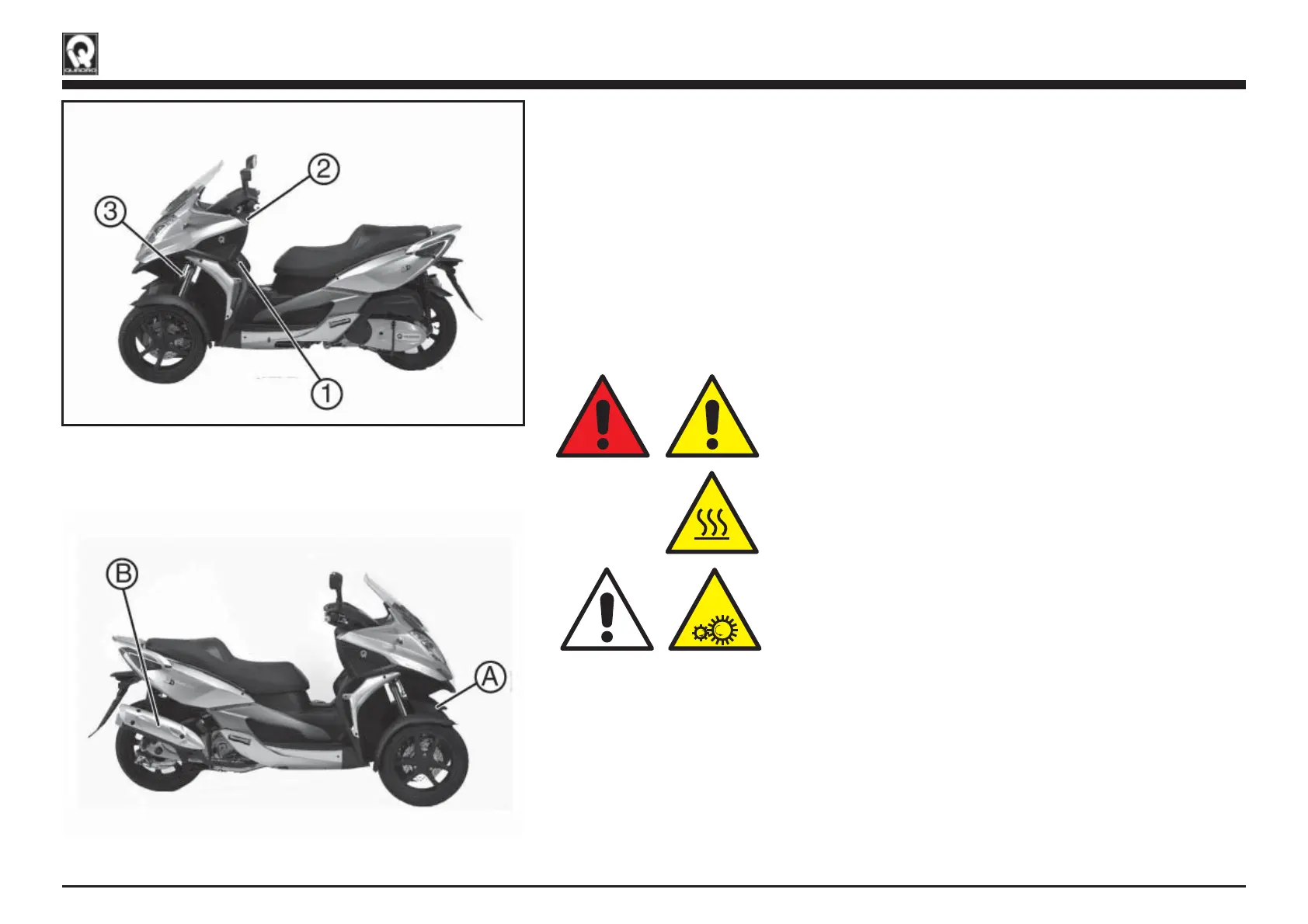

The vehicle is fitted with the following safety devices (Fig. 01):
1 - Parking brake lever
2 - Steering lock
3 - Hydraulic Tilting System
Fig. 02
QSI0011
The vehicle is fitted with the following protections (Fig. 02):
A: Hydraulic tilting system cylinder cover.
B - Muffler heat shield.
Therefore, it is strictly forbidden to modify or
remove any protection from the vehicle or its
warning labels and plates.
2.5 RESIDUAL RISKS
The list of residual risks resulting from protections is shown in the
illustration Fig. 02 and marked with hazard simbols.
