66
Fig. 01
QSI0052
Fig. 02
QSI0053

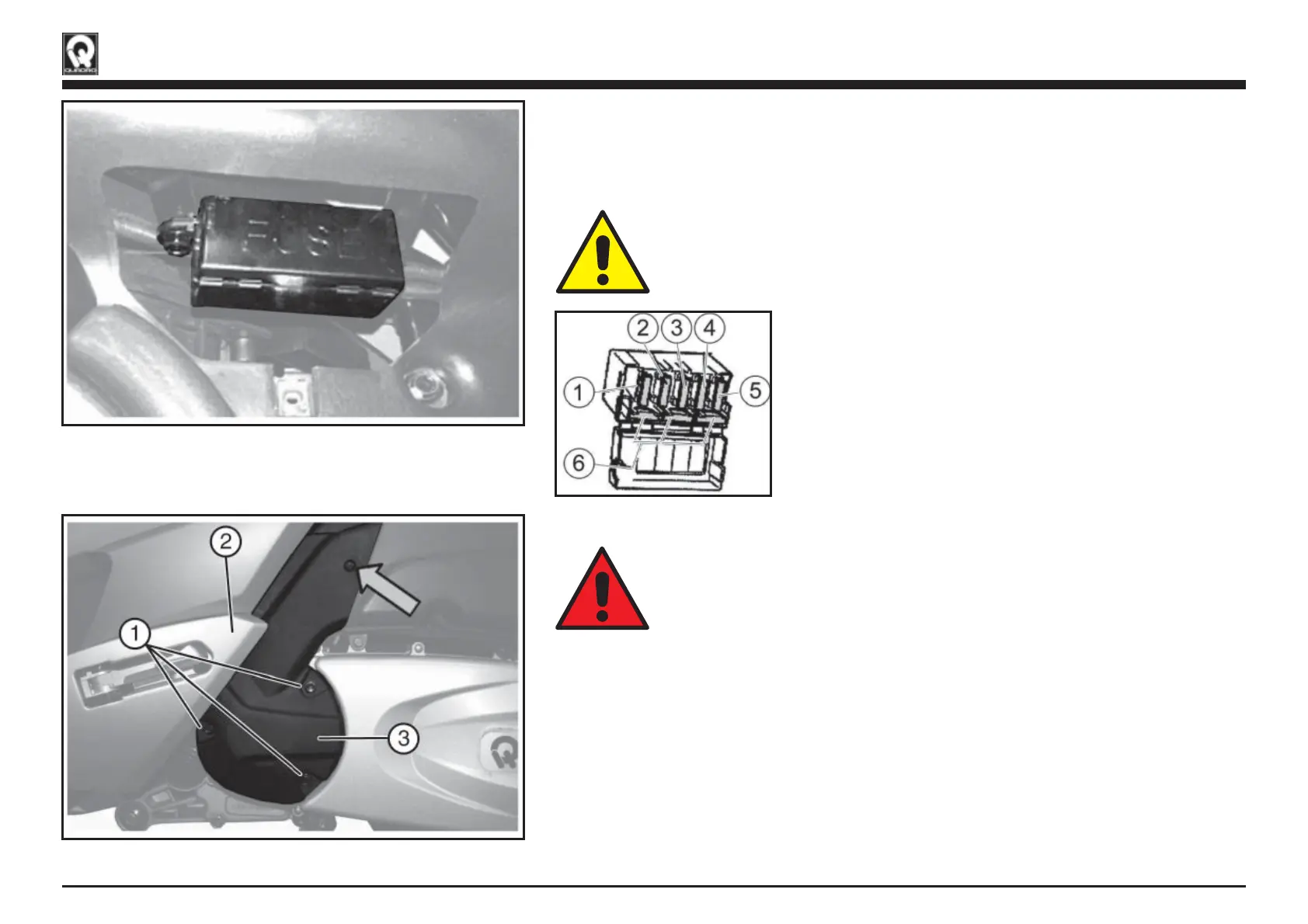

6.9 FUSE BOX
To allow access to the fuse box, turn the ignition switch to the seat ope-
ning position, lift the seat and remove fuse box cover by removing screw
located below. Open fuse box lid.
Before replacing a blown fuse, you must ensure that the
problem has been fixed and must not attempt to fix the
fuse. Only use fuses of the specified rating.
QSI0054
1. 30A Battery charger circuit
2. 15A Main
3. 10A Lights
4. 10A EFI
5. 5A Ignition coil
6. Spare
6.10 AIRBOX
Let the engine cool down before carrying out any main-
tenance operation.
Your vehicle’s airbox must be cleaned in line with the scheduled main-
tenance chart.
REMOVAL
1. Remove the three fixing
screws «1».
2. Remove the screw shown in the
figure.
3. Release the passenger foot-peg
and remove the screw.
4. Pull the cover «2» outwards in
order to ease the removal of the
duct
5. Remove the duct «3».
(Fig. 01)
(Fig. 02)
MAINTENANCE VEHICLE
