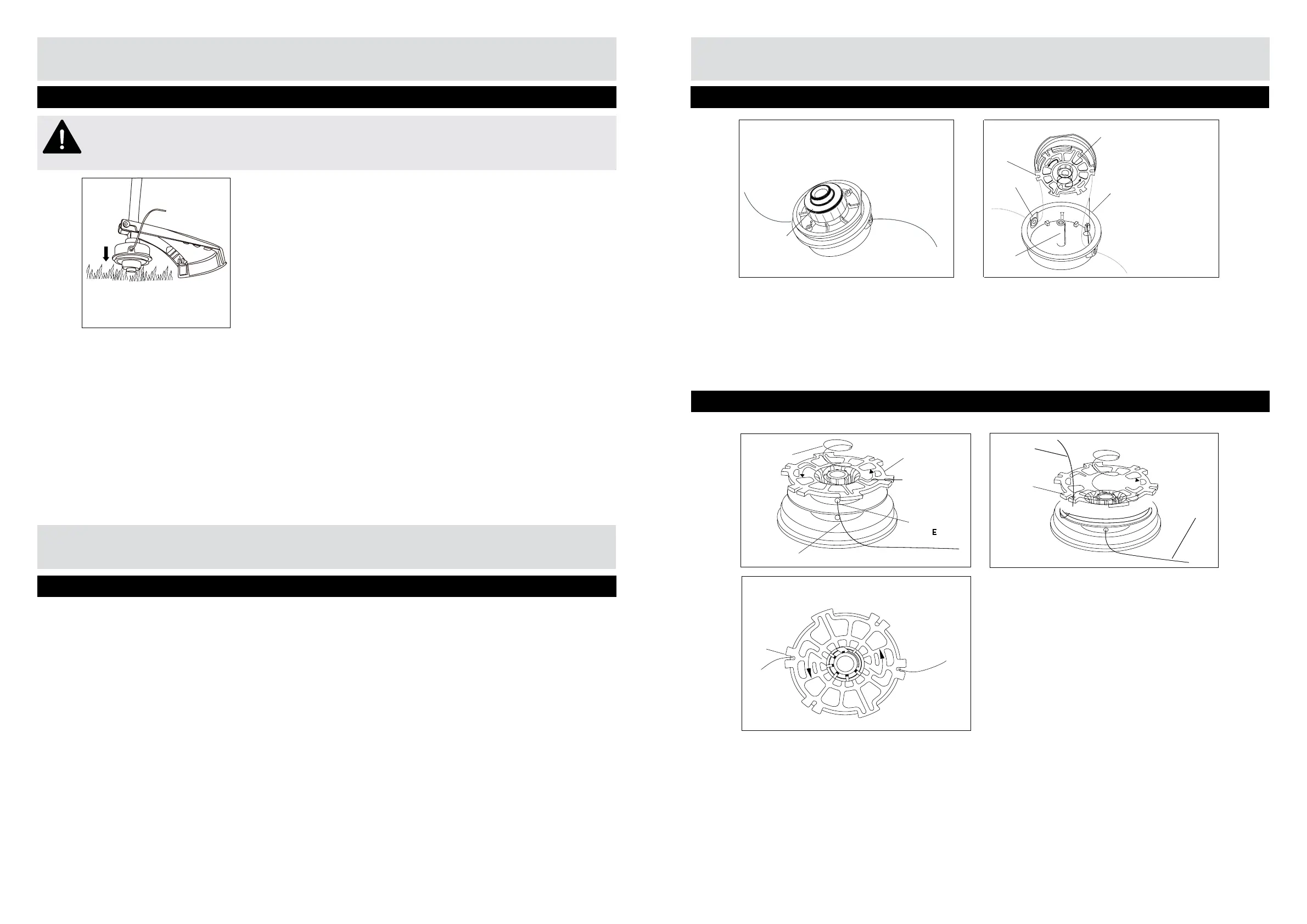

Operating the Grass Trimmer How to Replace the Spool/Spool Line
Step 2 - Replacing the spool line in the spool
Step 1 - Removing the spoolStep 4 - Extending spool line while trimming
1) While the line spool is running at full speed, tap its underside briey against the ground.
2) If the spool lines are still not sufciently extended, tap the underside against the ground again.
3) If the line has already become too short, it will no longer be extended by pressing the
underside against the ground. You must pull it out from the line spool by hand.
4) Switch off the motor.
5) Lay the machine on the ground.
6) Push by hand on the underside of the line spool and pull both lines out until they are
somewhat longer than the edge of the protective bonnet. The lines are trimmed to the correct
length by the line trimming blade located on the grass trimmer guard.
WARNING! Ensure there is mixed fuel in tank with the correct ratio of fuel to oil. Make sure all
guards and handles are properly and securely attached.
Stopping
Release the throttle trigger and set the switch to STOP (0).
Stopping
– Twist off (clockwise to loosen) and remove the cover of the spool.
– Remove the spool.
Do not lose the spring!
SPOOL COVER
SPRING
STRING HEAD
EYELETS
– Completely remove the remains of the spool.
– Make a nick in the middle of the new line, and hook it into the slot in the spool.
– Wind on a spool line on each side of the spool in the direction of the arrow.
G
SPOOL
ANCHOR
HOLE
ARROWS ON
SPOOL
LINE
SLOT
SECOND LINE
FIRST LINE
SLOT
ARROWS ON
SPOOL
