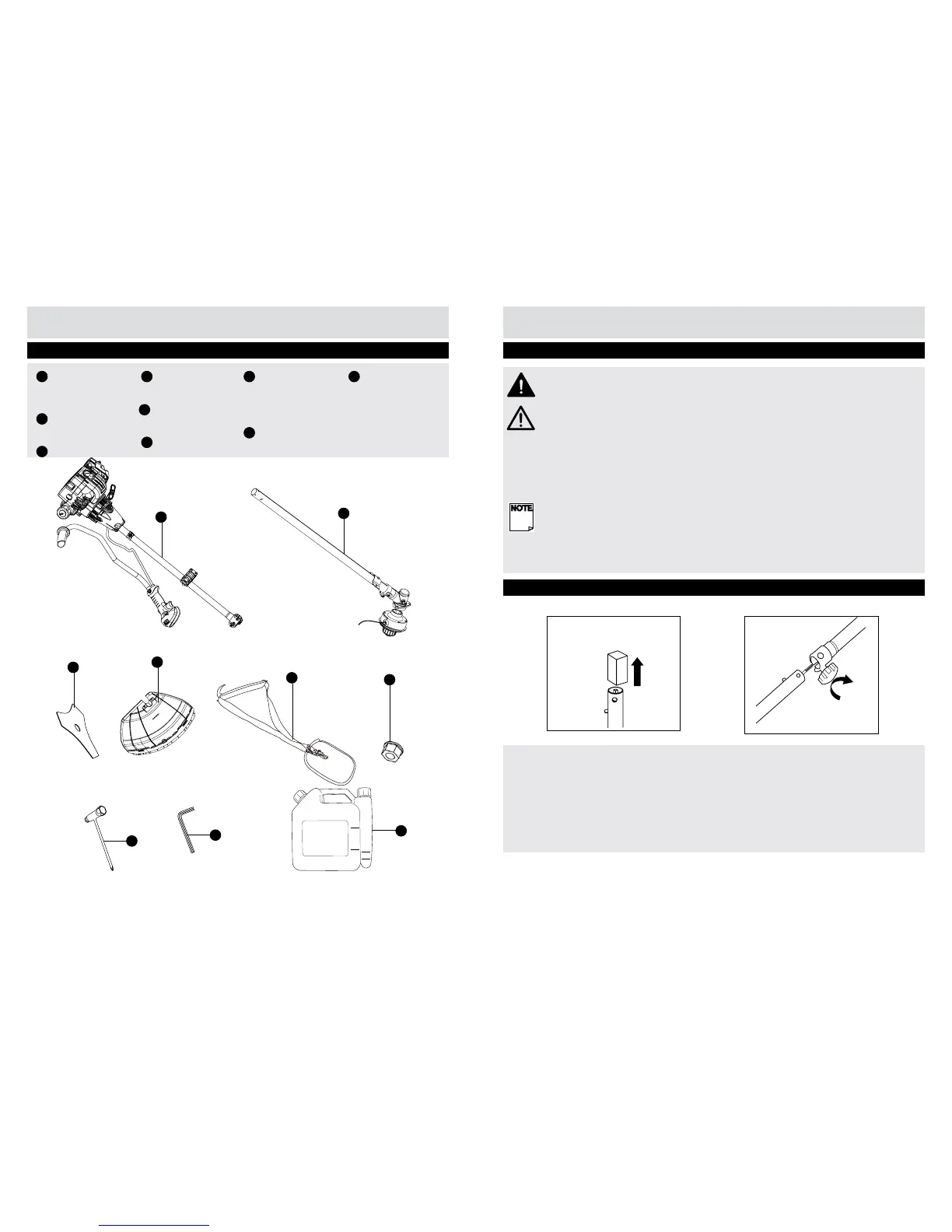

In the Box
Parts
Tools
A
1
WARNING! Always take care when removing the packaging to prevent damage to you or to the
brush cutter.
IMPORTANT! Before assembling the brush cutter, check all the parts indicated in the manual
are in the box. Inspect all the parts for signs of damage. Do not assemble the brush cutter if you
observe any damaged components.
1. Remove all parts of the brush cutter from the box and carefully remove all packaging. Take
care not to lose any instructions which may be attached to the tool, these provide important
information which will be required while assembling the brush cutter / grass trimmer.
2. Keep all packaging until the brush cutter is fully assembled and has been operated successfully.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
1a Take off the protection cap from the lower shaft. Push in the button located on the upper shaft.
1b Align the button with the guide recess on the upper shaft and slide the two shafts together.
Rotate the drive shaft until the button locks into the positioning hole. Tighten the knob on the
coupler, securing the two shafts together.
Preparing to assemble the brush cutter / grass trimmer
Assembly
Step 1
A
Engine body with
upper shaft and U
handle
B
Trimmer head with
lower shaft
C
Blade
D
Safety guard+bolt
E
Safety strap- with
leg protector plate
F
Nut
1
Plug wrench &
philips screwdriver
1pc
2
Hex wrench 2pc
3
Mixing bottle
B
D
1a 1b
40:1
5
10
5
10
2
E
3
C
F
