Quality Craft NDF-65NB-1 User Manual

6
ASSEMBLY INSTRUCTIONS
Step 2: Attach the LEFT SMALL PANEL (H)
to the LEFT FRONT PANEL(F) with 2 KD
SCREWS. Attach the RIGHT SMALL PANEL
(J) to the RIGHT FRONT PANEL(G) with 2 KD
SCREWS. See fig. B
Step 3: Attach the LEFT SIDE PANEL (K) to the
LEFT FRONT PANEL (F) with 3 KD SCREWS.
Attach the RIGHT SIDE PANEL (L) to the
RIGHT FRONT PANEL (G) with 3 KD SCREWS.
See fig. C
Step 4: Attach the LEFT (K, F, H) and RIGHT
(L, G, J) SIDE PANELS to the BASE PANEL (B)
using 4 KD SCREWS (2 screws on each side).
See Fig. D
Step 5: Place the LOWER FRONT PANEL (E) in
between the lower sections of LEFT & RIGHT
SMALL PANEL (H and J) and attach with 2 KD
SCREWS (1 screw each side). See Fig. E
Step 6: Place the UPPER FRONT PANEL (D) in
between the upper section of LEFT & RIGHT
FRONT PANELS (F and G) and attach with
4 KD SCREWS (2 screws each side). See Fig. F

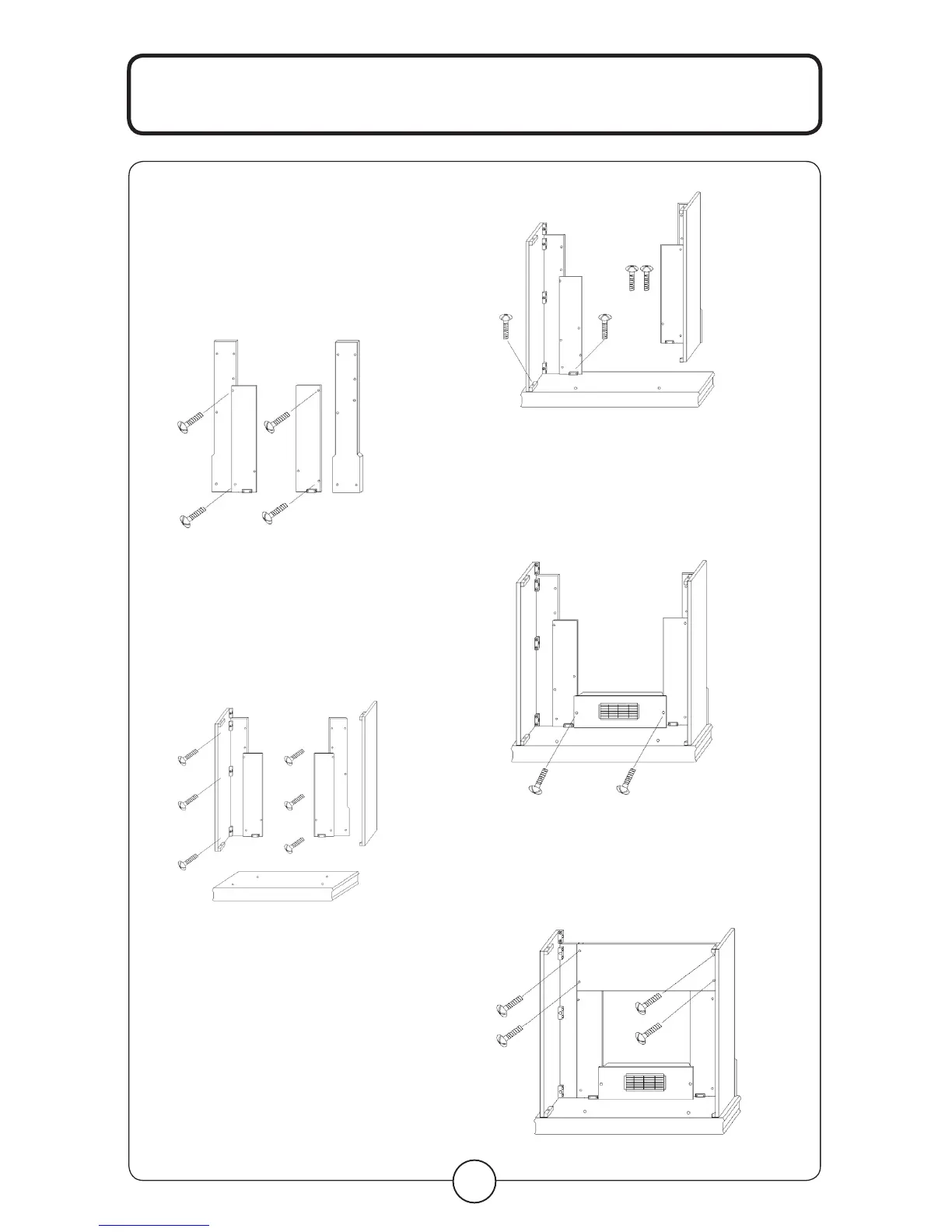

fig. B
fig. C
fig. D
fig. E
fig. F
