ASSEMBLY INSTRUCTIONS

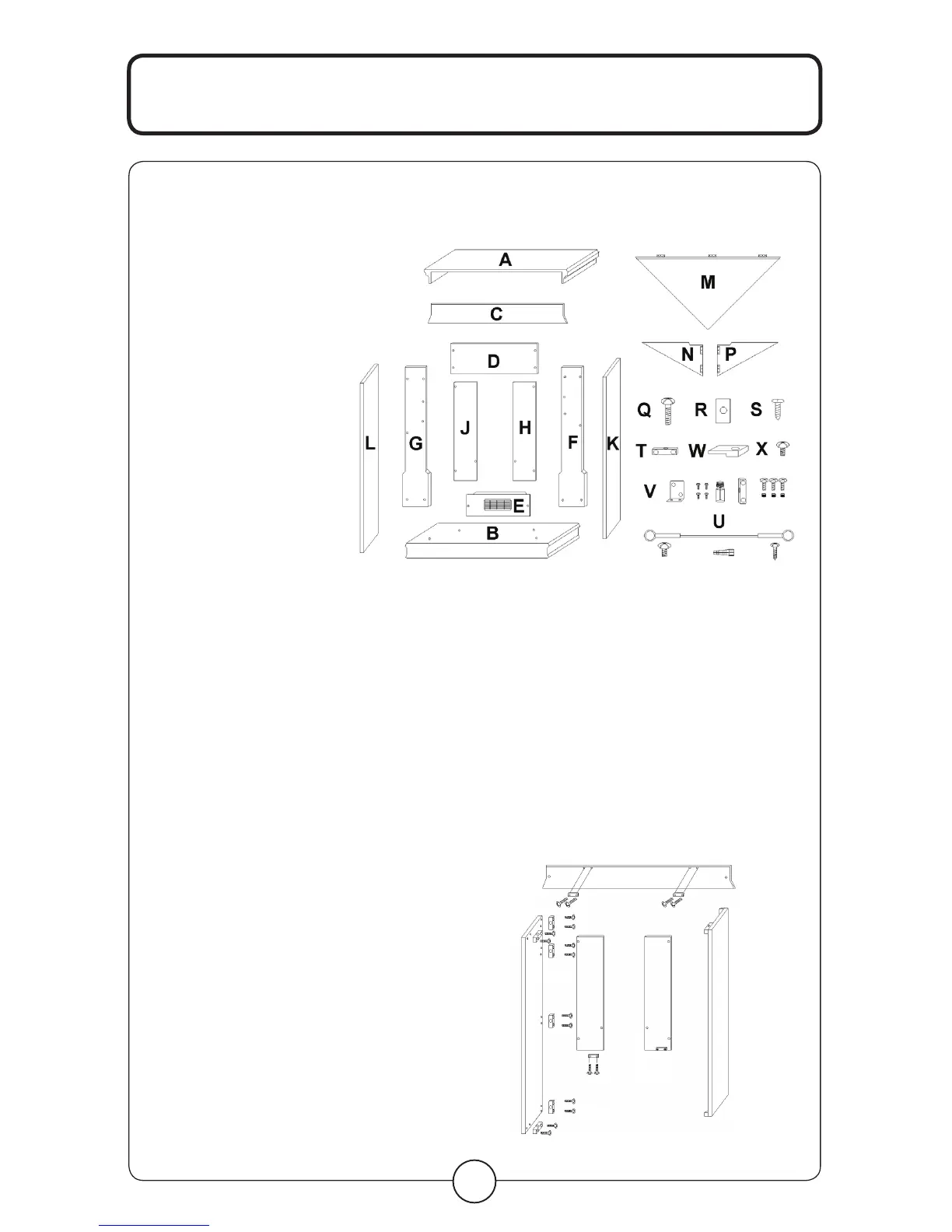

PARTS LIST:
A) Top panel 1
B) Base panel 1
C) Decorative bar 1
D) Upper-front panel 1
E) Lower-front panel 1
F) Left front panel 1
G) Right front panel 1
H) Left small panel 1
J) Right small panel 1
K) Left side panel 1
L) Right side panel 1
M) Drop leaf 1
N) Left Triangle support 1
P) Right Triangle support 1
Fireplace insert 1
Q) KD screws 60
R) Mounting clips 3
S) Small screws 6
T) Plastic connectors 16
U) WALL ANCHOR SAFETY CABLE
Wall anchor 1
Screw for wall anchor 1
Screw for mantle 1
Safety cable 1
V) SELF REPAIR SET
Touch-up repair paint (bottle)
L shape bracket 8
Screws for L shape 32
Plastic connector 1
KD screws 3
KD nuts 3
W) Mounting bracket 2
X) Short KD screws 3
fig. A
TOOL REQUIRED: PHILLIPS HEAD SCREWDRIVER
MANTLE ASSEMBLY:
CAUTION: Place a piece of cardboard or
protective sheet on the floor in order to avoid
scratching the decorative surface of your
mantle during assembly.
Please DO NOT fully tighten the KD screws
until all panels are assembled.
NOTE: If the KD screw(s) do not fit during
assembly, loosen the 2 screws to adjust
the Plastic Connector until the PANEL/KD
SCREWS are able to be installed. Tighten all
KD screws once all panels are assembled.
Step 1: Attach all PLASTIC CONNECTOR (T) to
the PANELS (C, H, J, K and L) as shown in Fig.
A. (2pcs KD SCREWS for each CONNECTOR)
To Next Page
