7

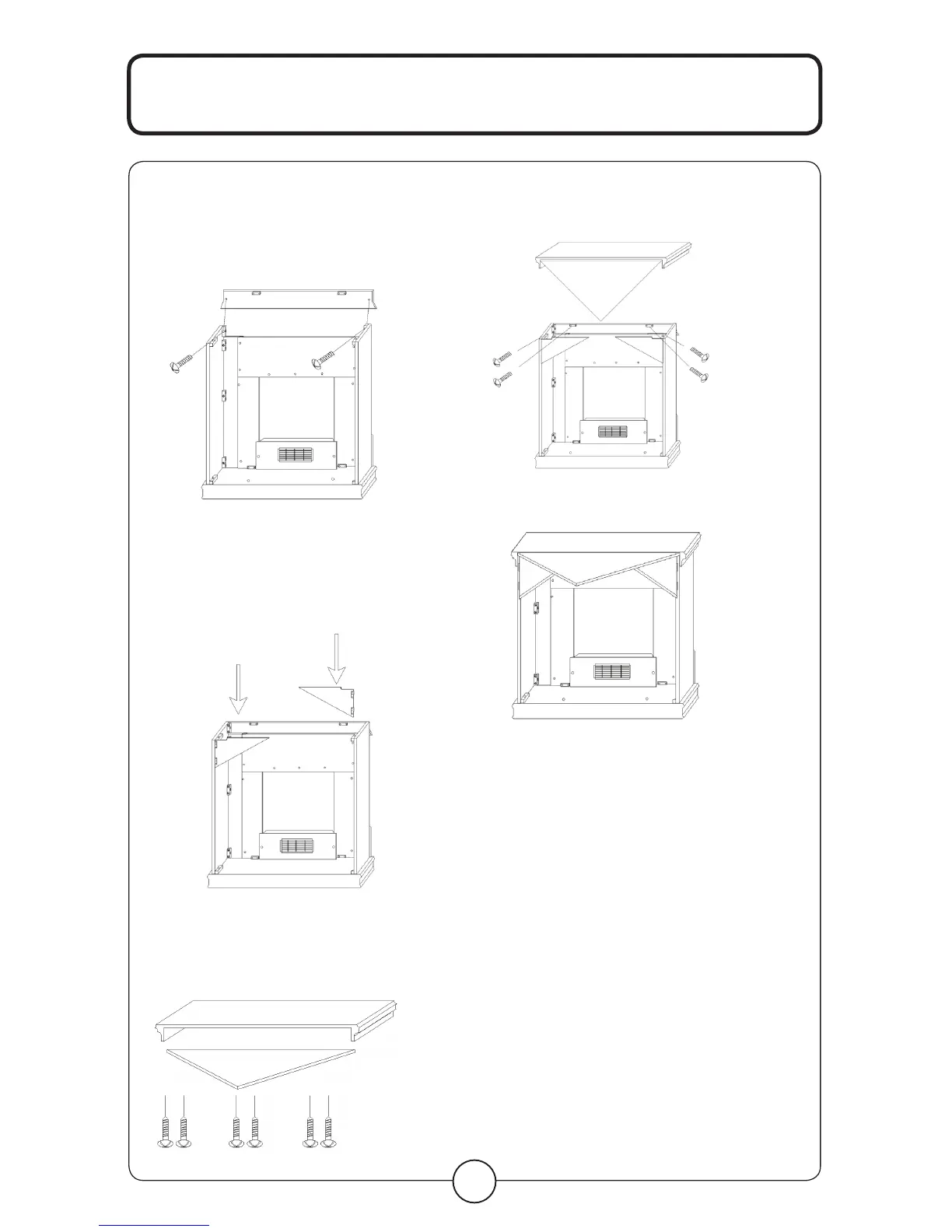

Step 7: Attach the DECORATIVE BAR (C) over
the UPPER FRONT PANEL (D) and attach
with 2 KD SCREWS (1 screws each side).
See Fig. G
Step 8: Attach the LEFT TRIANGLE SUP-
PORT (N) on the LEFT SIDE PANEL (K).
Attach the RIGHT TRIANGLE SUPPORT (P)
on the RIGHT SIDE PANEL (L). See Fig. H
Step 9: Attach the DROP LEAF (M) on the
TOP PANEL (A) and attach with 6 SMALL
SCREWS. See Fig. I
Step 10: Install the TOP PANEL (A) to the unit
as shown with 4 KD SCREWS. See Fig. J
Step 11: Tighten all SCREWS. Fig. K
FIREPLACE INSERT
INSTALLATION:
The fireplace insert can be installed after the
mantle has been fully assembled.
WARNING: Make sure the fireplace insert
controls are in the OFF position and the unit
is NOT plugged in.
Step 1: Place the INSERT on the floor, di-
rectly in front of the MANTLE. (The backs of
both the mantle and insert should be facing
the same direction.)
ASSEMBLY INSTRUCTIONS
fig. G
fig. H
fig. I
fig. J
fig. K
