QA402 User
Manual
13

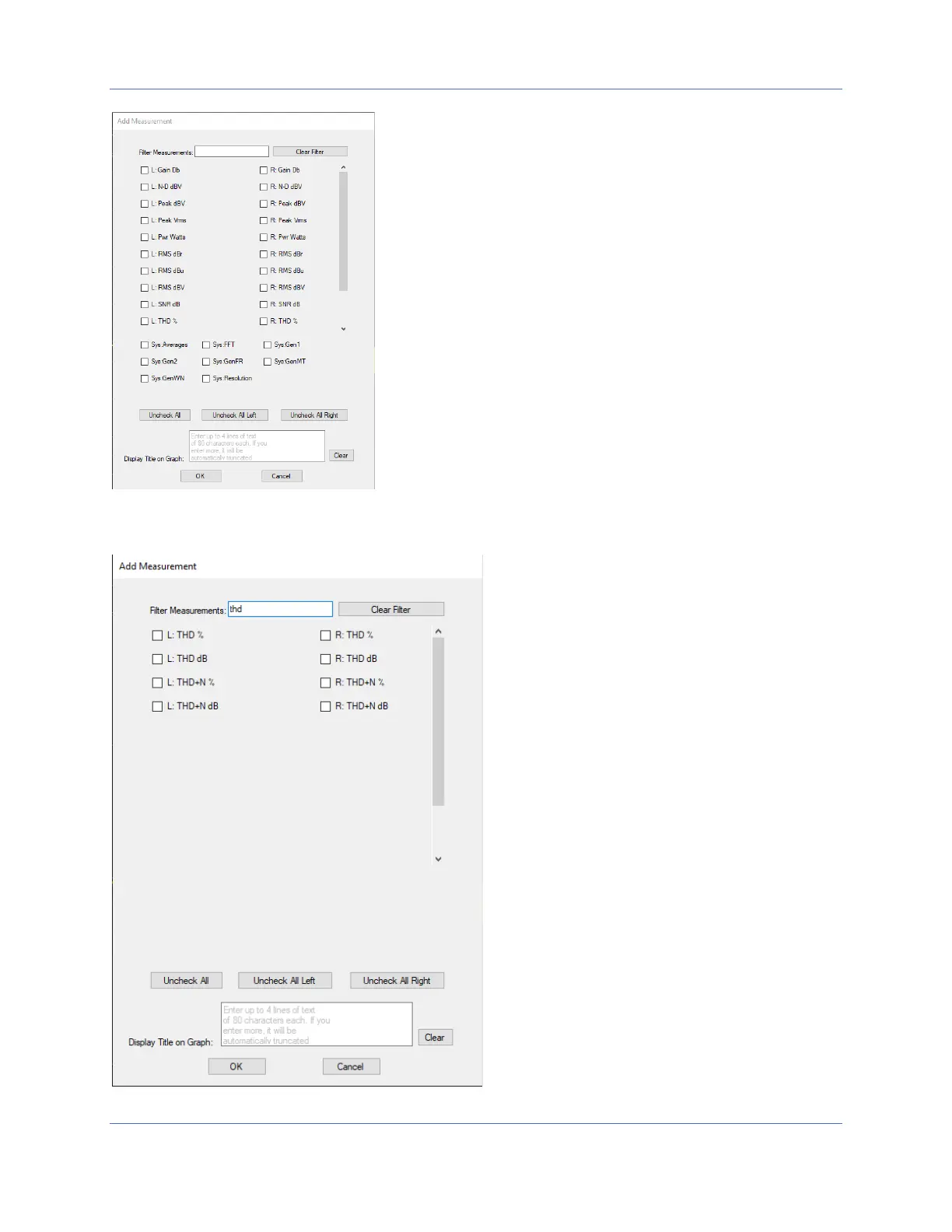

You can filter
on measurements
by
entering text in the Filter
Measuremen
ts dialog. For
example,
if
you enter
“thd” (case in
sensitive
) the test choic
es will coll
apse to the follo
wing:
12
14
