QUICK SETUP GUIDE
EverGreen Part Numbers: EVG00070, EVG00145, EVG00200
Version A | # DOC00140 | February 28, 2020
© 2020
9
Mount the Laser Head.
Use three M6 (or 1/4-20) socket-head cap screws to
secure the Laser Head to a flat mounting surface.
7

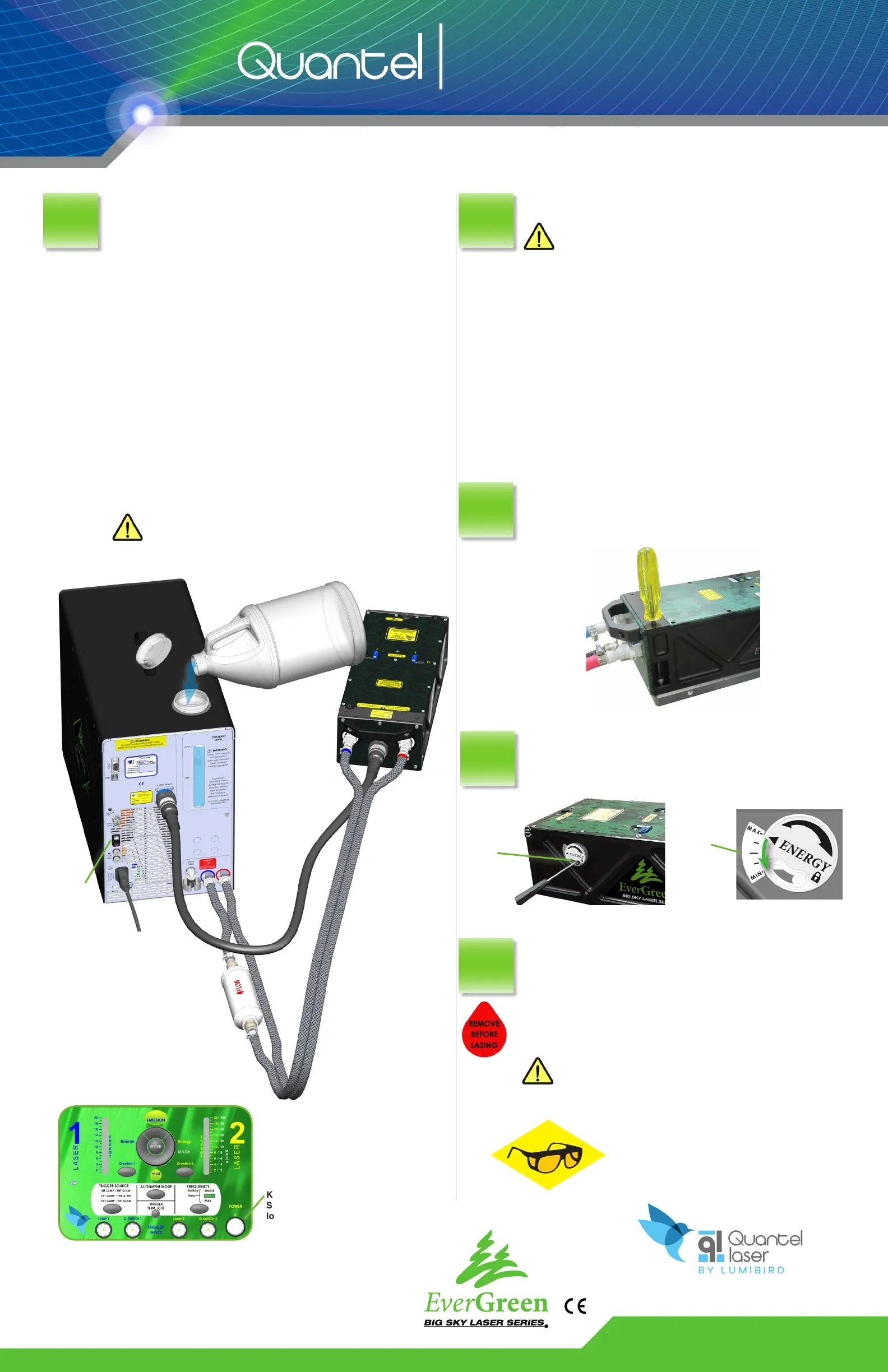

Circulate Coolant to Laser Head.
• Refill the coolant to reach the MAX line on the
coolant level window.
• Turn the ICE AC Mains power switch ON.
• Turn the Key Switch ON.
• The pump starts automatically and fills the
coolant lines which lowers the fluid level. Add
additional coolant as needed to refill the reservoir
to the MAX line.
• A float switch shuts off the pump when the fluid
level is too low. Press and hold the pump control
switch to continue operating the pump during filling.
• Cycle the power by turning the AC Mains switch
off and on several times to remove air bubbles
from the Laser Head.
• Add more coolant as needed to fill the reservoir to
the MAX line.
CAUTION: Do not overfill past the MAX line.
Coolant needs room to expand as system
warms up.
Purge the Laser Head Cavity
CAUTION: Ensure any air trapped inside the
Laser Head cavity is removed or damage to
the Laser Head will result.
• To remove trapped air from the cavity and coolant
tubes, tilt the Laser Head vertically while the pump
is circulating the coolant for 10 seconds.
• Turn the Key Switch off and then on again to
“cycle” (shut off and then operate) the pump.
• Examine the coolant tubes for air bubbles.
• Continue to tilt the Laser Head during pump
cycling until no air bubbles remain (about 2
minutes).
• When no more air bubbles are present, the Laser
Head is ready to be attached to your mounting
surface.
8
AC Mains
power
switch
Key
Switch
location
ICE FRONT PANEL
11
Ready to Operate.
Your system is now ready to operate.
• Remove the protective sticker from the laser
aperture before lasing.
• Read the user manual for important safety and
operation details.
CAUTION: Familiarize yourself with the laser
safety procedures. Follow safety procedures
at all times.
Everyone in the room must be
wearing protective eye wear
during operation.
2
10
Energy Attenuation.
The variable attenuator may be used to reduce
transmission of laser output energy.
Use a 2.5 mm
ball-driver/
hex key to
loosen/tighten
fastener
Adjust to
reduce energy
transmission
