Actuators
There are the reset switch to factory settings.
The device condition is shown by inboard LED indicators. They are on after the
power is supplied to the device and the integral test is run.
Device power supply
ScanDoc Compact gets the power supply from the car diagnostic outlet OBD-II.
Possible Reasons for Power Supply Absence:
• The adapter is put in to the car diagnostic socket incorrectly.
• The adapter output connectors are damaged.
• The car wiring before the diagnostic outlet is faulty.
9
QUANTEX GmbH 2014

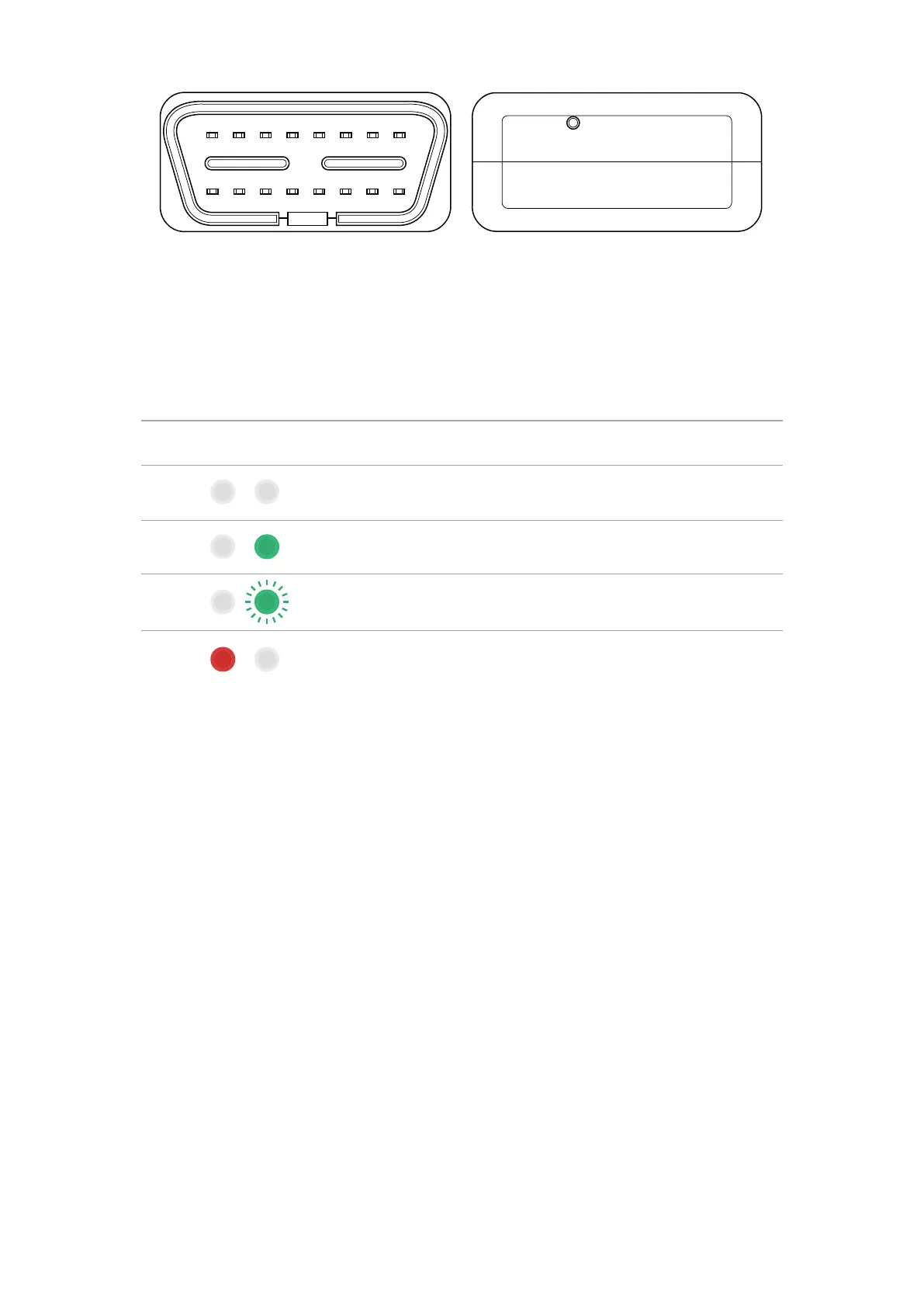

Connector view. End view.
Indicators (light) condition Description
The device is switched off.
The PC is connected to Wi-Fi.
The data interchange is in process.
When it is on:
Integral hardware- based test is run. The red indicator
should go off in a while after it’s been switched on.
• If the indicator is dull, then there are not any pro-
grams in the adapter or the program is corrupted. To
restore it, one should activate the device.
• If the indicator ashes on and off and doesn’t go off,
then the unit is out of service. Contact your seller.
When operated on:
• Emergency activity. Don’t switch the power off till the
activity is nished.
