Quantum Audio QZA4400.4 User Manual

5
6

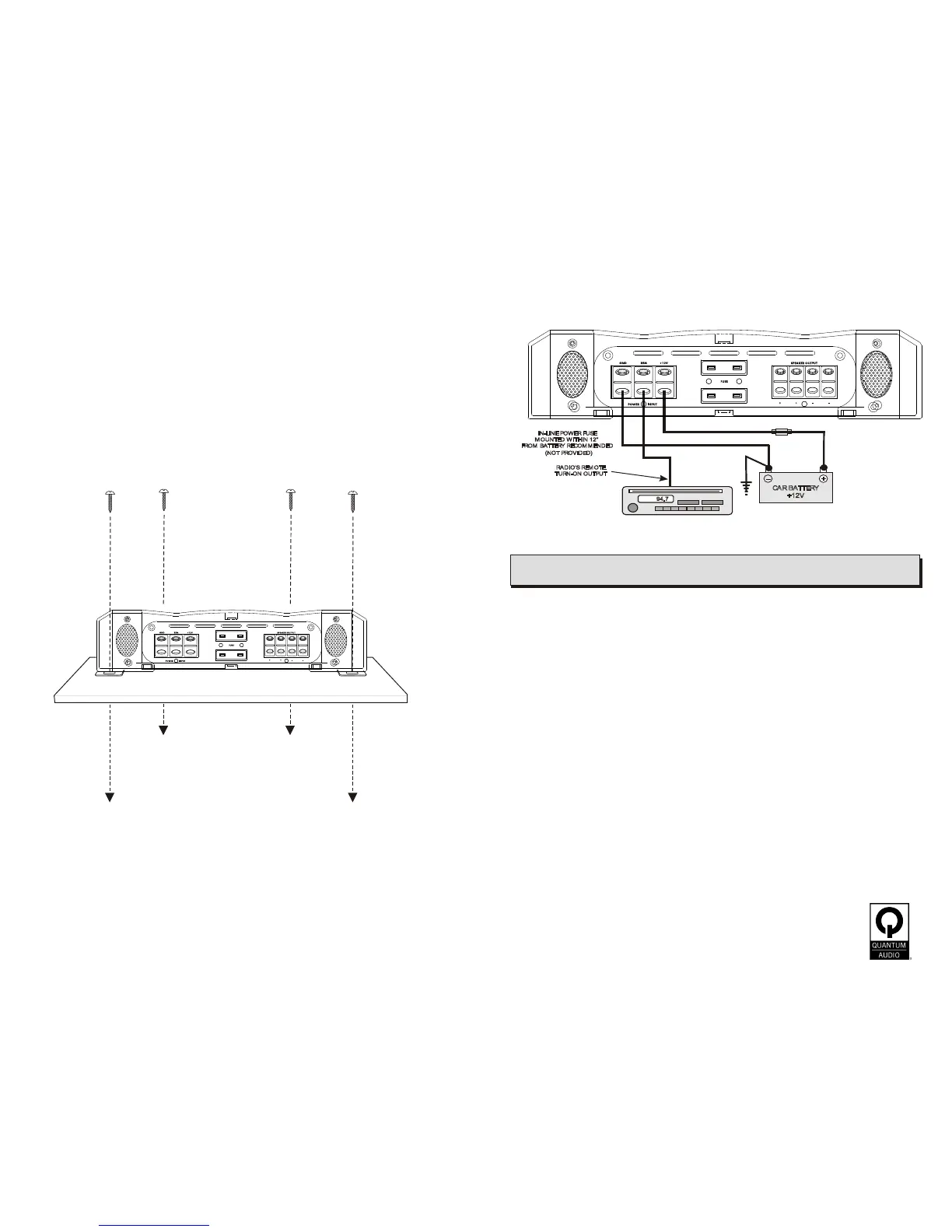

Before you start the installation, it will be necessary to find a mounting location for the
amplifier. Find a location in which the amplifier will receive adequate ventilation in order
to dissipate the heat it develops during operation. Two popular mounting locations are in
the trunk or under the seat.
Select the location in which you wish to mount the amplifier. Use caution when mounting
amplifier, there are many wires, gas lines, vacuum lines, brake lines as well as a gas tank
in the automobile. Make sure you know where they are when mounting the amplifier to
avoid puncturing lines, shorting wires or drilling holes in the gas tank. Once you are
ready, use a pencil to mark the mounting holes in the bottom panel. After you have
marked the locations of the holes move amplifier out of the way and drill small starter
holes to make the tapping screws easier to install. Use provided screws to tighten down
the amplifie
r .
Connect The Amplifier To The Car's Battery
At times, the amplifier will need to draw large levels of current that cannot be provided by
any circuit in the car's fuse box. We recommended using a 4 to 8 gauge power wire for
your connections depending on the amplifier and length of the wire. Strip one end of the
wire to connect to the terminal on the amplifier marked “+12V”. Loosen screw terminal
and connect bare wire and tighten. Use caution to make sure no stray wire strands come
in contact with surrounding terminals causing short circuits. Run the wire directly to the
positive terminal of the car's battery. Make sure to use an in-line fuse within 12” of the
car's battery to protect the electrical system and amplifier against short circuits and/or
power surges.
Connect The Ground Terminal Of The Amplifier To The Car's Chassis
For the ground connection, use a 4 to 8 gauge wire (black) to connect to the terminal
marked “ground” and then connect it to the car's chassis. Try to keep the length of the
cable as short as possible, preferably less than 6". Also make sure that the point on the
car where the connection is to be
made is free of paint and dirt.
Connect The Remote Terminal Of The Amplifier To A Switchable +12V Source
This connection allows the amplifier to be turned on and off with the power control of the
radio. If the radio has a REMOTE output terminal, connect it to the amplifier's terminal
marked “remote” (using a 16 gauge wire or heavier). Now when the radio is turned on,
the amplifier will automatically turn on. This connection can also be made to the radio’s
Power Antenna wire.
IMPORT ANT! Before making any connections, disconnect the car’s battery until the
installation is completed to avoid possible damage to the electrical system.
CAR BATTERY
+12V
-
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
(NOT PROVIDED)
94.7
RADIO'S REMOTE
TURN-ON OUTPUT
MOUNTING LOCATION POWER CONNECTIONS
